264
MIDSECTION

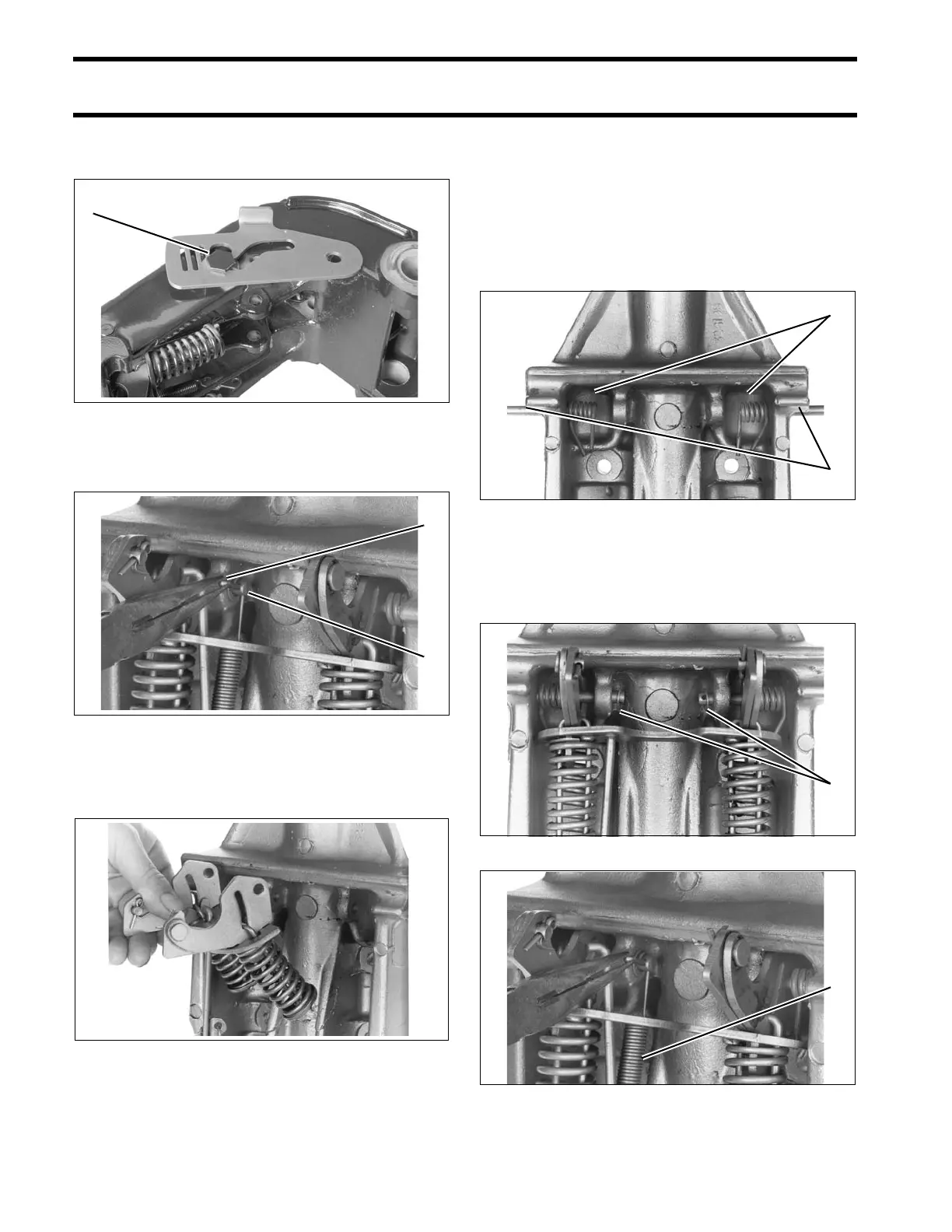

STERN BRACKET, 40 HP MANUAL TILT
Remove the starboard stop link retaining screw
and nut from the swivel bracket.
Remove the cotter pins from both reverse lock
pins. Remove the reverse lock pins and springs.
Remove the reverse lock assembly from the
swivel bracket.
Stern Bracket Assembly
Place the reverse lock springs in the swivel
bracket. Insert the reverse lock pins in the swivel
bracket and part way through the reverse lock
springs. Place the reverse lock assembly between
the springs. Push the pins through the springs and
the reverse lock assembly.
Install the washers on the reverse lock pins. Install
the link spring on the port pin. Install the two cotter
pins in the reverse lock pins.
1. Starboard stop link screw 002205
1. Cotter pin
2. Reverse lock pin
COA2979
COA2980
1
1
2
1. Reverse lock springs
2. Reverse lock pins
COA2981
1. Washers COA2982
1. Link spring COA2979
1
2
1
1
