350
TRIM AND TILT
TRIM AND TILT REPLACEMENT

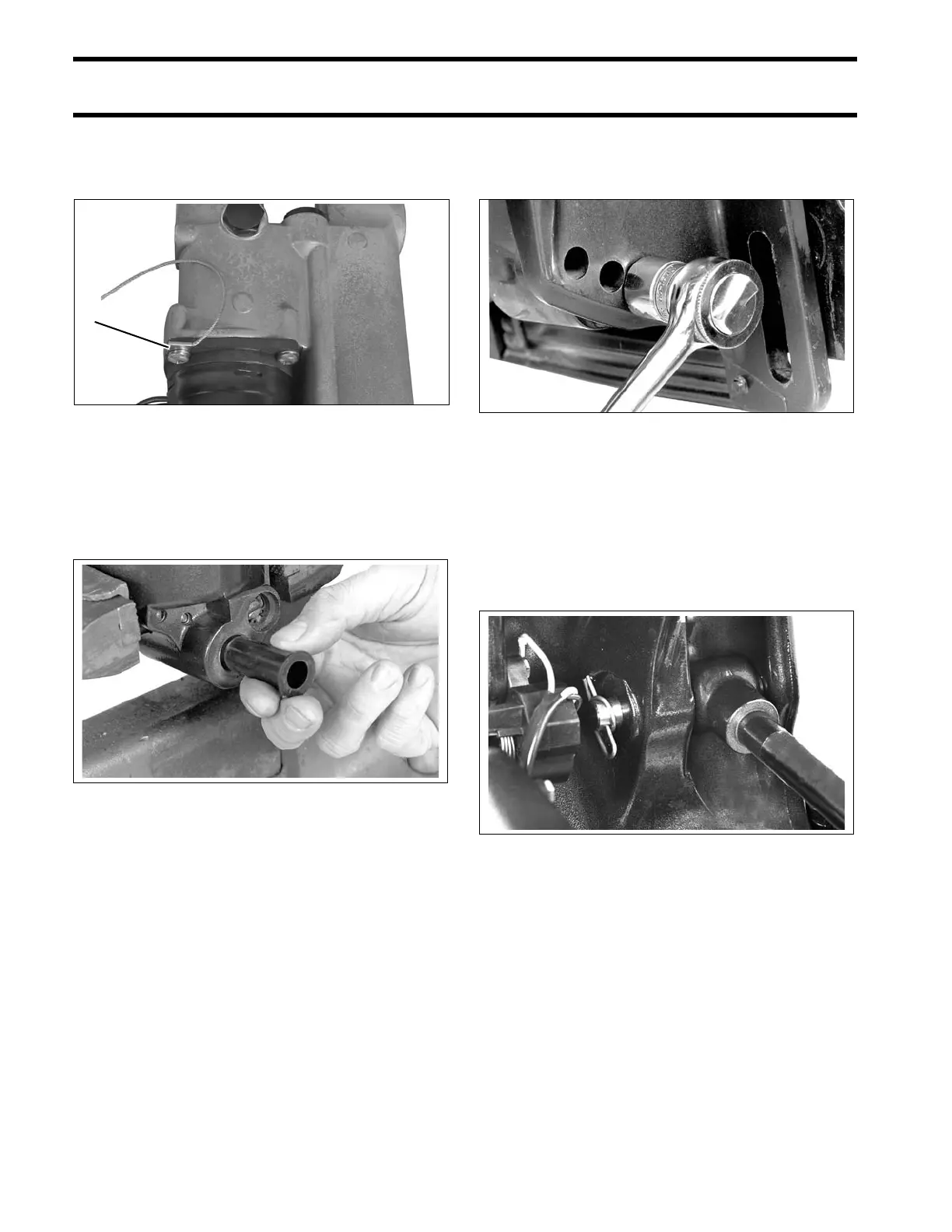

Remove the unit from the stern brackets far
enough to remove the ground lead from the pump
motor mounting screw.
Installation
40 – 60 HP MODELS
Lubricate the cylinder and thrust rod bushings with
Triple-Guard grease. Install the bushings.
Install the ground lead.
Place trim/tilt unit into position.
Lubricate the angle adjustment rod with Triple-
Guard grease. Install the rod. Tighten the locknuts
to a torque of 20 to 25 ft. lbs. (27 to 34 N·m).
Loosen the manual release valve if necessary and
extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
Secure the cylinder pin with cotter clip.
1. Ground lead 002527
15591
1
18941
15493
