TRIM AND TILT
TRIM AND TILT REPLACEMENT
13
75 – 90 HP MODELS

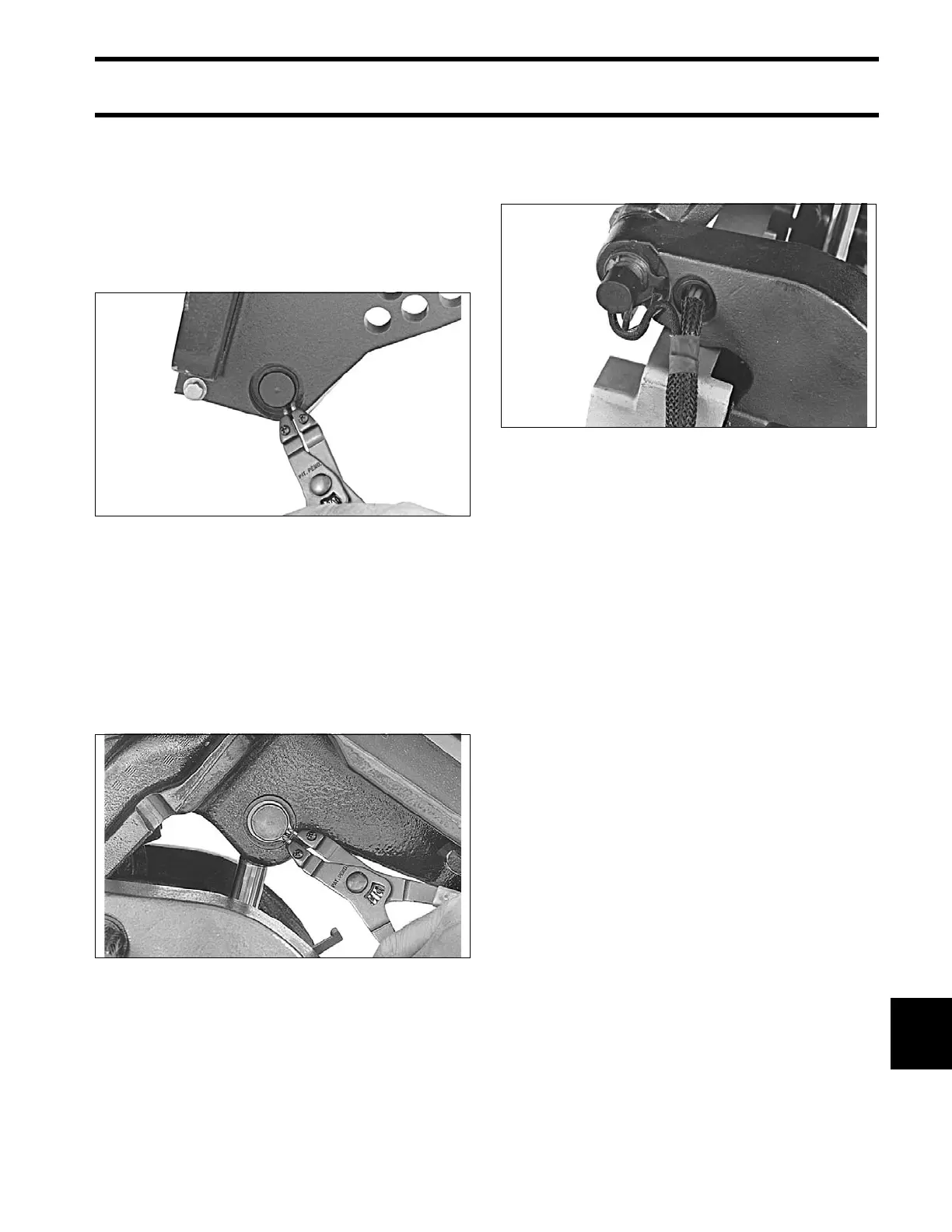

Install the ground lead.
Place trim/tilt unit into position. Apply Triple-Guard
grease to the lower pin and install the pin.
Install external snap rings on lower pin with sharp
edge of ring facing out.
Loosen the manual release valve if necessary and
extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
Install external snap rings onto upper pin with
sharp edge facing out.
ALL MODELS
Place trim/tilt wires in braided tube and install
through hole in the stern bracket.
Install connector on trim/tilt cable and reconnect
trim connectors to engine wire harness.
Release the tilt support and lower the outboard.
Tighten the manual release valve to a torque of 45
to 55 in. lbs. (5 to 6 N·m).
