BRP EVINRUDE E-TEC E90DSLAA Series - Swivel Bracket and Trailering Bracket; Tilt Tube; Throttle and Shift Linkage

42
ROUTINE SERVICE
LUBRICATION

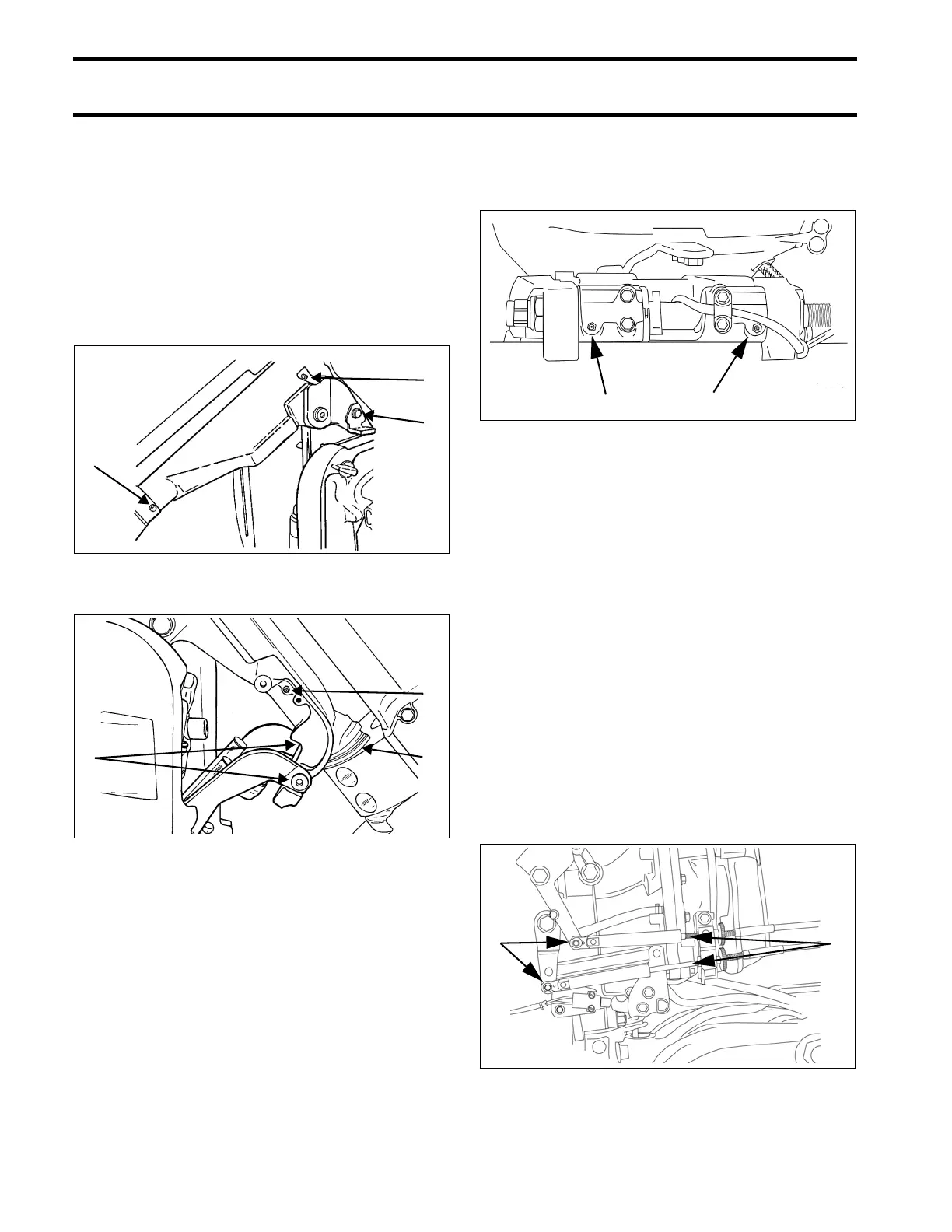

Swivel Bracket and Trailering
Bracket
Lubricate the swivel bracket with Triple-Guard
grease.
Apply grease until the grease begins to flow from
the upper or lower swivel bracket areas.
Coat the pivot points of the trailering bracket with
Triple-Guard grease.
Tilt Tube
Lubricate the tilt tube grease fittings with Triple-
Guard grease.
Throttle and Shift Linkage
Disconnect the battery cables at the battery.
Remove clips and washers from throttle and shift
lever pins. Carefully, remove casing guides from
pins.
IMPORTANT: DO NOT disturb cable trunnion
adjustments.
Shift remote control into FULL THROTTLE/
REVERSE position to fully extend the plastic cas-
ing guides.
Apply Triple-Guard grease to:
• Cable attachment pins of both the throttle and
shift levers
• Inner casings of both the throttle and shift
cables.
2-Cylinder models
1. Grease fitting
2. Tilt support
DR31329
3-Cylinder models
1. Grease fitting
2. Pivot points
3. Lower swivel bracket area
DR5073
1
2
1
1
32
1. Tilt tube fittings DR38798
1. Attachment pins, throttle and shift cables
2. Inner casings, throttle and shift cables
002214
1 1
21
