FUEL SYSTEM
FUEL COMPONENT SERVICING

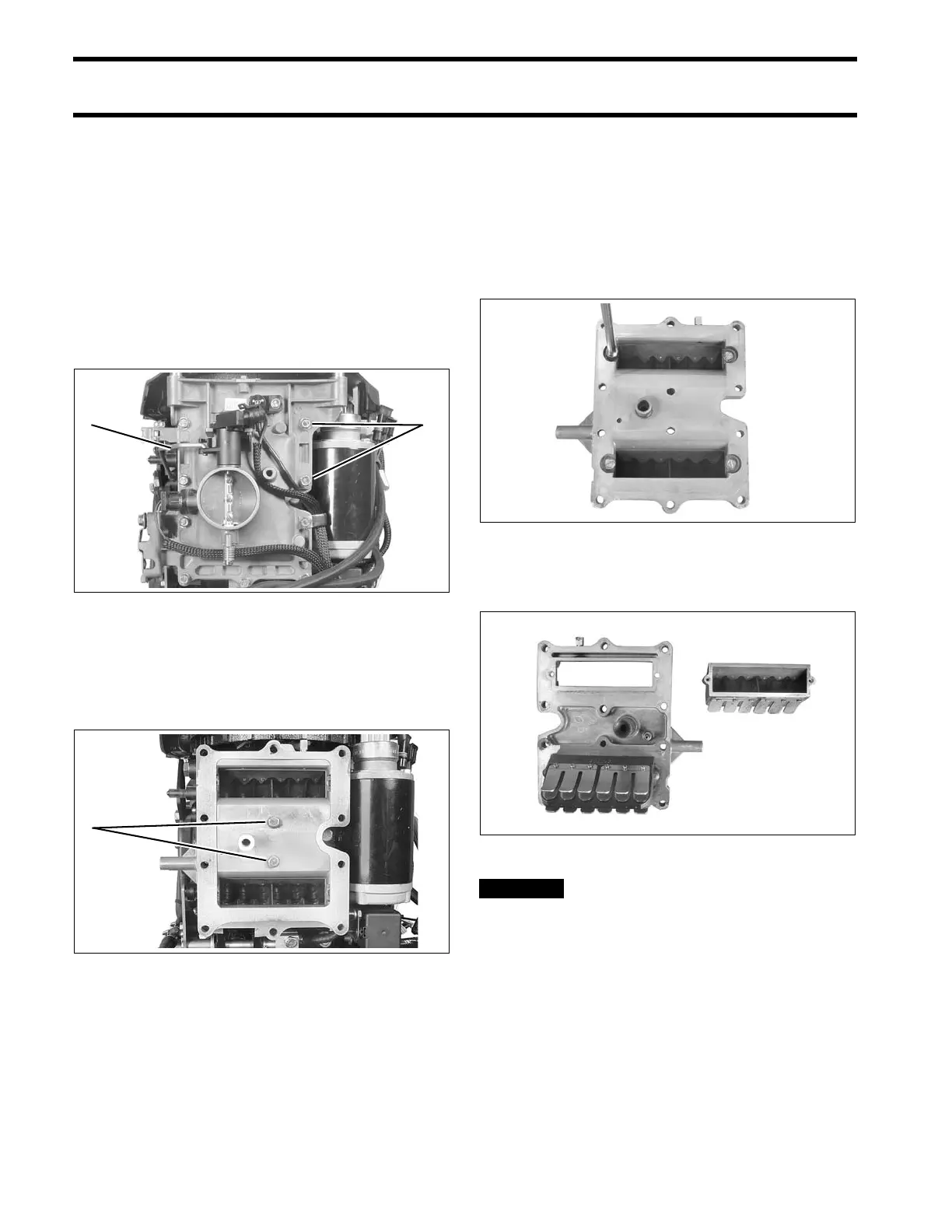

Intake Manifold Service
Removal
Disconnect vapor separator vent hose, main bear-
ing vent hose, air temperature sensor, crankshaft
position sensor, and throttle position sensor.
Use Ball Socket Remover Tool, P/N 342226, to
remove throttle link arm.
Remove throttle body screws and throttle body
assembly.
Remove gasket from throttle body.
Remove screws and reed plate assembly from the
crankcase.
Disassembly
All reed plate assembly and reed valve assem-
blies must be cleaned prior to reassembly. DO
NOT use strong carburetor cleaner or the hot
soaking tank method for cleaning.
Remove the reed valve retainer screws and
remove the assembly.
Use caution to prevent damaging reed valve
assemblies.
DO NOT disassemble reed valve
assemblies. Damaged reed plates are not ser-
viceable and are replaced as an assembly.
1. Link arm
2. Throttle body screws
002499
1. Screws 002503
002496
002504
