MANUAL STARTER

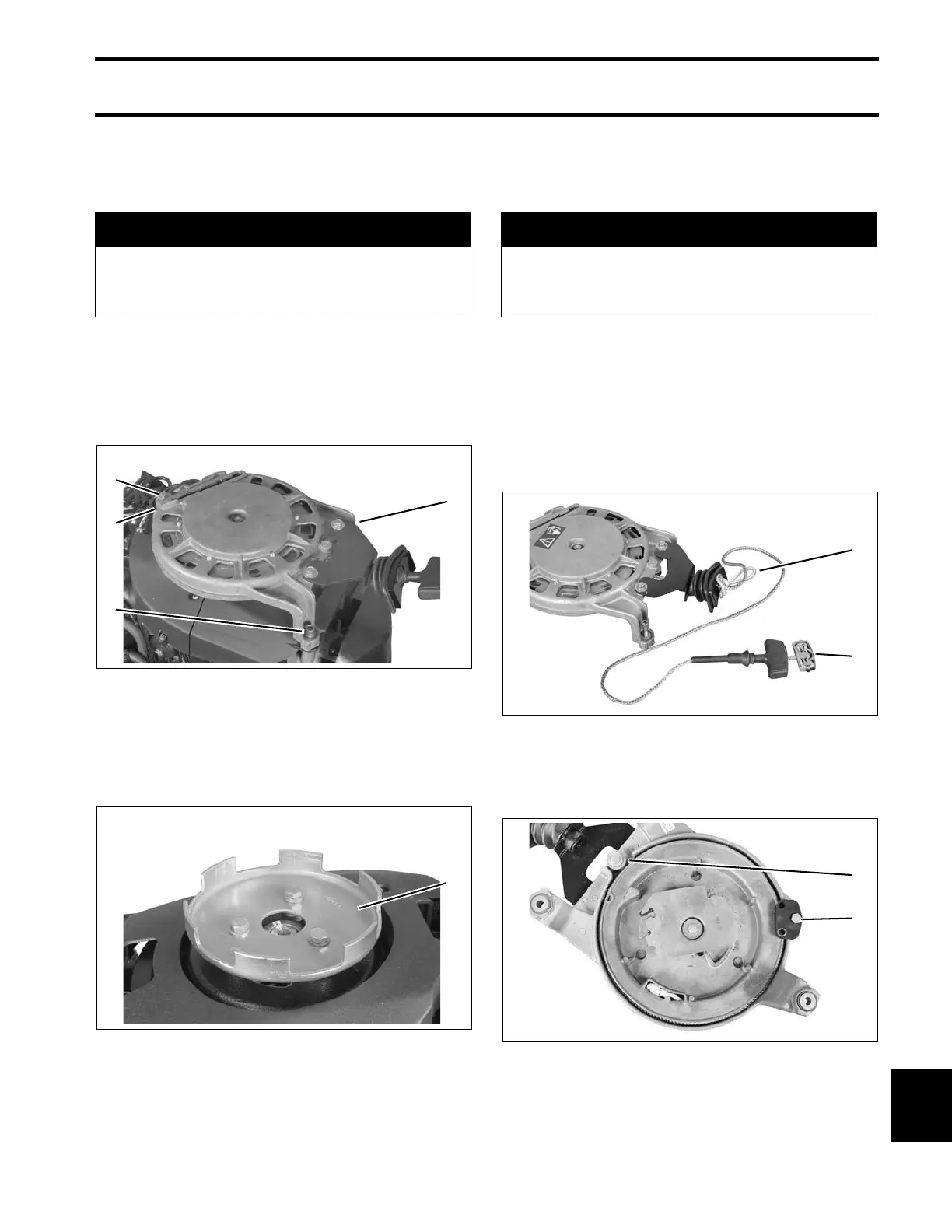

RECOIL STARTER REMOVAL
14
RECOIL STARTER
REMOVAL
Remove the clamp holding the oiling system wir-
ing harness.
Remove the three starter housing screws and
washers.
Lift starter housing from outboard.
Remove three screws and remove starter ratchet
from flywheel.
RECOIL STARTER
DISASSEMBLY
Pull the starter rope out far enough to tie a slip
knot in the rope. Remove the end of the starter
rope from the handle anchor and remove the han-
dle. Release the slip knot and ease the rope back
in until the rewind spring is fully unwound. If nec-
essary, remove the starter handle bracket from the
starter housing.
Remove the rope guide and pulley support from
the starter housing.
A WARNING
To prevent accidental starting while ser-
vicing, twist and remove all spark plug
leads.
1. Clamp
2. Starter housing screws (3)
002515
1. Ratchet 006483
2
1
2
2
1
A WARNING
Wear safety glasses while disassembling
and assembling manual starters because
of rewind spring tension.
1. Slip knot
2. Rope anchor
007853
1. Rope guide
2. Pulley support
007854
1
2
1
2
