BRP EVINRUDE E-TEC E90DSLAA Series - Exhaust Water Valve (60 Hp); Exhaust Relief Muffler

247
MIDSECTION
EXHAUST HOUSING, 40 – 60 HP
11
Exhaust Water Valve (60 HP)
Disconnect water valve electrical connector.
Remove screws and bracket holding valve to
exhaust housing.
Remove tie straps and disconnect water valve
hoses (3) from exhaust housing.
Check that all water passages are clear.
Install hoses to fittings on exhaust housing.
Place water valve and bracket in position.
Apply Nut Lock to screws, install and tighten 60 to
84 in. lbs. (7 to 9.5 N.m).
Exhaust Relief Muffler
Remove exhaust relief muffler cover to inspect fil-
ter element. Clean or replace as needed.
Apply Gasket Sealing Compound to cover gasket
and install cover.
Apply Nut Lock to cover screws and tighten to a
torque of 60 to 84 in. lbs. (7 to 9.5 N.m).

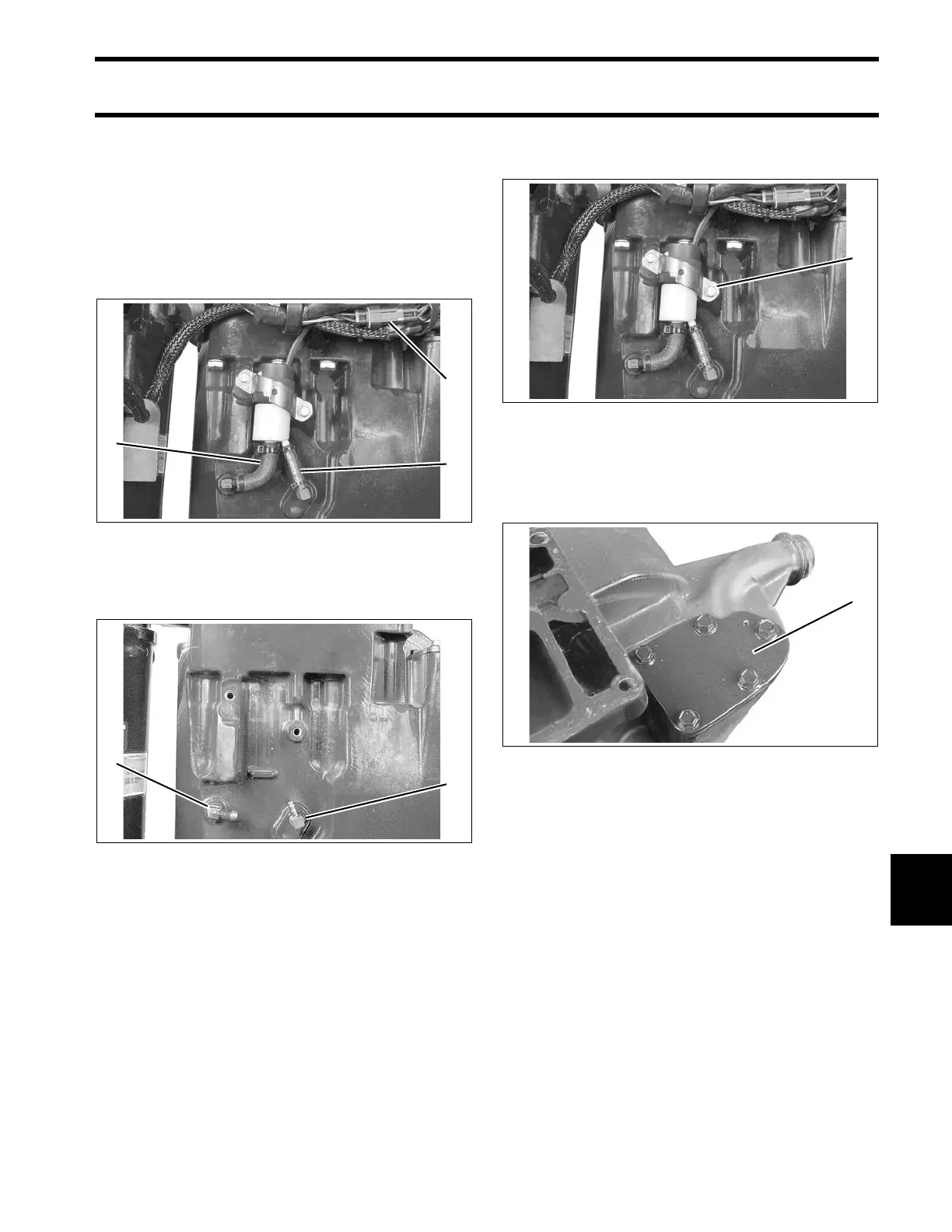

1. Electrical connector
2. Inlet hose
3. Outlet hose
004293
1. Fitting, water passage 004300
1
3
2
1
1
1. Exhaust water valve screws 004293
1. Exhaust relief muffler cover 004301
