271
MIDSECTION

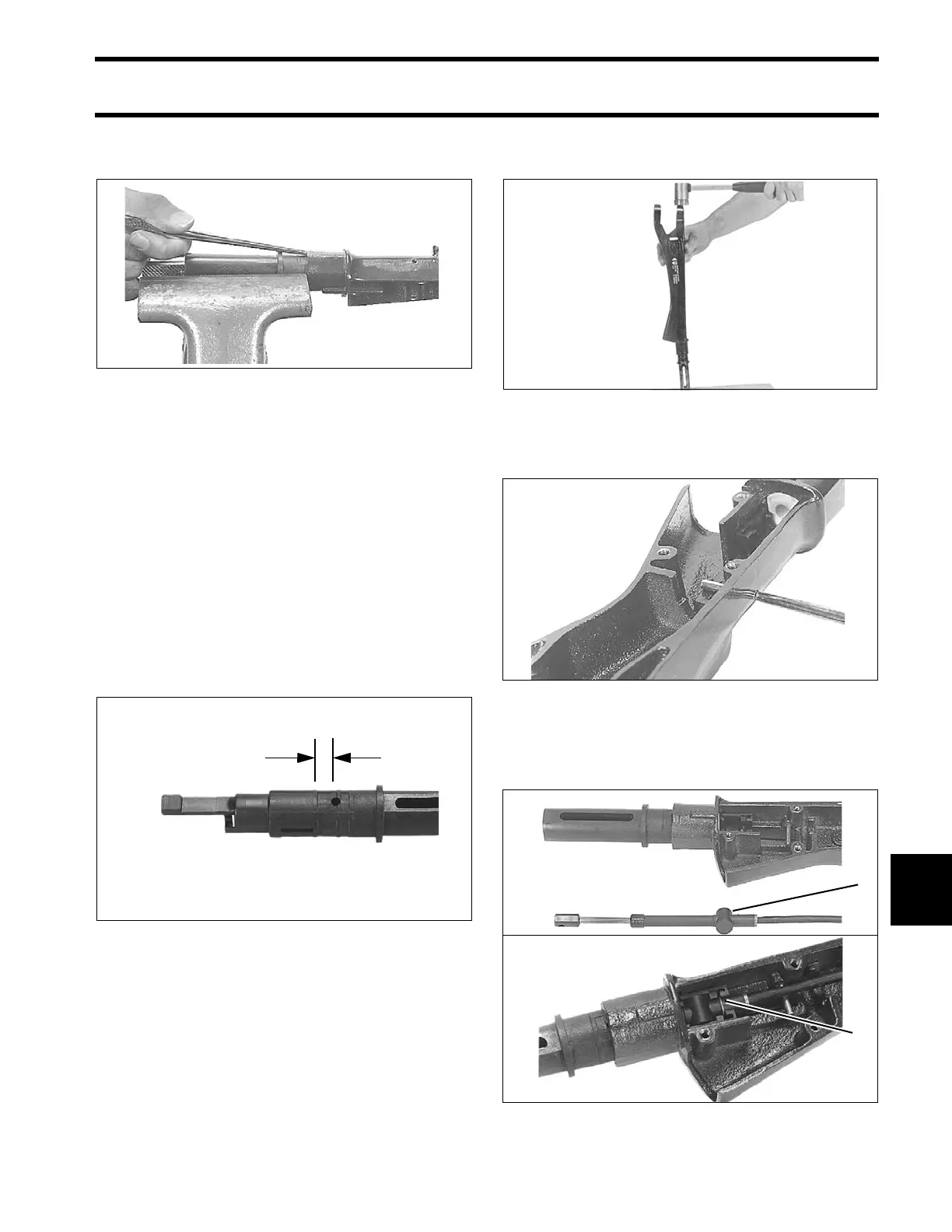

TILLER HANDLE SERVICE – STANDARD
11
outer handle. After removing, chip away remnants
of inner handle.
Remove throttle cable seal from the inner handle.
Inspection
Inspect the throttle cable for kinks and wear.
Replace if necessary.
Inspect the steering handle components for wear,
cracks, or damage. Replace parts if necessary.
Assembly
Install the throttle cable seal in inner handle.
If removed, apply Loctite Depend 300 adhesive to
inner handle at areas shown.
Install the metal outer handle over the plastic inner
handle and drive the outer handle into place.
Secure tab of the inner handle into recess of the
outer handle with the steel pin.
Install the handle end of the throttle cable. Snap
the throttle cable trunnion into the recess in the
handle. Install the retainer clip.
24284
20849
31202
24285
1. Throttle cable trunnion
2. Retainer clip
24282
24286
