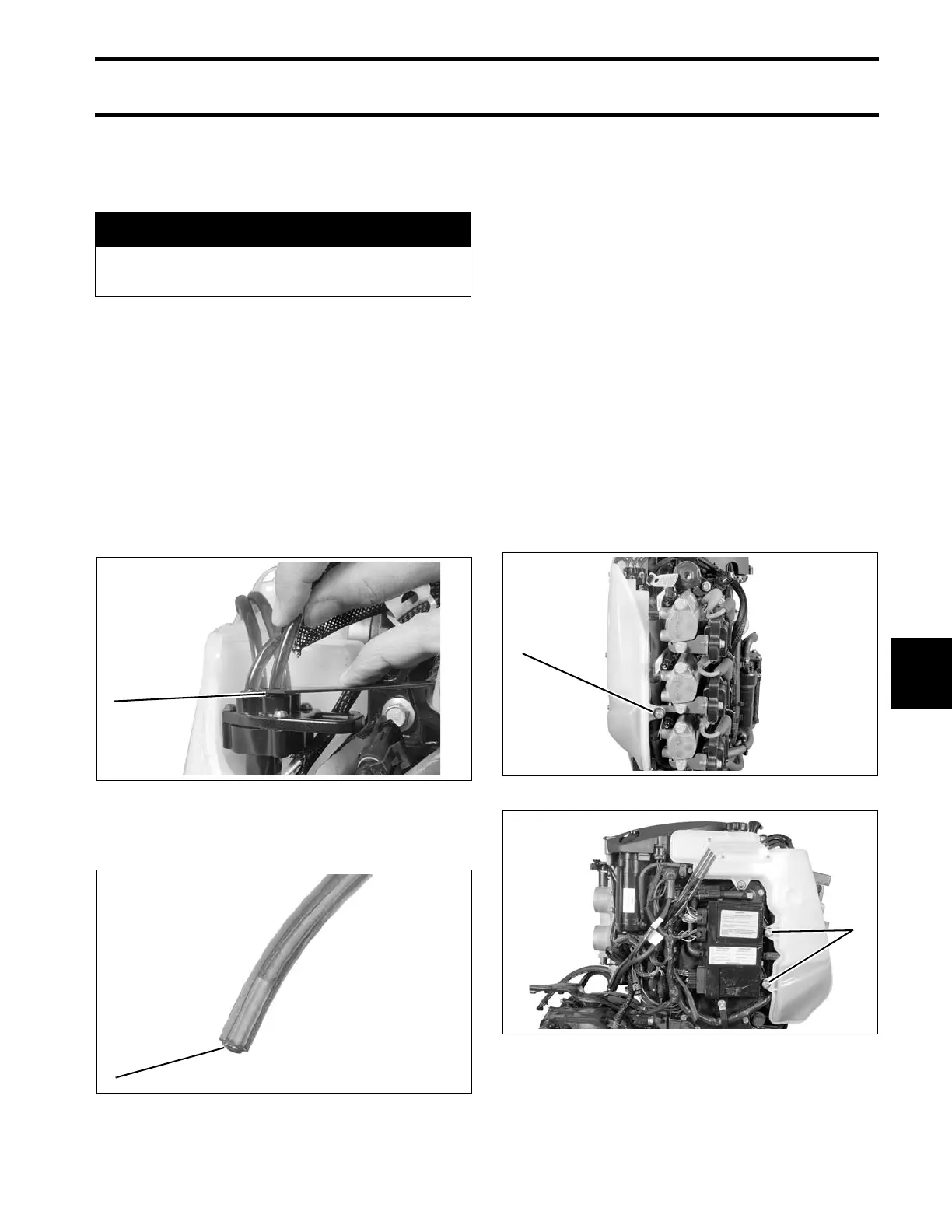

173
OILING SYSTEM
OIL COMPONENT SERVICING
8
OIL COMPONENT
SERVICING
Oil Distribution Hoses
The oil distribution hoses to each cylinder MUST
be the same length. DO NOT alter the length of
any hoses.
Oil Distribution Hose Length:
• 20 in. (508 mm)
Removal
Release the hose by depressing the outer ring of
the hose retaining mechanism.
Once hose is removed from the manifold, make
sure hose support is in the end of the hose.
Installation
Cut Replacement Oil Hose, P/N 778708, to the
correct length. Insert hose support in manifold end
of hose.
IMPORTANT: DO NOT insert distribution hoses
into manifold without a hose support.
Be sure the hose is fully inserted into manifold.
Insertion depth is 5/8 in. (16 mm). Visually inspect
for hose supports.
Oil Tank Assembly
Removal
Disconnect the battery cables at the battery.
Remove engine covers and air silencer.
Remove oil tank retaining screws.
3-CYLINDER MODELS
A WARNING
To prevent accidental starting while ser-
vicing, twist and remove spark plug leads.
1. Retainer mechanism 008067
1. Hose support 008070
1. Screw 008071
1. Screws 008072
