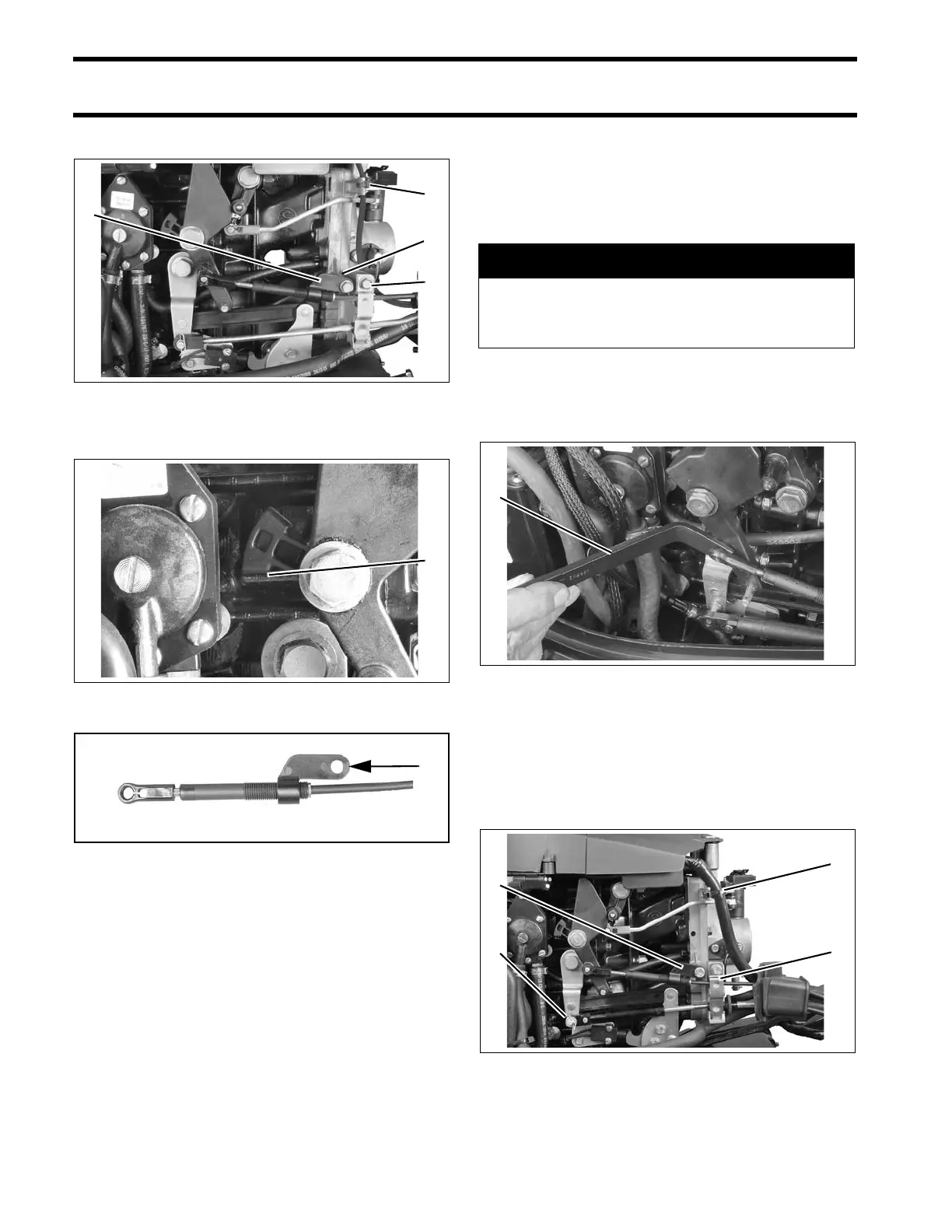

274
MIDSECTION
TILLER HANDLE SERVICE – LONG HANDLE
Secure electrical harness with tie strap.
IMPORTANT: Rotate twist grip. Make sure throt-
tle cam goes to full throttle without bending cable,
and still returns to IDLE stop.
TILLER HANDLE
SERVICE – Long Handle
Removal
Use Ball Socket Remover tool, P/N 342226, to
unsnap the throttle cable clip from the throttle
lever.
.
Remove the throttle cable anchor screw and
washer. Loosen throttle cable retainer screw. And,
remove the tie strap holding the tiller handle elec-
trical harness.
Remove retainer clip from shift cable.
1. Cable anchor
2. Boss
3. Cable retainer
4. Tie strap
006526
1. Throttle lever stop 005114
1. Turn anchor four turns toward cable end. 006564
4
2
3
1
1
1
A WARNING
To avoid accidental starting of engine
while servicing, twist and remove all spark
plug leads.
1. Remover tool 005121
1. Throttle cable anchor
2. Shift cable retainer clip
3. Cable retainer
4. Tie strap
006745
1
4
3
1
2
