219
POWERHEAD

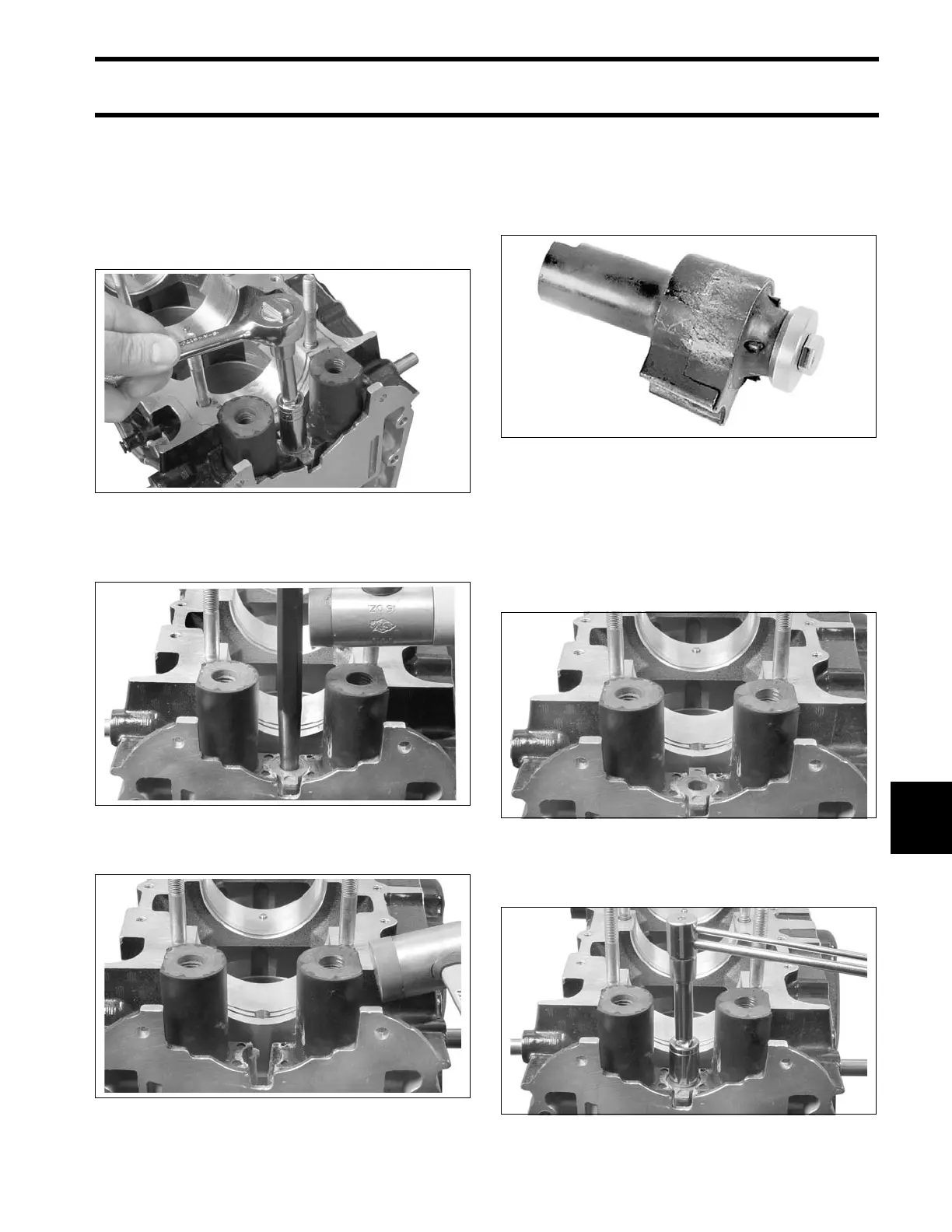

UPPER MOUNT SERVICING (3-CYLINDER)
10
UPPER MOUNT
SERVICING (3-Cylinder)
Removal
Remove mount retainer screw.
Insert suitable punch in taper of mount retainer.
Tap side of punch to loosen mount retainer.
Dislodge mount assemblies and remove.
Inspect mounts and replace if necessary.
IMPORTANT: The motor mount, washer, and
screw are serviced as an assembly. Do not disas-
semble.
Installation
Place mount assemblies in position, with flats fac-
ing away from each other.
Apply Moly Lube to all sides of retainer and install
between mounts.
Install the retainer screw and tighten to a torque of
15 to 20 ft. lbs. (20 to 27 N·m).
002069
002130
002132
39820
002133
002134
