BRP EVINRUDE E-TEC E90DSLAA Series User Manual

121
ELECTRICAL AND IGNITION
CONNECTOR SERVICING
6
AMP Connectors
IMPORTANT: Always use the appropriate meter
test probes and adapters when testing compo-
nents fitted with these terminals. Electrical grease
is NOT used on AMP connectors.

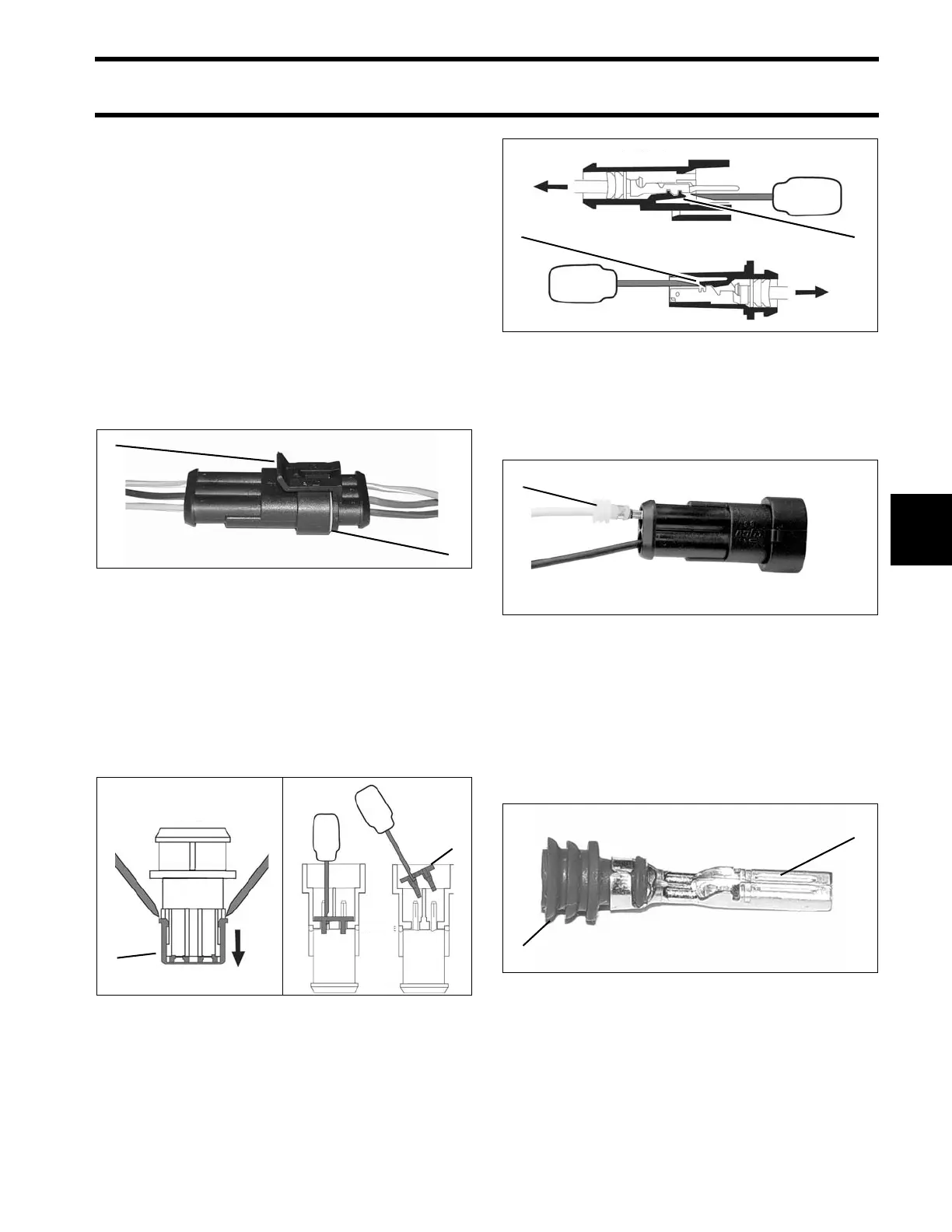

SUPERSEAL 1.5
Disconnect
Lift latch. Pull connectors apart.
Connect
Confirm the seal is in place. Push connectors
together until latched.
Terminal Removal
Use Secondary Lock Tool, P/N 777078, to release
anti-backout device of connector housing. Next,
use Primary Lock Tool, P/N 777077, to release
locking tab of connector housing. Release locking
tab and pull on wire to remove from connector
housing.
Terminal Installation
Align terminal with connector housing. Push con-
nector and seal into housing until seated.
Align anti-backout device with connector housing
and terminals. Use Secondary Lock Installer,
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires AMP
Crimp Tool with dies, P/N 777281.
1. Latch
2. Seal
002448
1. Anti backout device, plug
2. Anti backout device, receptacle
002449
002450
2
1
2
1
1. Locking tab, plug
2. Locking tab, receptacle
002447
1. Terminal and seal 002451
1. Terminal
2. Seal
002452
21
1
1
2
