OILING SYSTEM
OIL CONTROL SETTINGS
OIL CONTROL SETTINGS
Oil Injection Rate
EMM programming controls the rate of oil injection
based on engine RPM. This rate can be adjusted
for the type of oil being used, and also for power-
head break-in. Use Evinrude Diagnostics software
to access these features.
The Set Oil Type option controls the injection rate
for the oil being used and typical operating condi-
tions.
The TC-W3 oil type setting is the standard setting
for all outboards. Set TC-W3 for:
• Operation with all TC-W3 outboard oils includ-
ing XD30, XD50, or XD100.
• Applications requiring maximum lubrication.
• Extreme applications (commercial or harsh con-
ditions, racing or other high performance opera-
tion).
• Use this setting with XD100 outboard oil in
extreme applications
The XD100 setting provides an option to run the
outboard at a reduced oil injection rate. This set-
ting REQUIRES the use of Evinrude XD100 out-
board lubricant and is not recommended for all
applications.
IMPORTANT: The XD100 setting is not avail-
able on all models.
Use the XD100 setting for:
• Conventional use (runabouts, cruisers)
• Moderate applications
Running an Evinrude E-TEC out-
board on other grades of oil while set to the
XD100 oil ratio will result in increased engine
wear and shortened outboard life.
Powerhead oil programming labels are provided
to identify EMM oil programming. Install the cor-
rect label to alert user to specific oil requirements.
An XD100 Outboard Oil Decal, P/N 352369, is
available to label boats equipped with outboards
that have been programmed for the reduced oil
injection ratio.

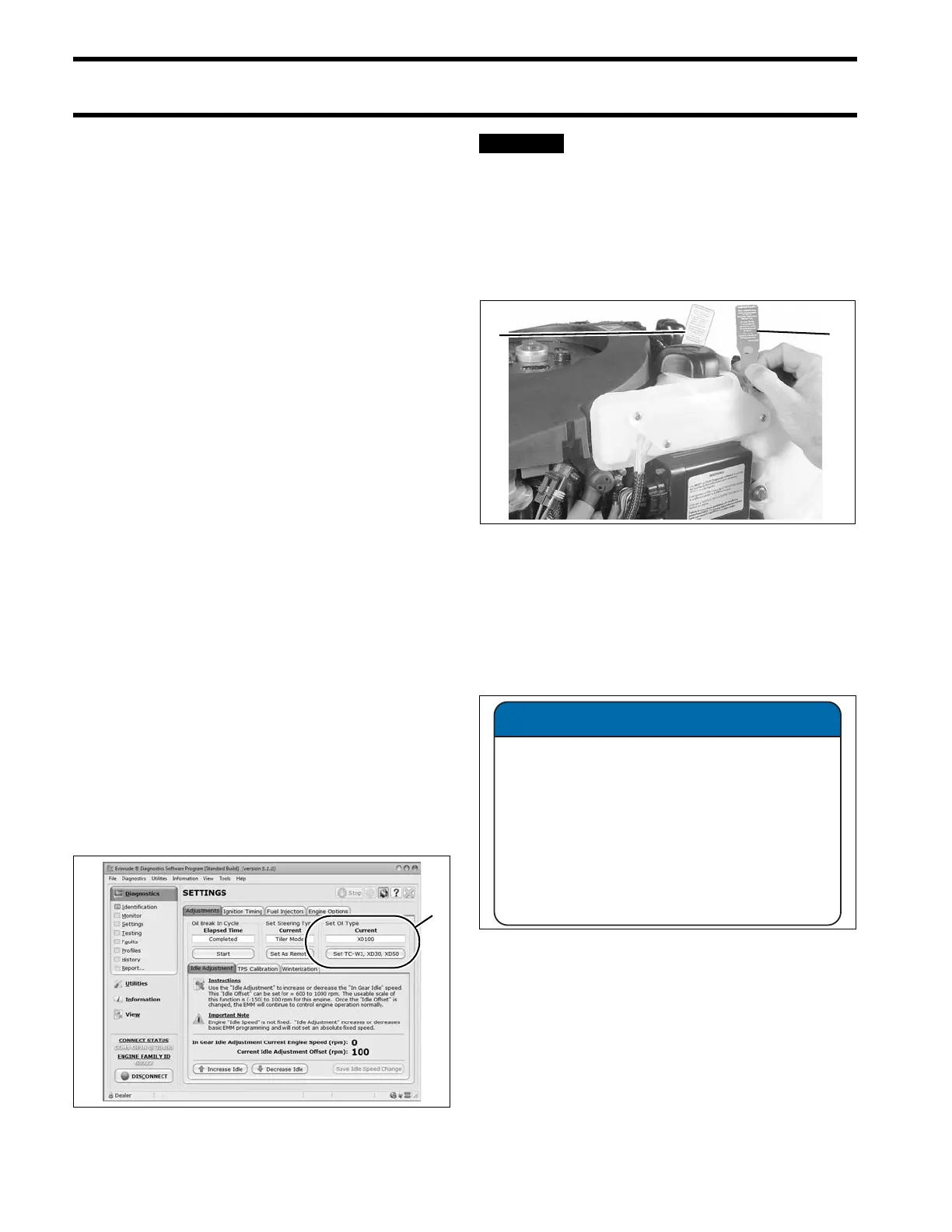

1. Oil control setting 008580
1. Evinrude/Johnson XD30 outboard lubricant (TC-W3)
YELLOW label
2. Evinrude/Johnson XD100 outboard lubricant (Premium)
BLUE label (Installed)
002507
XD100 Outboard Oil Decal 355627
355627
NOTICE
This outboard has been programmed for
the use of Evinrude
®
/Johnson
®
XD100â„¢
outboard oil ONLY.
Failure to use Evinrude
®
/Johnson
®
XD100â„¢ outboard oil may harm engine
performance and shorten engine life.
