MIDSECTION
EXHAUST HOUSING, 75 – 90 HP
11

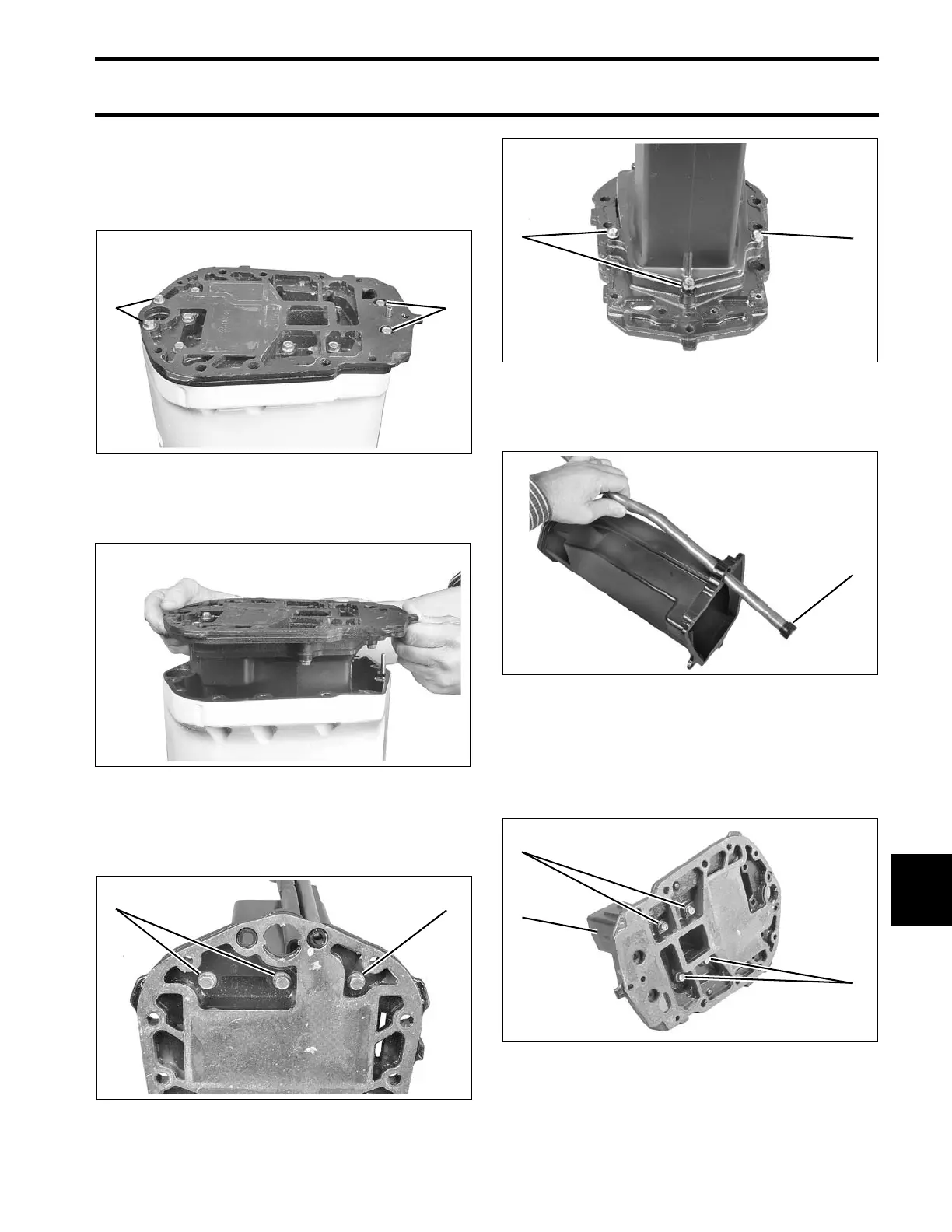

Exhaust Housing Disassembly
Remove the front and rear screws retaining the
adapter/inner exhaust housing to the exhaust
housing.
Lift the adapter/inner exhaust housing out of the
exhaust housing.
Remove the three upper screws and three lower
screws securing the inner exhaust housing to the
adapter housing.
Remove the water tube from the inner exhaust
housing. Discard water tube grommet.
Remove the seal from the bottom flange of the
inner exhaust housing.
Remove the four screws securing the exhaust
megaphone to the adapter housing.
1. Adapter retaining screws 001981
001980
1. Upper inner exhaust housing screws 001975
11
11
1. Lower inner exhaust housing screws 001974
1. Water tube grommet 001984
1. Adapter to megaphone screws
2. Exhaust megaphone
001976
11
1
1
1
2
