FUEL SYSTEM
FUEL COMPONENT SERVICING
7
Fuel Filter Service
Removal
Disconnect the battery cables at the battery.
Remove filter carefully to prevent spilling contents.
Inspect contents for any presence of water. If
water is present, identify the source and correct
the problem. Take additional fuel samples and
drain fuel tank(s) if necessary.
Installation
Install filter in fuel supply hoses. Note arrow indi-
cating direction of fuel flow on filter. Secure filter
with appropriate clamps.
Squeeze primer bulb to prime fuel system. Hold
pressure on bulb and check for fuel leaks.
Connect battery cables.
Run outboard and check for fuel leaks.
Fuel Lift Pump Service
The fuel lift pump is serviceable as a complete
assembly or can be repaired with a fuel pump
repair kit. Refer to parts catalog for service parts.
Removal
Disconnect the battery cables at the battery.
Disconnect the fuel hoses from the fuel pump
housing.
Disconnect the fuel lift pump pulse hose at the
crankcase fitting.
Loosen the fuel lift pump mounting screws.
Remove the fuel lift pump as an assembly.
Fuel pump repair kit, P/N 438616, is available for
internal service of fuel pump. Refer to instructions
included with kit.

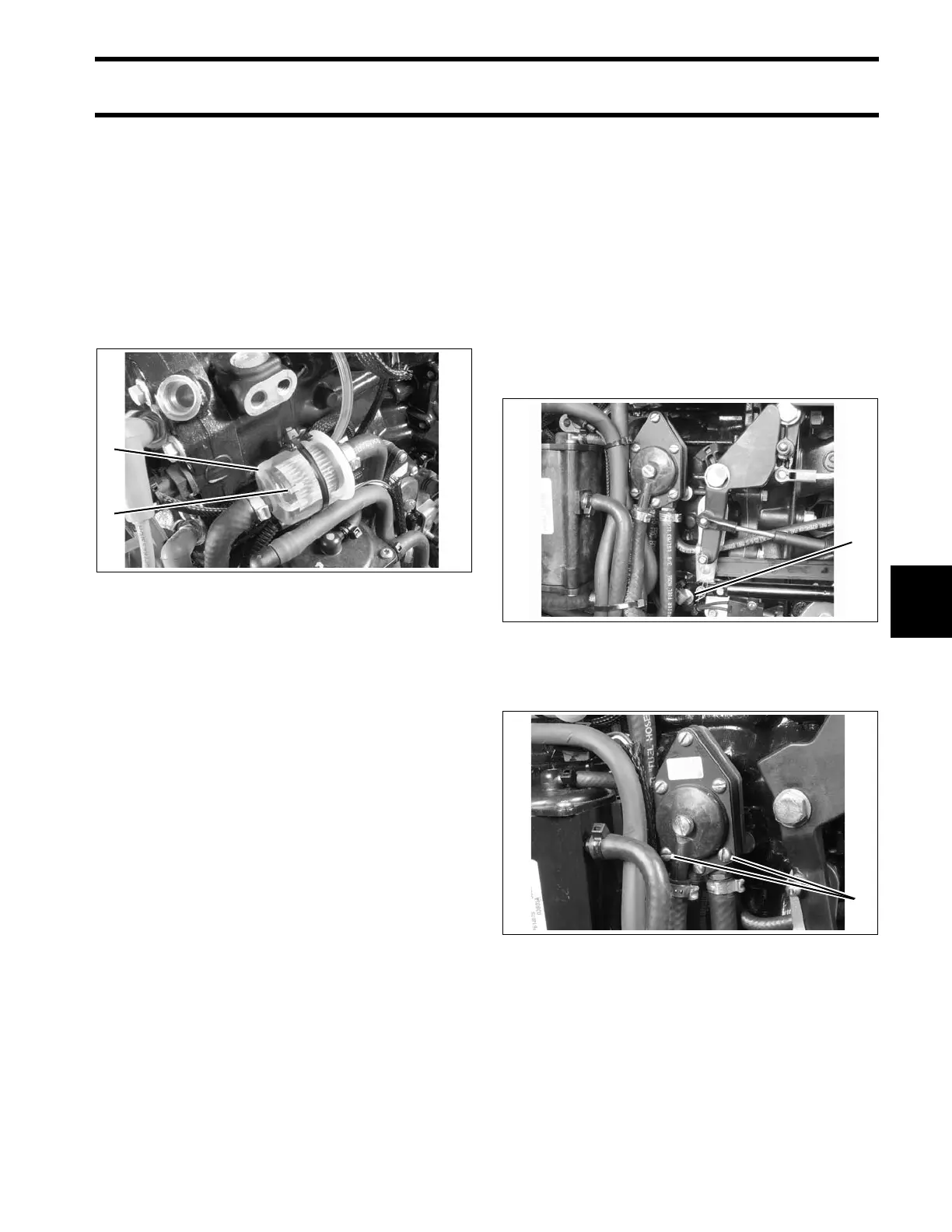

1. Fuel filter
2. Arrow
002192
1. Crankcase fitting 006558
1. Screws 002194
