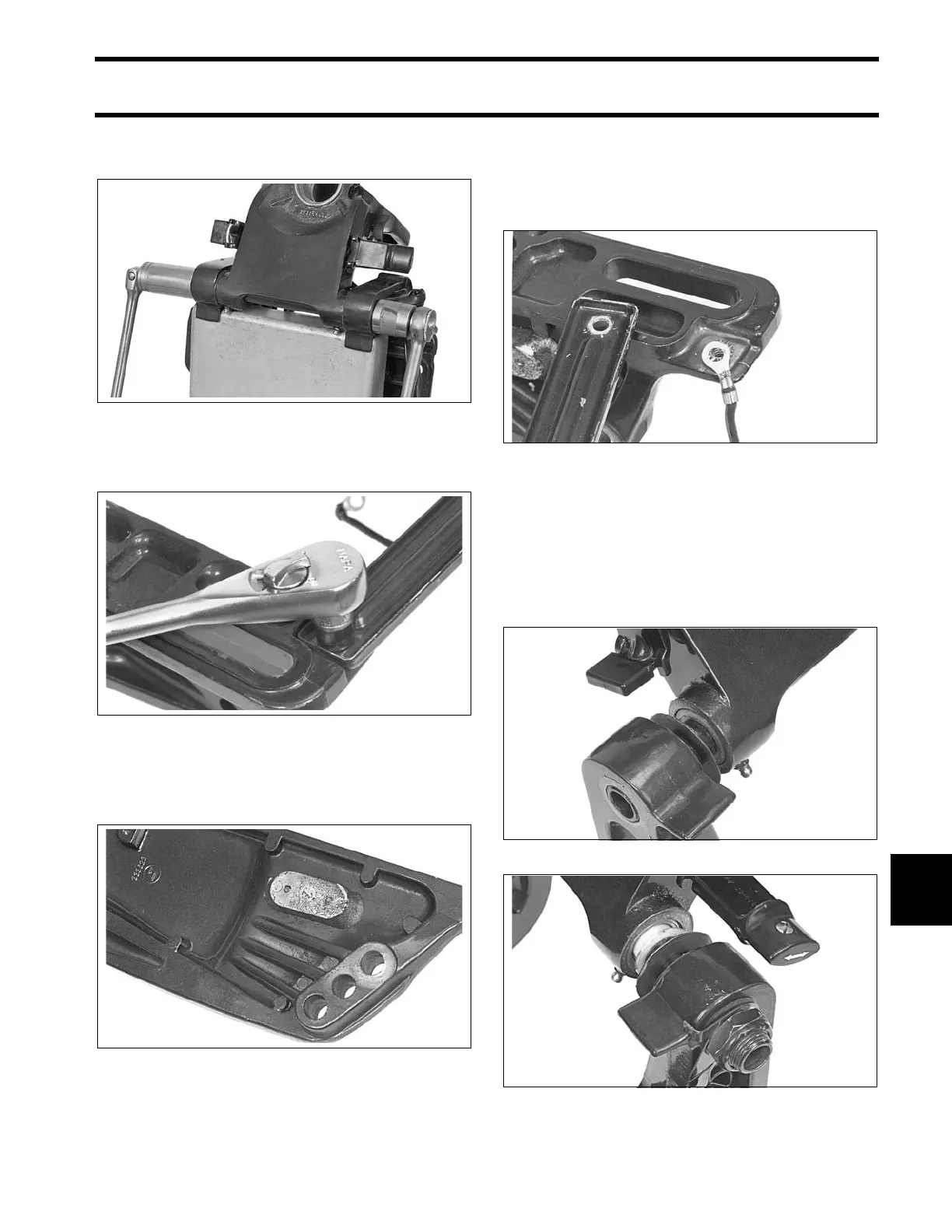

MIDSECTION
STERN BRACKET, 40 – 60 HP POWER TILT
11
To separate the swivel bracket from the stern
bracket, remove one tilt tube nut.
Remove the tie bar to separate the two stern
brackets.
Check the condition of the anode. Replace the
anode if it has been reduced to two-thirds its origi-
nal size.
Stern Bracket Assembly
Assemble the tie bar to the stern brackets. Place
the ground lead and starwasher between the port
stern bracket and tie bar.
Lubricate the swivel bracket bushings with Triple-
Guard grease. Place the bushings in the swivel
bracket.
Position the swivel bracket between the stern
brackets. Place a thrust washer between each of
the stern brackets and the swivel bracket.
17544
17541
17551
17540
17553
17552
