MIDSECTION
TILLER HANDLE SERVICE – STANDARD
11

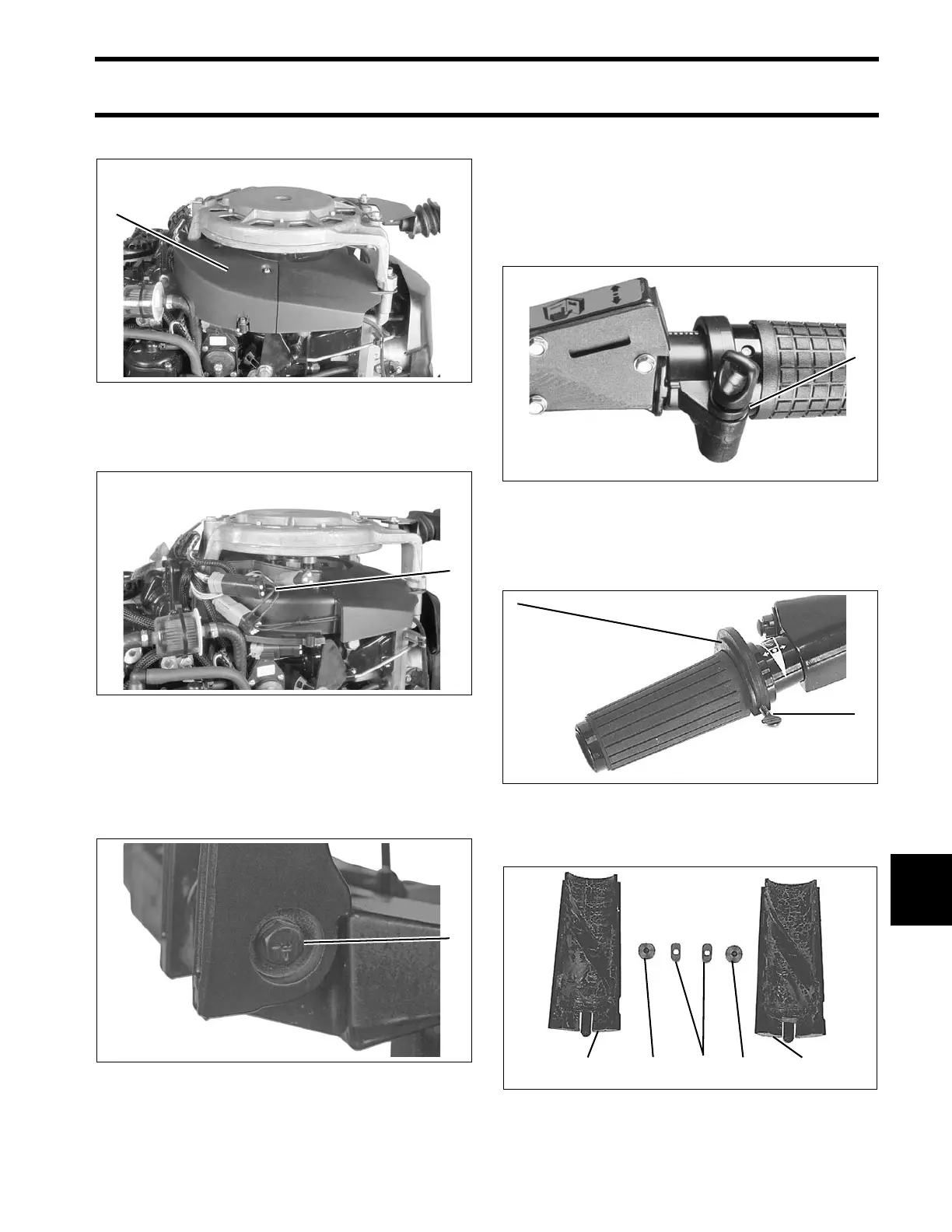

Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove throttle cable and wires from grommet in
lower engine cover.
Remove the screw attaching steering handle.
Remove handle.
Disassembly
Loosen throttle friction control so there is no
restriction on grip.
IMPORTANT: Do not back screw out com-
pletely. Nut is under spring tension.
Use Twist-Grip Remover, P/N 390767, to depress
the grip detents. Tighten screw and remove the
grip by pulling grip.
Remove the helix halves, rollers, and guides.
1. Electrical cover 002509
1. Electrical harness connector 002511
1. Screw 31194
1. Throttle friction control 001259
1. Twist-Grip Remover
2. Screw
002189
1. Helix halves
2. Rollers
3. Guides
COA2674
