270
MIDSECTION

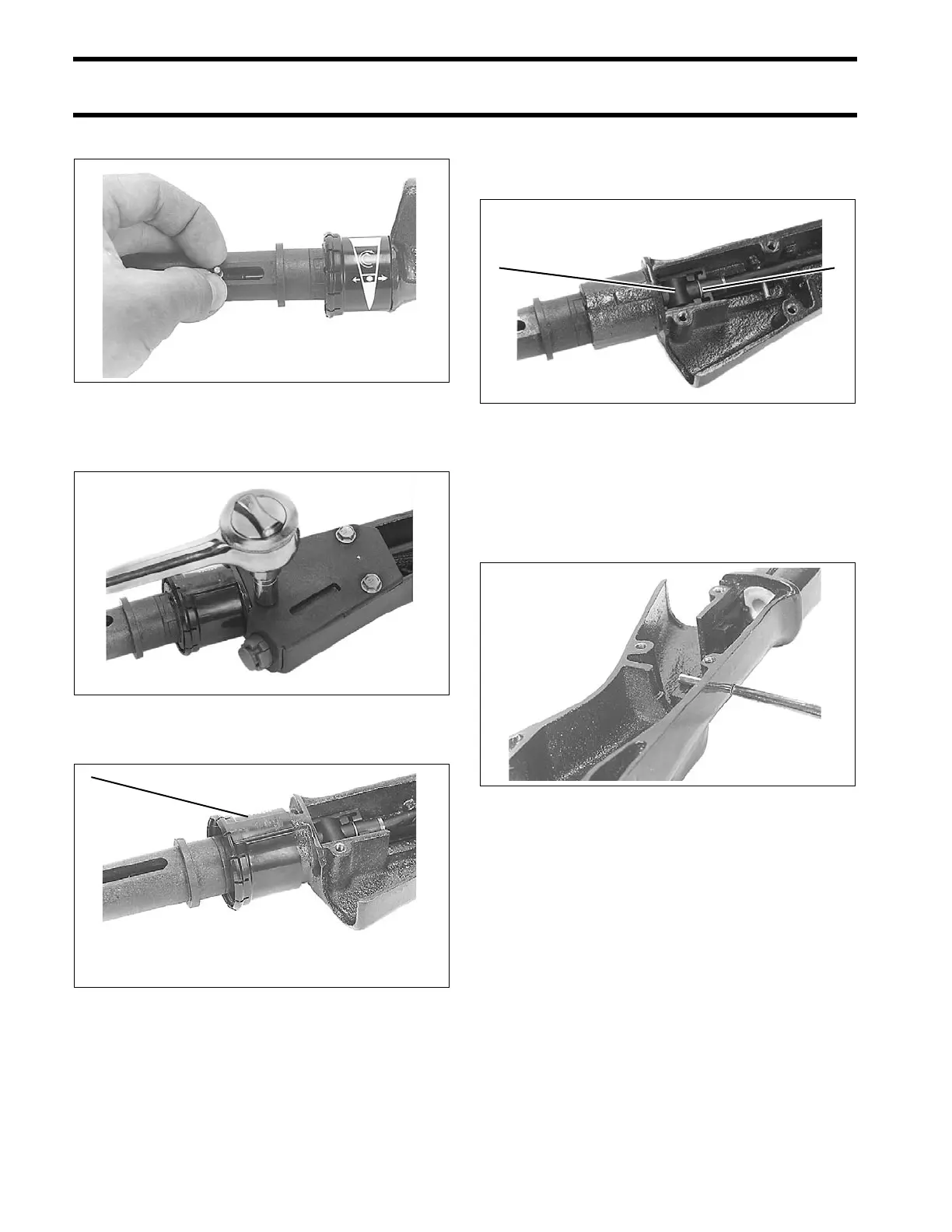

TILLER HANDLE SERVICE – STANDARD
Pull the throttle pin out of the cable.
Remove stop switch cover screws and cover/stop
switch assembly.
Remove the throttle control plate.
Remove the throttle cable retaining clip. Pry the
cable trunnion out of the steering handle and
remove cable.
IMPORTANT: DO NOT remove the inner handle
except to replace it.
Use a punch and mallet to drive out the steel pin
holding the inner handle into the steering handle.
Remove the plastic inner handle from the metal
outer handle by driving the outer handle off with a
mallet and a punch. Inner handle is bonded to the
24294
24288
1. Throttle control plate 24287
1. Retaining clip
2. Cable trunnion
24286
24285
