BRP EVINRUDE E-TEC E90DSLAA Series User Manual

33
ROUTINE SERVICE
ADJUSTMENTS
2

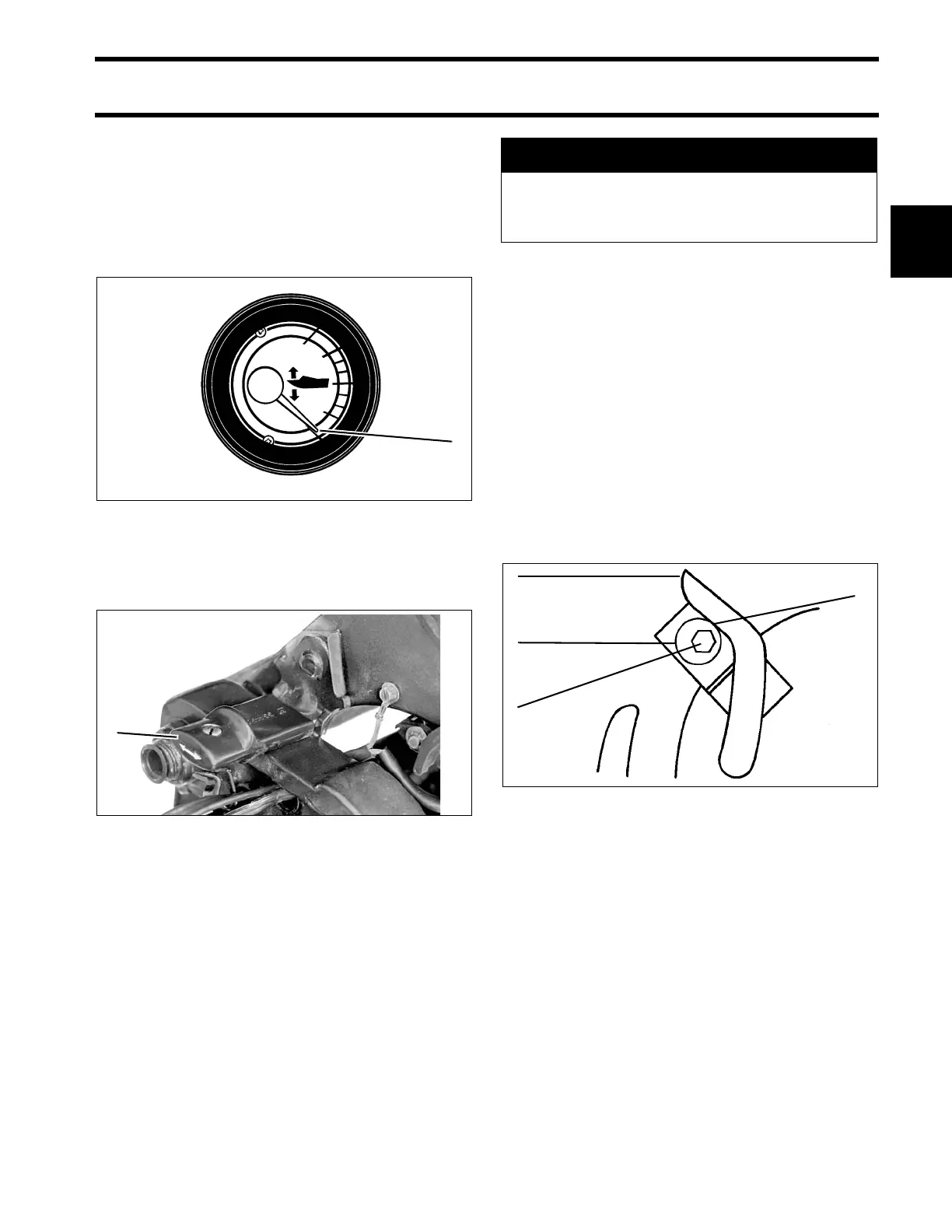

Trim Sending Unit Adjustment
(40 – 60 HP)
The sending unit eccentric cam must be adjusted
so that the gauge needle is aligned with the lowest
gauge mark with the outboard trimmed all the way
DOWN.
Check if the gauge needle is above or below the
lowest gauge mark. Tilt engine UP and engage
trailering lock.
When the outboard is trimmed all the way DOWN,
the sending unit lever touches the eccentric cam
just forward of the top of the cam at the contact
point.
Loosen cam screw and rotate eccentric cam to
adjust full down gauge position:
• If the needle was above the lowest mark, move
the thick part of the cam TOWARD the contact
point. Tighten the screw, and recheck the gauge
reading.
• If the needle was below the lowest mark, move
the thick part of the cam AWAY from the contact
point. Tighten the screw, and recheck the gauge
reading.
Tighten eccentric cam retaining screw and check
needle position at full trim DOWN.
1. Lowest gauge mark DR2827
1. Trailering lock 18954
1
1
A WARNING
To avoid personal injury, do not adjust the
sending unit eccentric cam while the
engine is being tilted.
1. Lever
2. Eccentric cam
3. Contact point
4. Cam screw
DR5090
3
1
2
4
