371

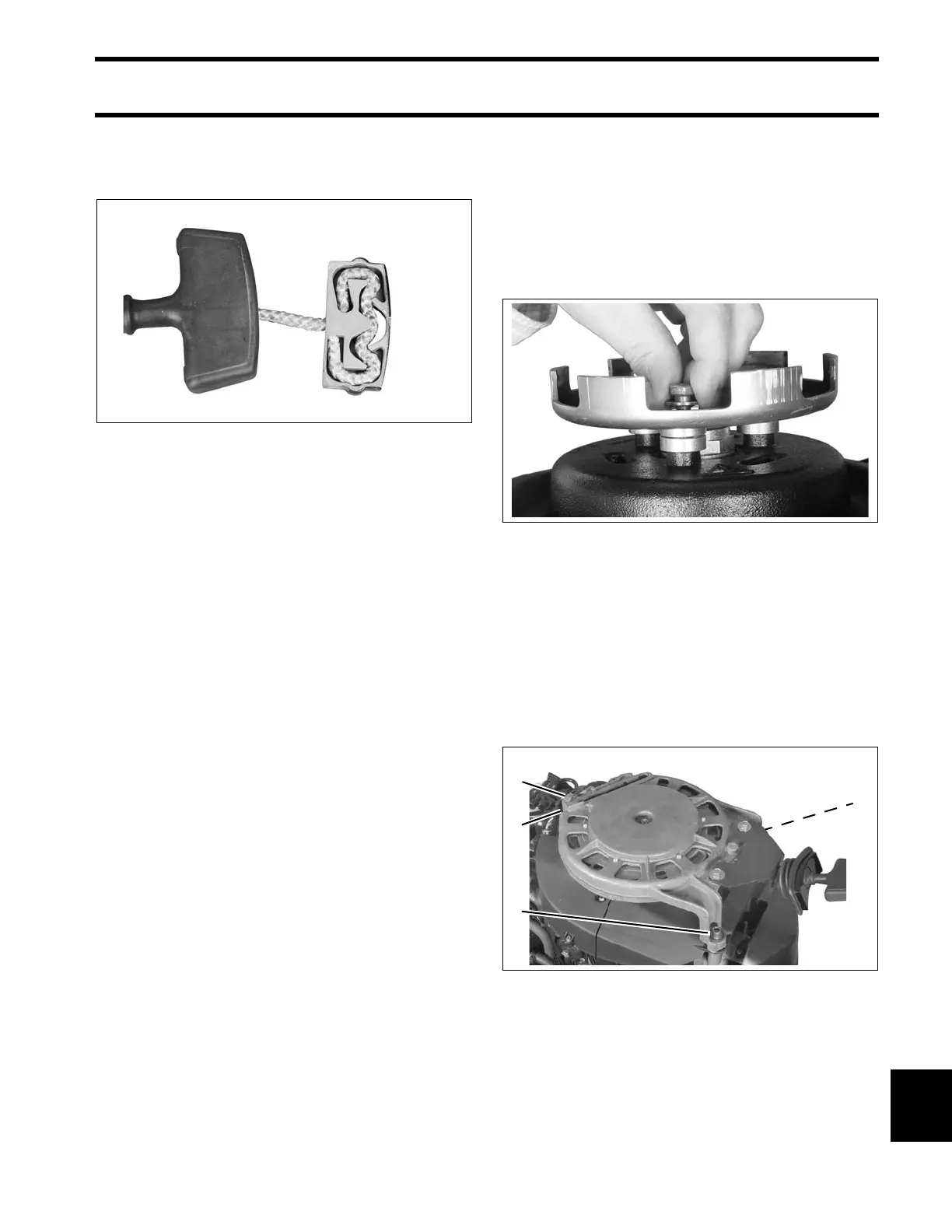

MANUAL STARTER
RECOIL STARTER INSTALLATION
14
Press the starter rope into the channel of the rope
anchor, with end of starter rope firmly against end
of channel. Press the anchor into the handle.
Check operation of the starter pawl when the
starter rope is pulled out. The starter pawl should
extend when the starter rope is pulled and retract
when the starter rope recoils.
RECOIL STARTER
INSTALLATION
Apply Nut Lock to the threads of starter ratchet
screws. Install washers and ratchet on flywheel.
Tighten screws to a torque of 120 to 144 in. lbs.
(13.5 to 16 N·m).
Place the starter assembly onto the outboard.
Install the starter housing retaining screws, wash-
ers, and lock washers. Be sure to place washers
between the starter housing and the flywheel
cover. Apply Ultra Lock to threads and tighten the
three starter housing screws to a torque of 120 to
144 in. lbs. (14 to 16 N·m).
Install clamp for oiling system wiring harness.
007858
006654
1. Starter housing screws (3)
2. Clamp
002515
1
2
1
1
