MANUAL STARTER
RECOIL STARTER ASSEMBLY
Install the starter pawl plate retaining screw and
washer into the starter housing. Tighten screw to
a torque of 96 to 120 in. lbs. (11 to 13.5 N·m).
Spray threads of starter pawl plate retaining screw
and nut with Locquic Primer. Apply Nut Lock to the
threads of the nut. Install and tighten the nut
securely.
Install the rope guide and pulley support to the
starter housing. Tighten the screws securely.
If removed, install the starter handle bracket to the
starter housing. Tighten screws securely.
Tie a knot in one end of the starter rope. With the
starter housing upside down on a bench, wind the
pulley counterclockwise until the rewind spring is
tight.
Back off the rewind spring until the rope cavity of
the pulley is aligned with the rope guide. Thread
the starter rope through the pulley, rope guide,
and outlet in the starter handle bracket.
Seat the knotted end of the starter rope in the pul-
ley. Tie a slip knot in the starter rope to hold rope
in position.
Apply Triple-Guard grease or Lubriplate 777 to the
handle end of the starter rope. Using Starter Rope
Threading Tool, P/N 378774, thread the starter
rope through the handle.

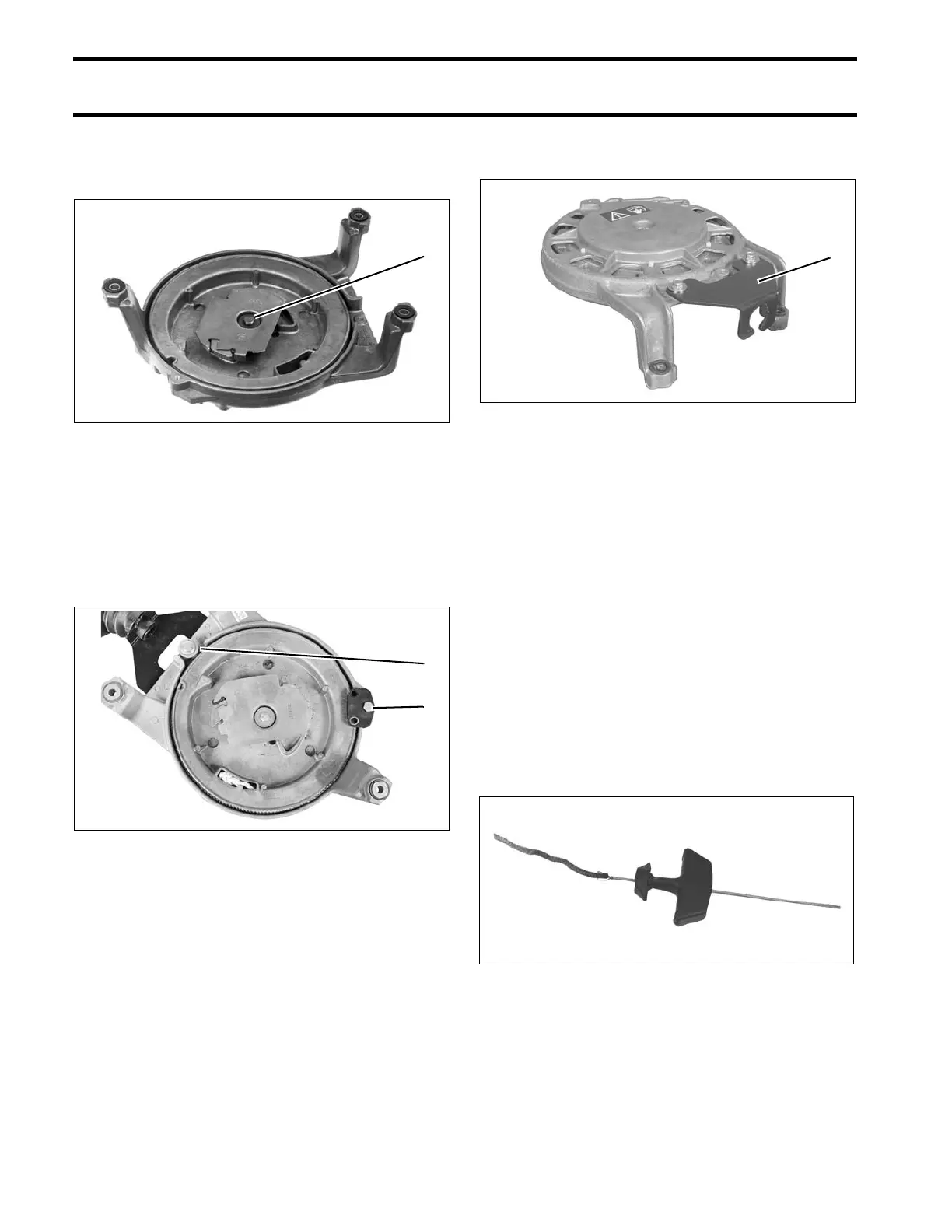

1. Screw COA1375
1. Rope guide
2. Pulley support
007854
1
1
2
1. Starter handle bracket 002517
COA1373
1
