272
MIDSECTION
TILLER HANDLE SERVICE – STANDARD

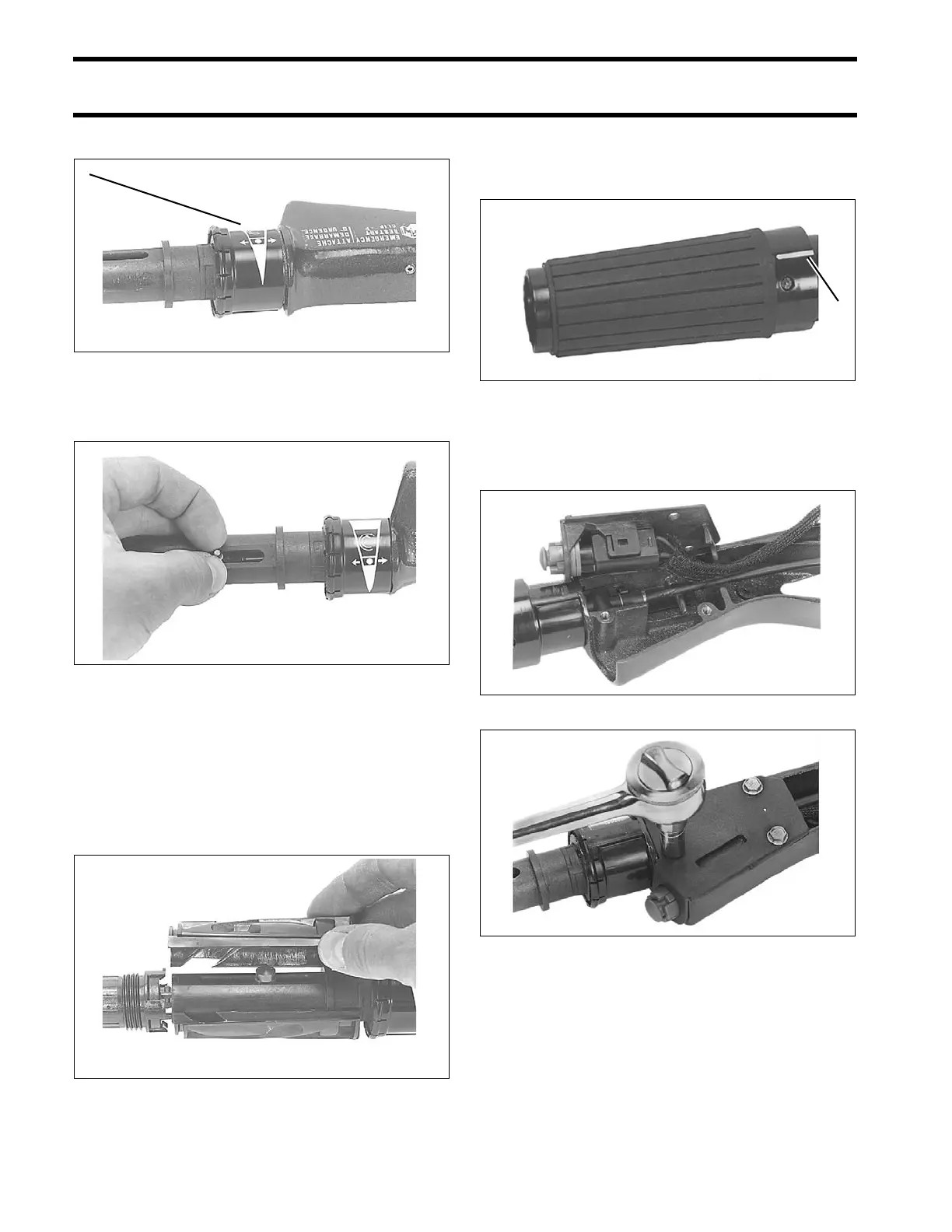

Install the throttle control plate on outer handle.
Push the throttle cable pin through the end of the
throttle cable.
Lubricate end of the pin, guides, rollers, helix
grooves, and inner handle guide slot with Moly
Lube. Place the guides over the roller pin and into
the slots of the inner handle. Place the rollers on
the ends of the roller pin. Assemble the helix
halves on the handle and slide the grip over the
helix.
Be sure the twist-grip's speed indicator line is
positioned with the speed range symbol on the
handle. Snap the grip into place.
Slide the protective sleeve over the stop switch
leads and throttle cable and install stop switch
cover.
1. Throttle control plate 24295
24294
24293
1. Indicator line 002190
24291
24288
