BRP EVINRUDE E-TEC E90DSLAA Series User Manual

366
MANUAL STARTER

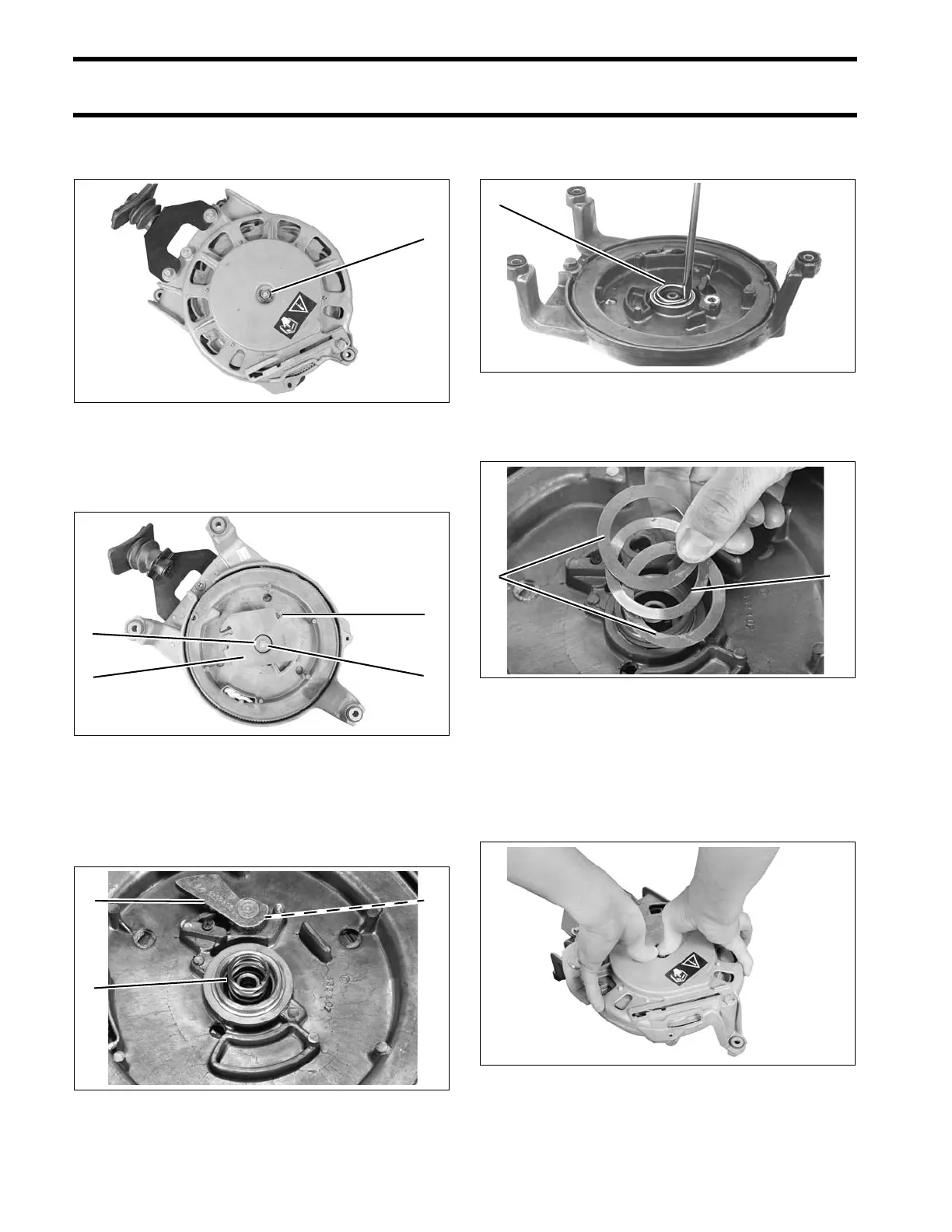

RECOIL STARTER DISASSEMBLY
Remove the nut from the starter pawl retaining
screw.
Remove the starter pawl retaining screw, washer,
and starter pawl plate with plate return spring from
the starter assembly.
Remove starter housing spring and starter pawl
with spring washer from the starter assembly.
Use a screwdriver to pry open the pulley lock ring,
and remove ring from the starter.
Remove the friction plates and friction plate spring
washer.
Hold the pulley in the starter housing while turning
the starter over, legs down. Hold fingers clear of
the pulley and jar the starter housing against a
bench to dislodge the rewind spring and pulley.
Remove the pulley bushing from the pulley.
1. Nut 007855
1. Screw
2. Washer
3. Plate
4. Spring
007856
1. Spring
2. Starter pawl
3. Spring washer (under starter pawl)
34855
1
4
1
2
3
32
1
1. Lock ring COA1368
1. Friction plates
2. Friction plate spring washer
34854
007857
1
21
