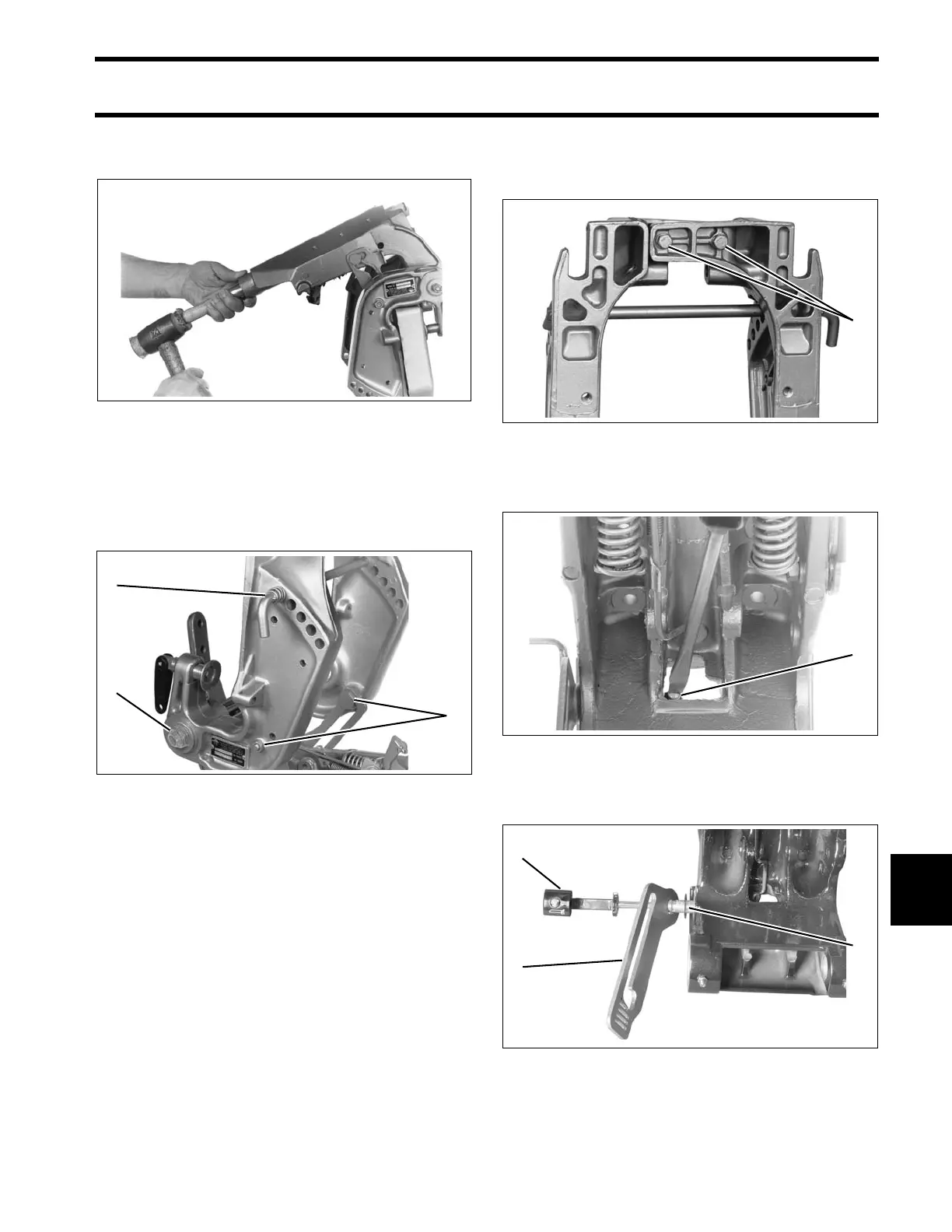

MIDSECTION
STERN BRACKET, 40 HP MANUAL TILT
11
Drive the steering friction bushing up and out of
the swivel bracket.
Remove the thrust rod from the stern brackets.
Remove one tilt tube nut, and remove tilt tube
from the stern brackets and swivel bracket.
Remove the port and starboard stop link screws
and nuts from the stern brackets.
Remove the two stern bracket flange screws and
separate the stern brackets from the swivel
bracket.
Place the tilt/run lever in the RUN position.
Loosen the bellcrank setscrew.
Remove the tilt/run lever, port stop link, and bush-
ing from the swivel bracket.
COA2974
1. Thrust rod
2. Tilt tube nut
3. Stop link screw and nut
COA2991R
3
1
2
1. Flange screws COA2992
1. Bellcrank setscrew COA2976
1. Tilt/run lever
2. Port stop link
3. Bushing
002204
1
1
3
1
2
