MIDSECTION
STERN BRACKET, 40 HP MANUAL TILT

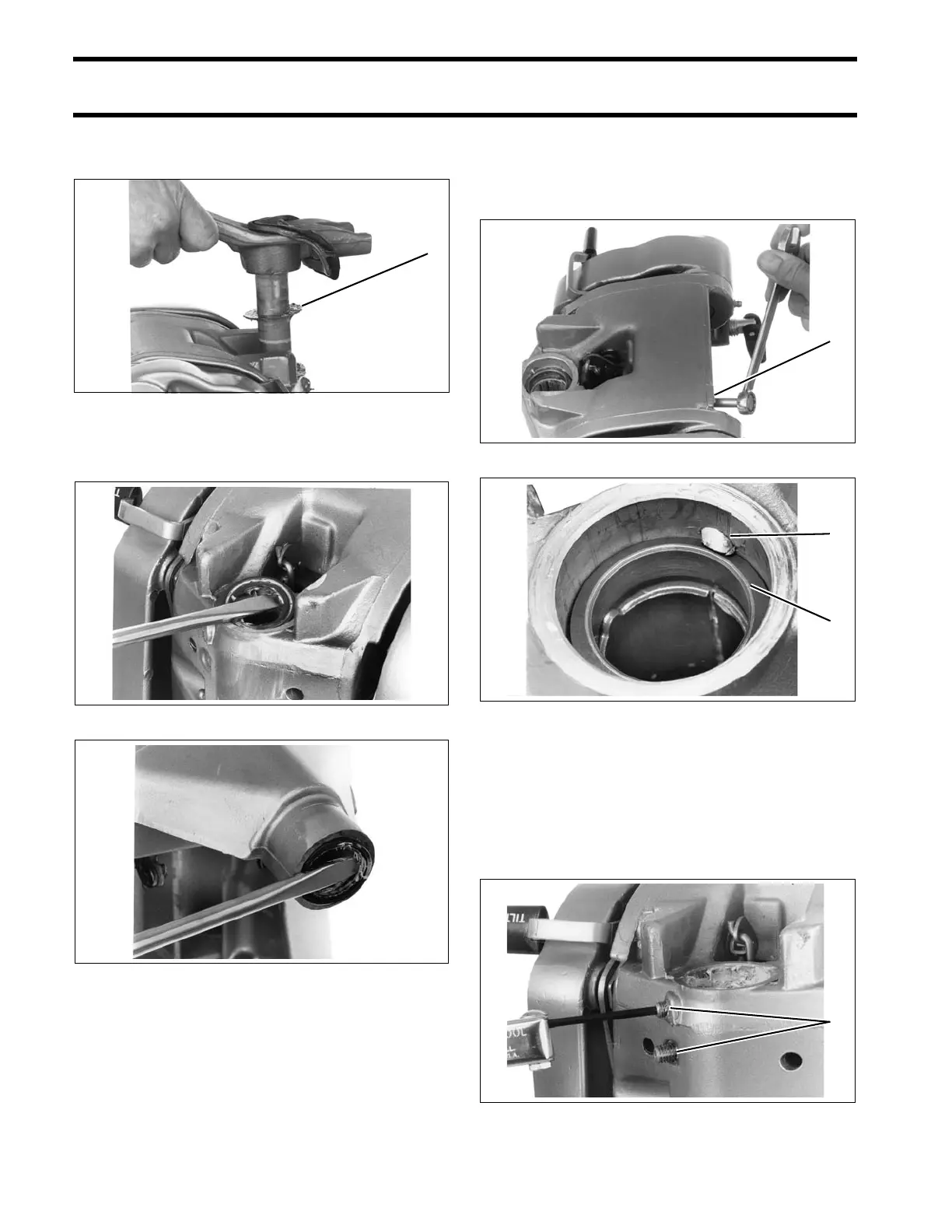

Slide the pivot shaft and upper thrust washer out
of the swivel bracket.
Use an appropriate tool to pry the upper and lower
seals from the swivel bracket.
Loosen the steering friction screw while pushing
outward on the steering friction pin. When the pin
is flush with the inside surface of the casting,
remove the steering friction thrust ring.
Tighten the steering friction screw until the steer-
ing friction pin can be removed. Then, remove the
steering friction screw.
Remove the two setscrews from the swivel
bracket.
1. Upper thrust washer COA2956
COA2957
COA2958
1
1. Steering friction screw COA2959
1. Steering friction pin
2. Steering friction thrust ring
COA2988
1. Setscrews COA2961
1
1
2
1
