BRP EVINRUDE E-TEC E90DSLAA Series User Manual

253
MIDSECTION
EXHAUST HOUSING, 75 – 90 HP
11

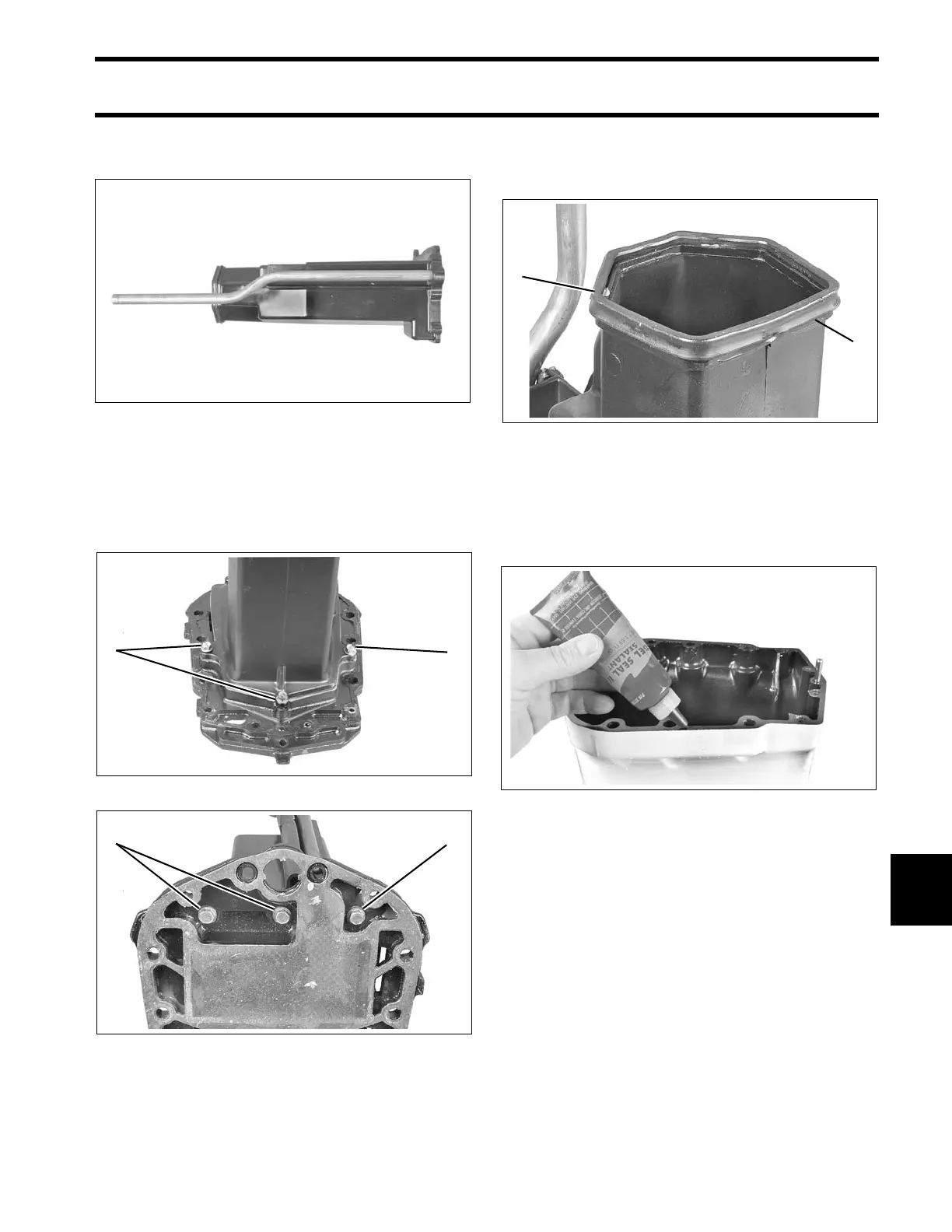

Install the water tube through the top of the inner
exhaust housing and align as shown:
Place a new gasket between the inner exhaust
housing and the adapter housing. Apply Ultra
Lock to the screws. Install the three lower screws
and three upper screws and tighten to a torque of
60 to 84 in. lbs. (7 to 9.5 N·m).
Apply Adhesive 847 to the bottom flange of the
inner exhaust housing. Install a new seal. Apply
Triple-Guard grease to outer seal surface.
Clean and degrease the adapter housing and
outer exhaust housing mating surfaces with
Cleaning Solvent. Apply Gel-Seal II sealant to the
adapter flange of the exhaust housing.
Place the adapter/inner exhaust housing into the
exhaust housing. Guide the water tube through
001982
1. Lower inner exhaust housing screws 001974
1. Upper inner exhaust housing screws 001975
11
11
1. Seal
2. Bottom flange
001973
001983
2
1
