OILING SYSTEM
OIL COMPONENT SERVICING
3-CYLINDER MODELS
Install oil pump and manifold straight into oil tank.
IMPORTANT: Be sure oil pick up assembly is
positioned in front of oil tank baffle to prevent
interference with the LOW OIL switch.
ALL MODELS
Install oil pump retainer screw(s). Tighten
securely.
IMPORTANT: Turn self-tapping screws counter
clock-wise to start the threads and clockwise to
tighten. Failure to follow this procedure can dam-
age the threads of the oil tank.

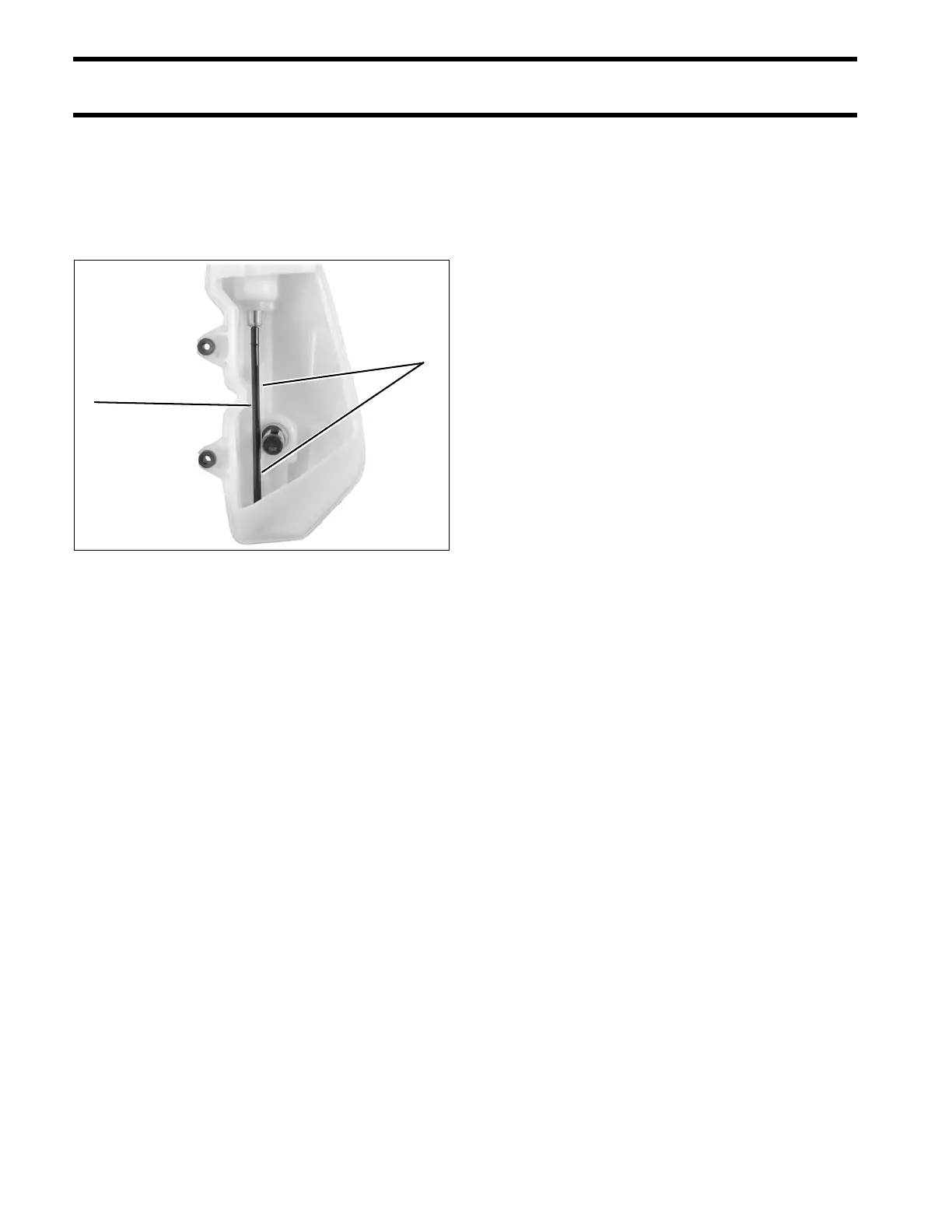

1. Oil pick up assembly
2. Oil tank baffle
008183
