208
POWERHEAD
POWERHEAD ASSEMBLY

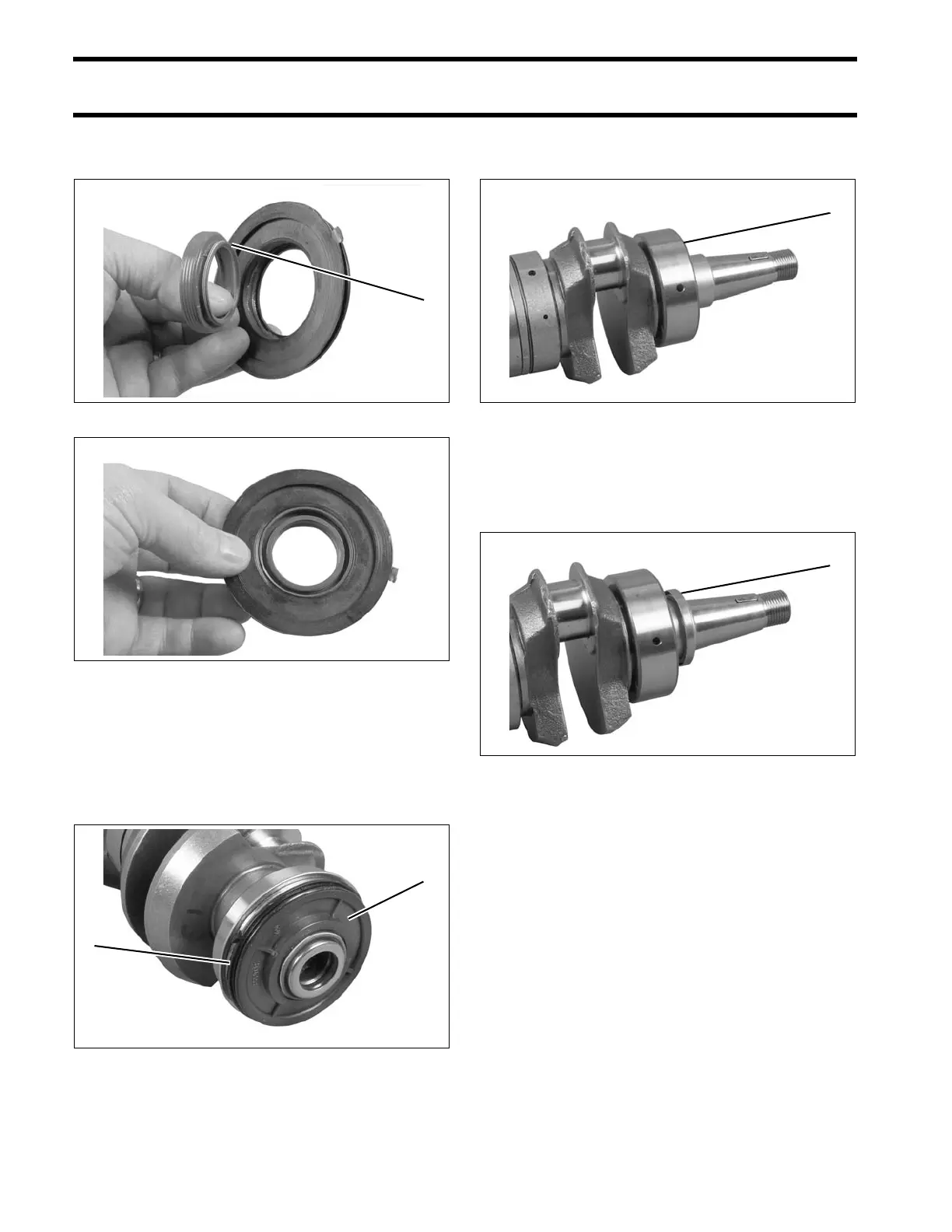

lower housing with extended lip facing down.
Lubricate seal lip with Triple-Guard grease.
Install a new O-ring on the lower housing. Before
installing crankshaft into cylinder block, apply a
thin coat of Gasket Sealing Compound to outer
edge of O-ring.
Place lower seal housing on crankshaft.
Lubricate upper main bearing with outboard lubri-
cant and install on crankshaft.
Pack lip of upper oil seal with Moly Lube. Place
seal on crankshaft with lip down and enclosed
face up. Do not apply sealer to outside edge of the
seal.
1. Seal lip 002036
002037
1. Lower seal housing
2. O-ring
002038
1. Upper main bearing 002033
1. Upper oil seal 002034
