BRP EVINRUDE E-TEC E90DSLAA Series - Page 243

MIDSECTION
SERVICE CHARTS
243
11

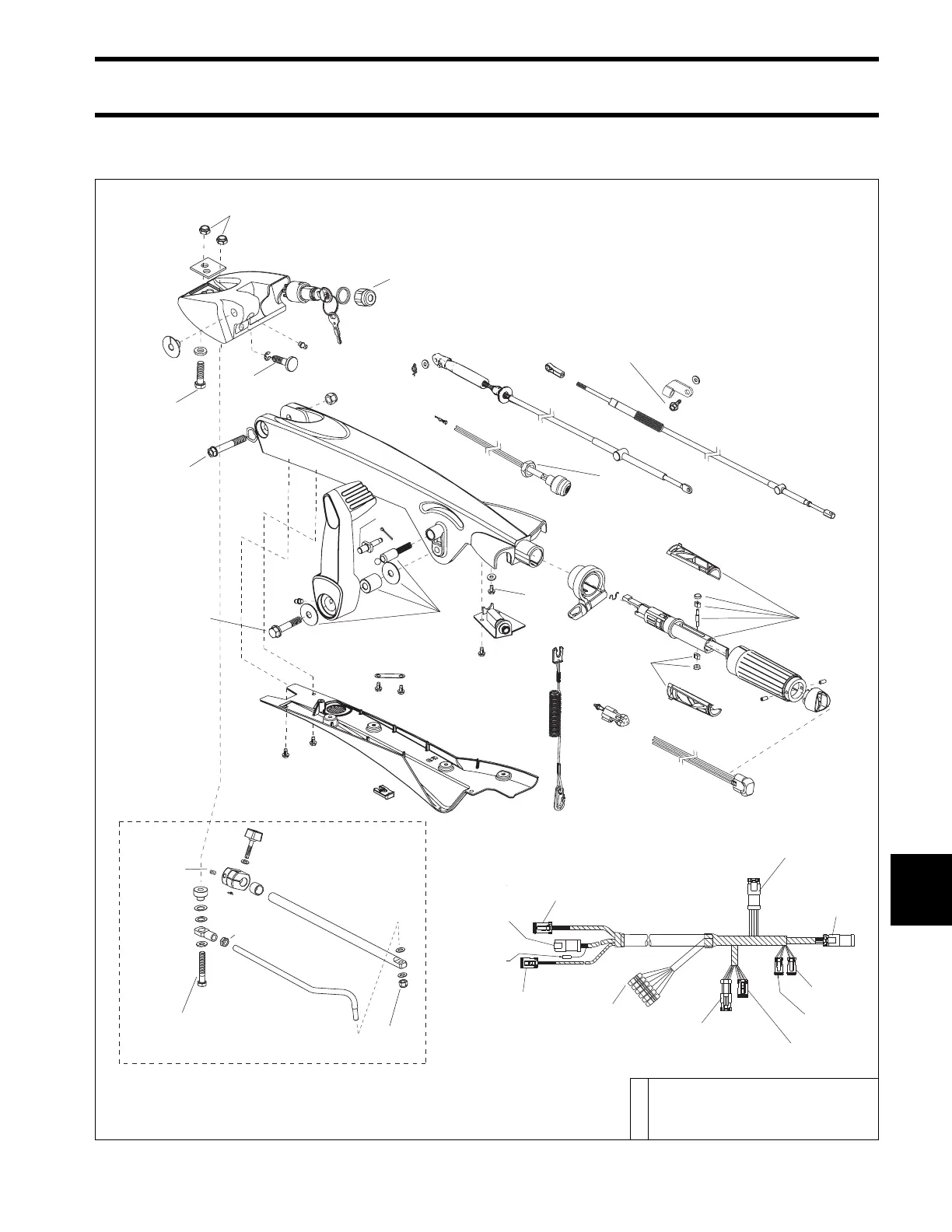

TILLER HANDLE (LONG)
A Triple-Guard Grease
D Moly Lube
F Blue Nut Lock
006663
18-20 Ft. lbs.
(24.5-27 N·m)
18-20 Ft. lbs.
(24.5-27 N·m)
18-20 Ft. lbs.
(24.5-27 N·m)
60-84 In. lbs.
(7-9.5 N·m)
18-20 Ft. lbs.
(24.5-27 N·m)
20-30 In. lbs.
(2.3-3.4 N·m)
36-48 In. lbs.
(4-5.4 N·m)
36-40 Ft. lbs.
(49-54 N·m)
18-20 Ft. lbs.
(24.5-27 N·m)
24-36 In. lbs.
(2.7-4 N·m)
A
F
F
F
A
A
D
D
18-20 Ft. lbs.
(24.5-27 N·m)
Switched 12V
For CANbus
To Engine Key
Switch Connector
To Engine Trim
Connector
To Engine SystemCheck
Connector
Tiller Key Switch
To Remote
Trim Gauge
To Remote
SystemCheck Harness
To Remote
Key Switch
Stop Switch
Start Switch
Trim Switch
Steering Friction Device
Optional on 2-Cylinder Models
