STERN BRACKET, 75 – 90 HP POWER TILT

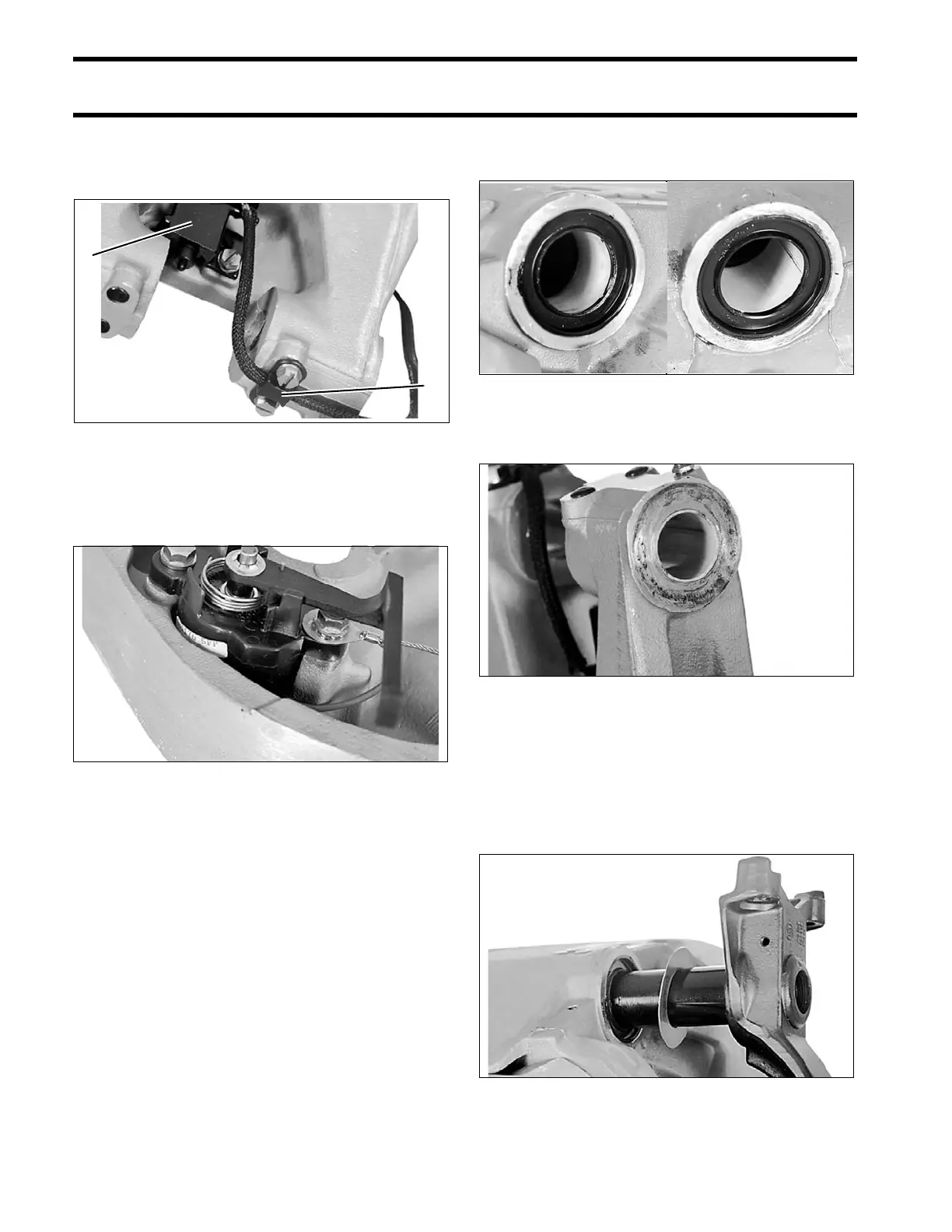

Install the tilt limit switch and retainer on the swivel
bracket. Tighten screws to a torque of 40 to 50 in.
lbs. (4.5 to 5.5 N·m).
Route the trim sender wires through the braided
tube, and install the sender unit in the port stern
bracket.
Install the upper and lower steering shaft bushings
and new seals in the swivel bracket. Both seal lips
face out.
• Coat the outside surfaces of seals with Gasket
Sealing Compound.
• Coat the bushings and seal lips with Triple-
Guard grease.
Coat tilt tube bushings with Triple-Guard grease
and, if removed, install them in the swivel bracket.
Place the swivel bracket between the stern brack-
ets and install the anode.
Install the tilt tube and tilt limit cam. Refer to TILT
TUBE, 75 – 90 HP on p. 244.
Install the steering shaft and thrust washer.
