266

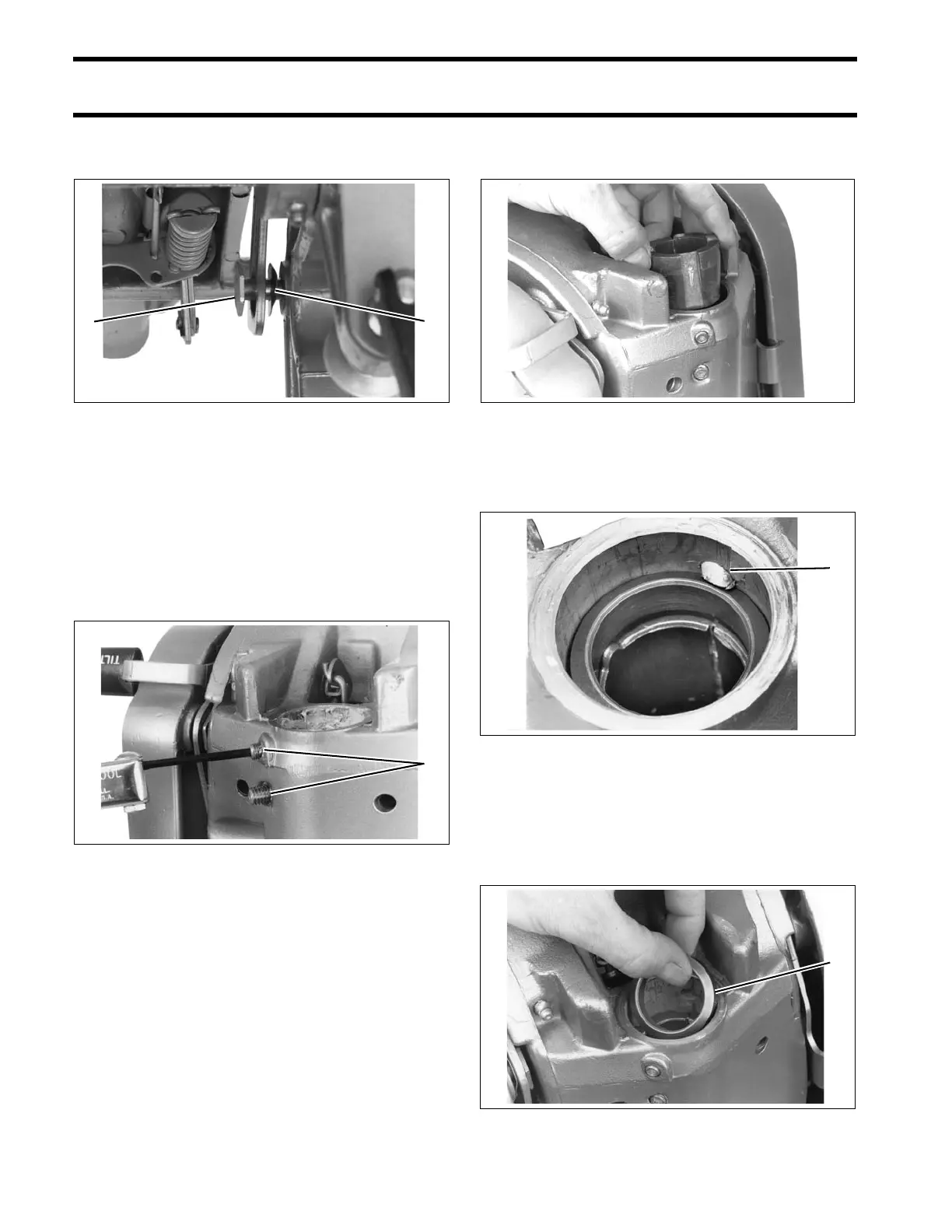

MIDSECTION
STERN BRACKET, 40 HP MANUAL TILT
Install and tighten the nut to a torque of 144 to 168
in. lbs. (16 to 19 N·m).
Install the smaller shoulder screw through the
starboard stop link and stern bracket. Install and
tighten the nut to a torque of 144 to 168 in. lbs. (16
to 19 N·m).
Apply Ultra Lock to threads of large setscrews.
Install the screws in the swivel bracket so that one
thread remains outside the casting.
Place the steering friction bushing in the swivel
bracket with groove in line with the setscrews.
Apply Triple-Guard grease to the steering friction
pin. Install the pin in the swivel bracket flush with
inside surface. The pin should point up.
Install the steering friction thrust ring, bevel side
up, in the swivel bracket. Thread the steering fric-
tion screw in the swivel bracket. Turn the screw
until the steering friction pin makes contact with
top of the thrust ring. Do not tighten the screw.
1. Port stop link screw
2. Wave washer
COA2984
1. Setscrews COA2961
21
1
COA2986
1. Steering friction pin COA2988
1. Steering friction thrust ring COA2987
1
1
