284
MIDSECTION

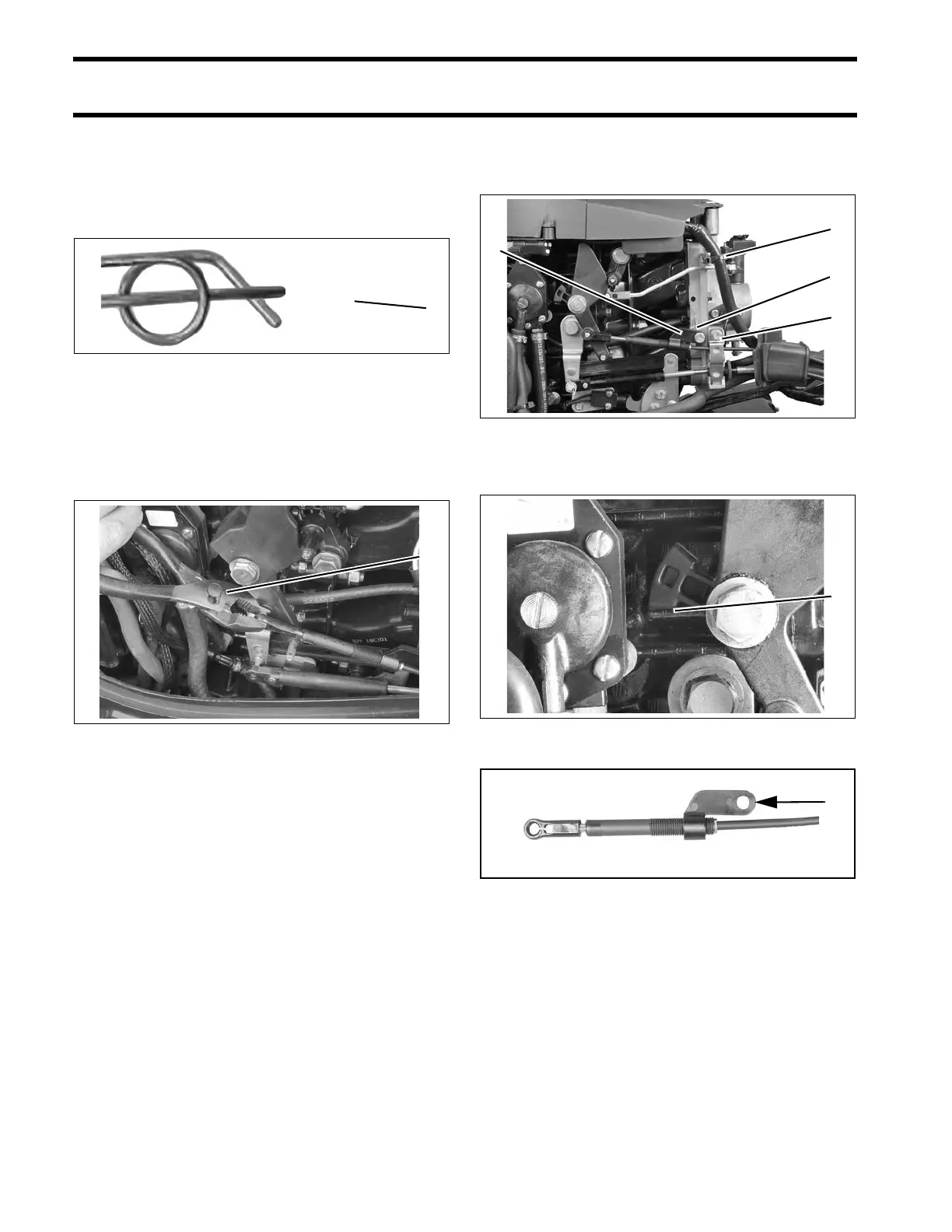

TILLER HANDLE SERVICE – LONG HANDLE
• Push the clip towards the hole while lifting on
the curved end with the pliers.
• Be sure retainer clip fully engages the pin.
• Lock the retainer by moving the angled section
behind the straight section.
Throttle Cable Adjustment
Place throttle cable in position. Use Ball Socket
Installer tool, P/N 342225, to snap throttle cable
connector onto throttle lever.
Place throttle cable in upper anchor pocket. Install
cable retainer on anchor block.
Hold twist grip in full SLOW position. Pull firmly on
cable to remove backlash.
Adjust cable anchor so throttle cam is against idle
stop when anchor screw aligns with throttle body
boss. Then, rotate anchor four turns toward the
end of the cable.
Install washer, cable anchor, and cable anchor
screw on throttle body boss. Tighten screw
securely.
IMPORTANT: Rotate twist grip. Make sure
throttle cam goes to full throttle without bending
cable, and still returns to IDLE stop.
Locked Retainer Clip
1. Angled section behind straight section
DP0817a
1. Installer tool 005106
1. Cable anchor
2. Boss
3. Cable retainer
4. Tie strap
006745
1. Throttle lever stop 005114
1. Turn anchor four turns toward cable end. 006564
