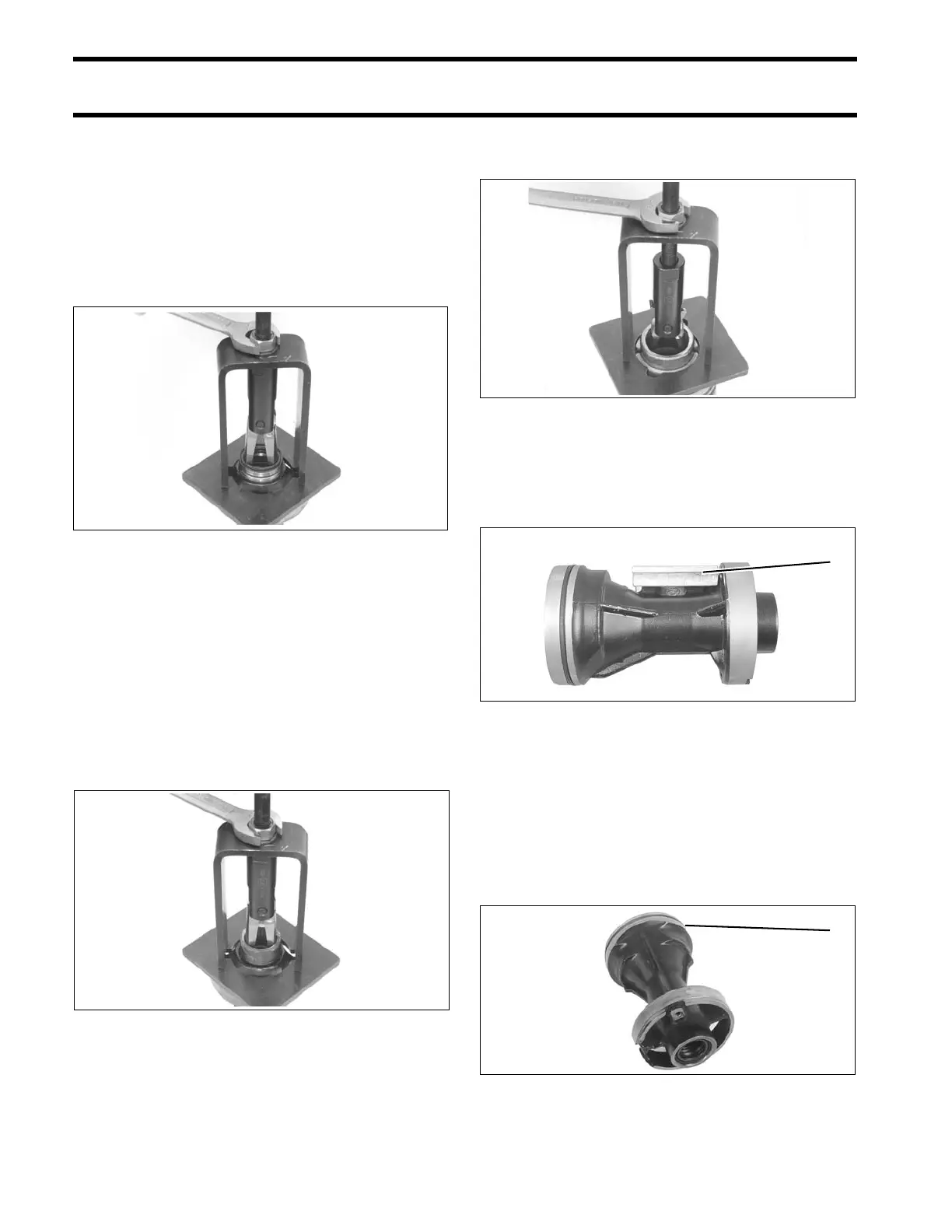

GEARCASE SERVICE, 40 – 60 HP MODELS
SHIFTER, BEARING AND SEAL SERVICE
Propeller Shaft Bearing Housing
Service
Rear Seal Removal
Remove seals using Puller Bridge, P/N 432127,
and Large Puller Jaws, P/N 432129. Place the
plate on top of the housing to support the bridge,
and tighten jaws securely behind the inner seal.
Bearing Removal
IMPORTANT: Inspect bearings in place. If a
bearing is removed for any reason, it must be dis-
carded.
Remove rear bearing using Puller Bridge,
P/N 432127, and Large Puller Jaws, P/N 432129.
Place the puller plate on top of the housing to sup-
port the bridge, and tighten jaws securely behind
the bearing.
Remove front bearing using Puller Bridge,
P/N 432127, and Bearing Puller, P/N 432130.
Place the puller plate on top of the housing to sup-
port the bridge, and tighten jaws securely behind
the bearing.
Inspect the bearing housing anode. Replace
anode if it is reduced to two-thirds of original size.
Tighten screws to a torque of 108 to 132 in. lbs.
(12 to 15 N·m).
Discard the bearing housing O-ring. Clean the
housing and bearings in solvent and dry thor-
oughly. If bearings were not replaced, rotate the
needles to check for freedom of movement.
Inspect O-ring groove. Sand off any sharp edges
that might cut O-ring. Remove any nicks or burrs
on front of bearing housing.
21047
21045
21067
1. Anode 001220
1. O-ring groove DSC02291
1
1
