BRP EVINRUDE E-TEC E90DSLAA Series User Manual

97
ELECTRICAL AND IGNITION
ELECTRICAL HARNESS CONNECTIONS
6

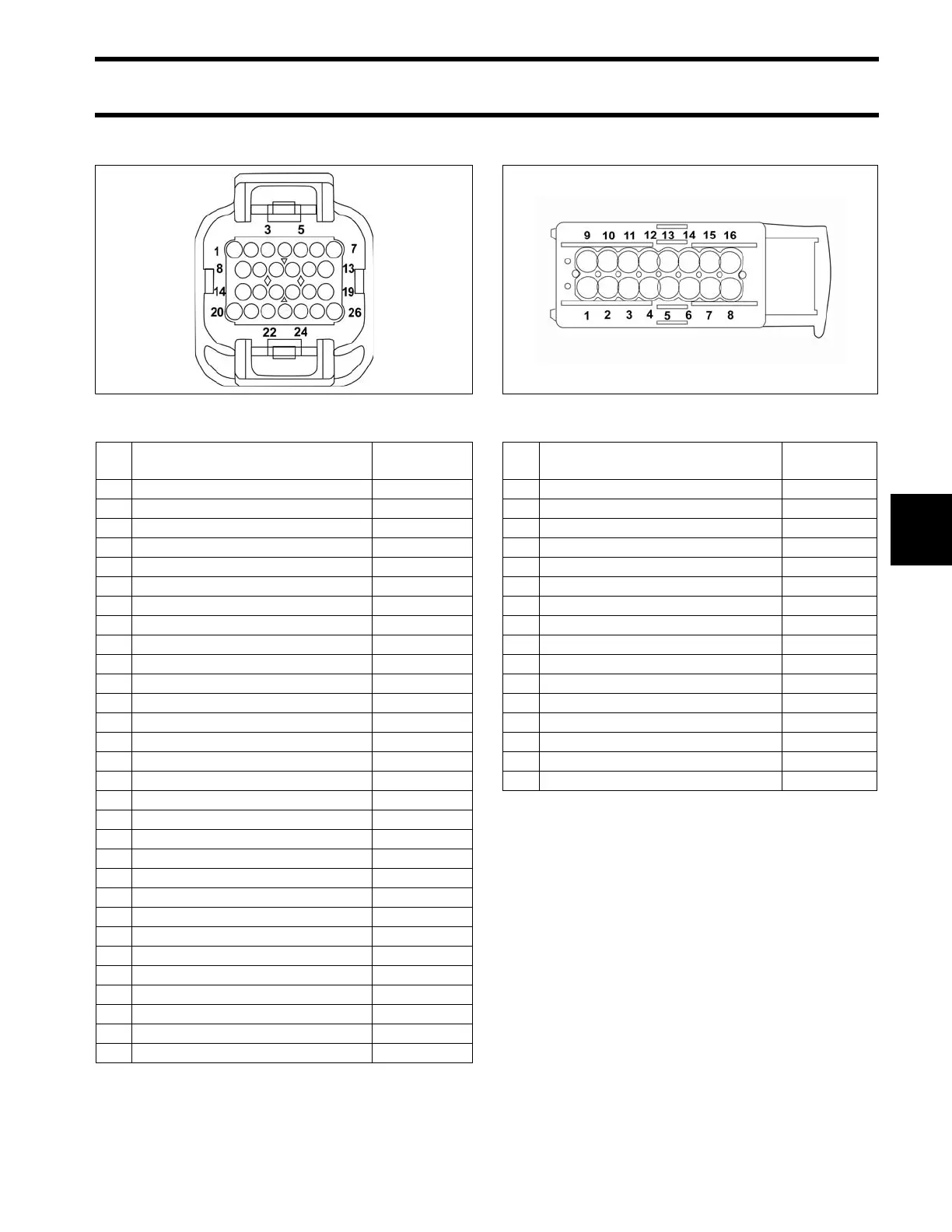

EMM J1-B Connector EMM J2 Connector
001876
Pin
No.
Description of Circuit Wire Color
1 Injector, cylinder 2, 75–90 HP Purple
1 Injector, cylinder 2, 40–65 HP Green
2 Injector, cylinder 3, 75–90 HP Green
2 Exhaust water valve, 60 HP Blue/Red
3 vacant
4 vacant
5 vacant
6 NO OIL signal, SystemCheck Tan/Yellow
7 Ignition, cylinder 3, 75–90 HP Orange/Green
7 vacant, 40–65 HP
8 Injector, cylinder 1 Blue
9 vacant
10 vacant
11 vacant
12 vacant
13 vacant
14 Injector ground Black
15 vacant
16 vacant
17 vacant
18 vacant
19 Ignition, cylinder 2, 75–90 HP Orange/Purple
19 Ignition, cylinder 2, 40–60 HP Orange/Green
20 Injector ground Black
21 Injector ground Black
22 vacant
23 Oil solenoid Blue
24 vacant
25 vacant
26 Ignition, cylinder 1 Orange/Blue
001877
Pin
No.
Description of Circuit Wire Color
1 Stator winding, 1S Yellow
2 Stator winding, 2S Brown
3 Stator winding, 3S Orange
4 Fuel pump control Brown
5 System Ground Black
6 +12 V out Red
7 System Ground Black
8 System Ground Black
9 Stator winding, 1F Yellow/White
10 Stator winding, 2F Brown/White
11 Stator winding, 3F Orange/White
12 Fuel pump (flyback) White/Red
13 +55 V, out White/Red
14 +12 V out Red
15 vacant
16 vacant
