112 (167) BRUKER Installation Manual Version 001

Barcode Reader Option

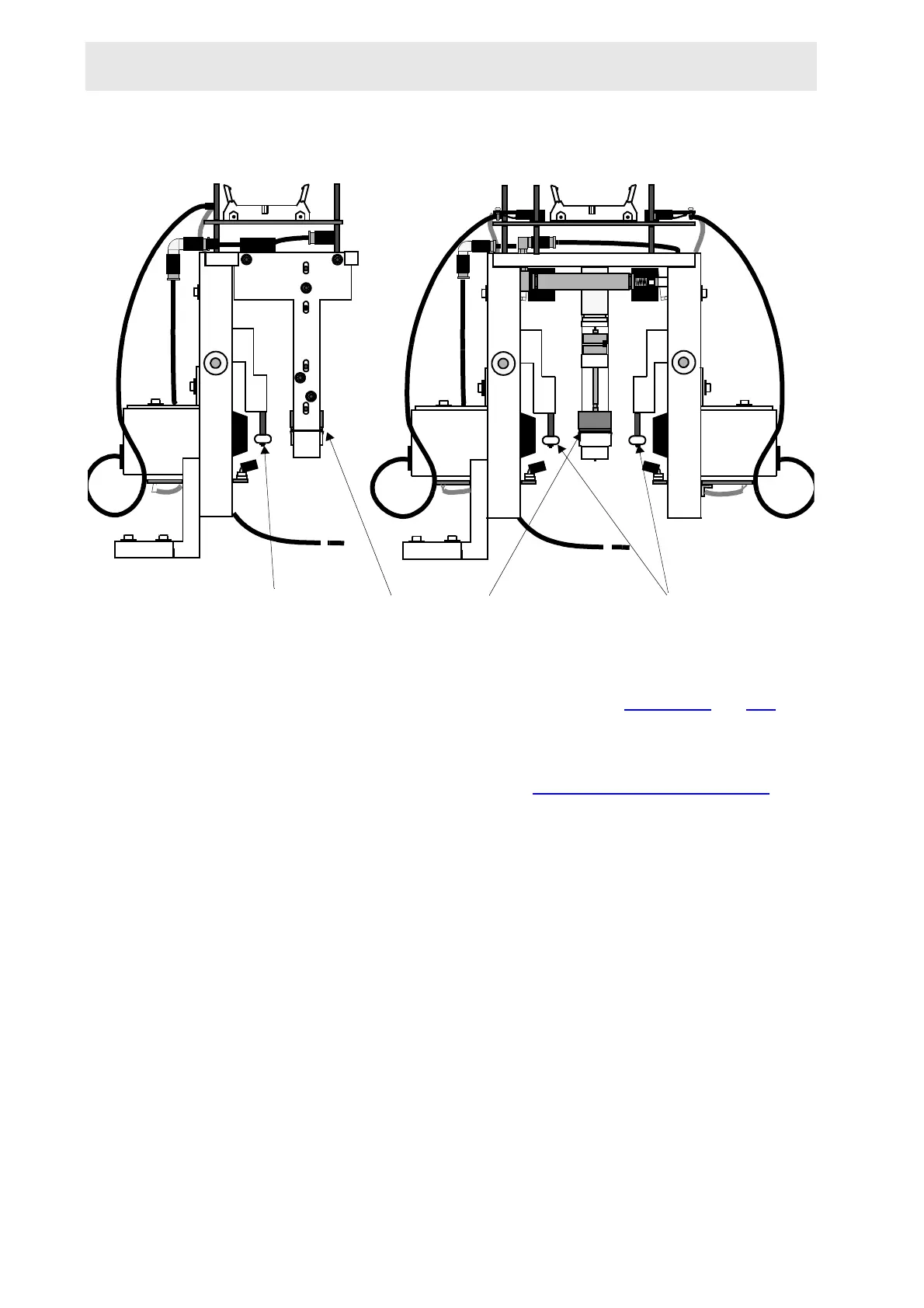

Figure 12.3. Location of the Guide and Drive Wheels

Mounting the Bar Code Pressure Reducer

Mount the Bar Code Pressure Reducer (with manometer) by placing it in the

round hole provided at the top of the cabinet (refer to figures 12.2

and 12.4). Se-

cure the unit with the hexagon nut. Place the pneumatic hose connector with hose

onto the end of the bottom of the pressure reducer and screw it on tightly.

Connect the pneumatic hose (#0) from the bottom of the pressure reducer to the

pneumatic connector (position 0) on the Valves and Motor Control Board

Connect the second pneumatic hose (#0) from the Reader Unit to the upper pneu-

matic hose connector on the pressure reducer.

B-ACS 60

B-ACS 120

Drive Wheels Guide Wheels

Guide Wheels
