130 (167) BRUKER Installation Manual Version 001
Sample Heater Option

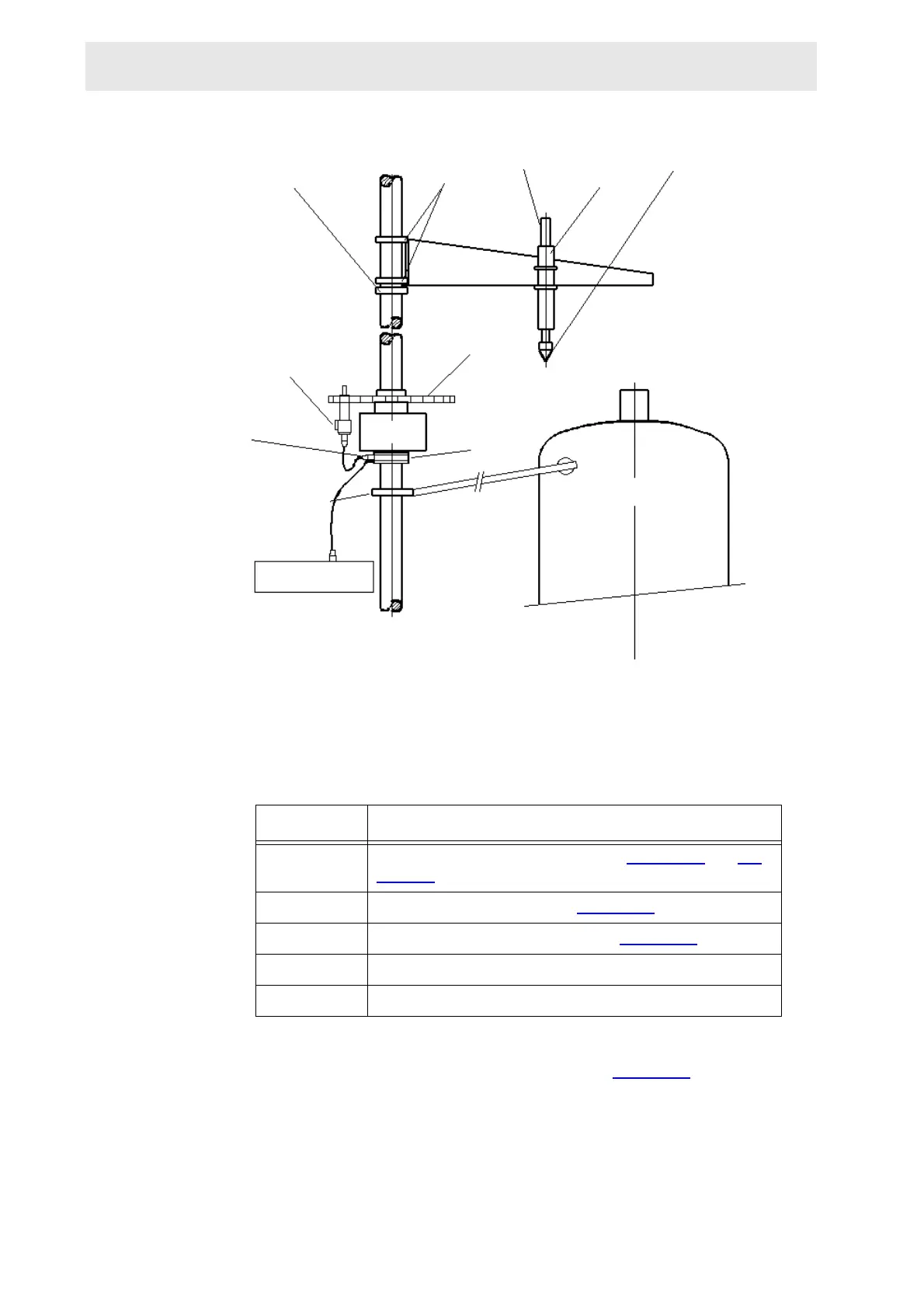

Figure 13.1. B-ACS: Sample Heater Mounted on Cabinet Assembly
For operation of Sample Heaters the following units must be present:
• B-ACS Heater Power Supply Cpl. (Part No. H1491) for DC-supply.
• B-ACS Sample Heaters 120C (Part No. H1385) (figure 13.2).
Table 13.1. B-ACS Heater Supply Kit
Part Number Description
H1455 B-ACS HEATER POWER SUPPLY (figure 13.4
) or (fig-
ure 13.5)
H5806 B-ACS HEATER SUPPLY 2 (figure 13.2)
H5886 B-ACS ROTATING CONNECTOR (figure 13.1
)
H1496 CABLE RD 6P10000
3000 CABLE RD ST NETZ
MAGNET
CABINET
B-ACS HEATER
POWER SUPPLY
PINCHER
VERTICAL
CYLINDER
FIXTURE
RINGS
PISTON
PNEUMATIC ARM
RESTING RING
PNEUMATIC ARM
MAGAZINE BELT
SLIDING RING
TOP FASTENING
RING
B-ACS ROTATING
CONNECTOR
B-ACS HEATER
SUPPLY 2
