32 (167) BRUKER Installation Manual Version 001
Settings and Adjustments
To adjust the horizontal position, loosen the two screws under the bottom support
bracket (Figure 5.5.
). To obtain compensation for guide play, press the top and
bottom brackets together when tightening the mounting screws.

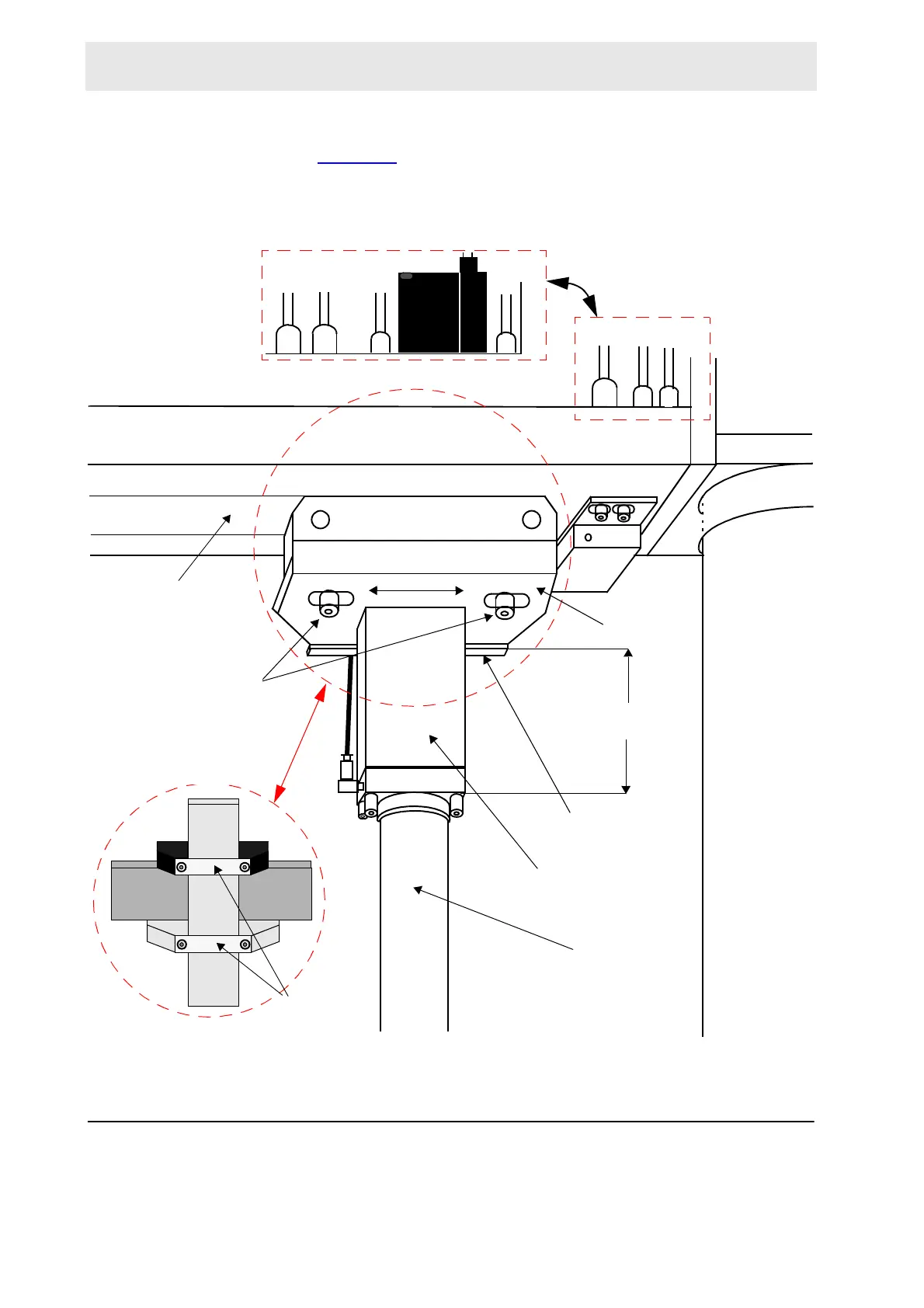

Figure 5.5. Mounting the Vertical Cylinder
Fine Adjustment Procedures 5.3
The following procedures are used as:
1
2
2
CYLINDER FOR
HORIZONTAL
MOTION
HORIZONTAL
SETTING SCREWS
VERTICAL SETTING
VERTICAL CYLINDER BODY
VERTICAL CYLINDER PISTON
90
Rear View
SUPPORT
BRACKETS
SUPPORT
BRACKETS
M60
1
2
2
M120
3
