Mounting the Column Assembly to the Magnet
Installation Manual Version 001 BRUKER 19 (167)

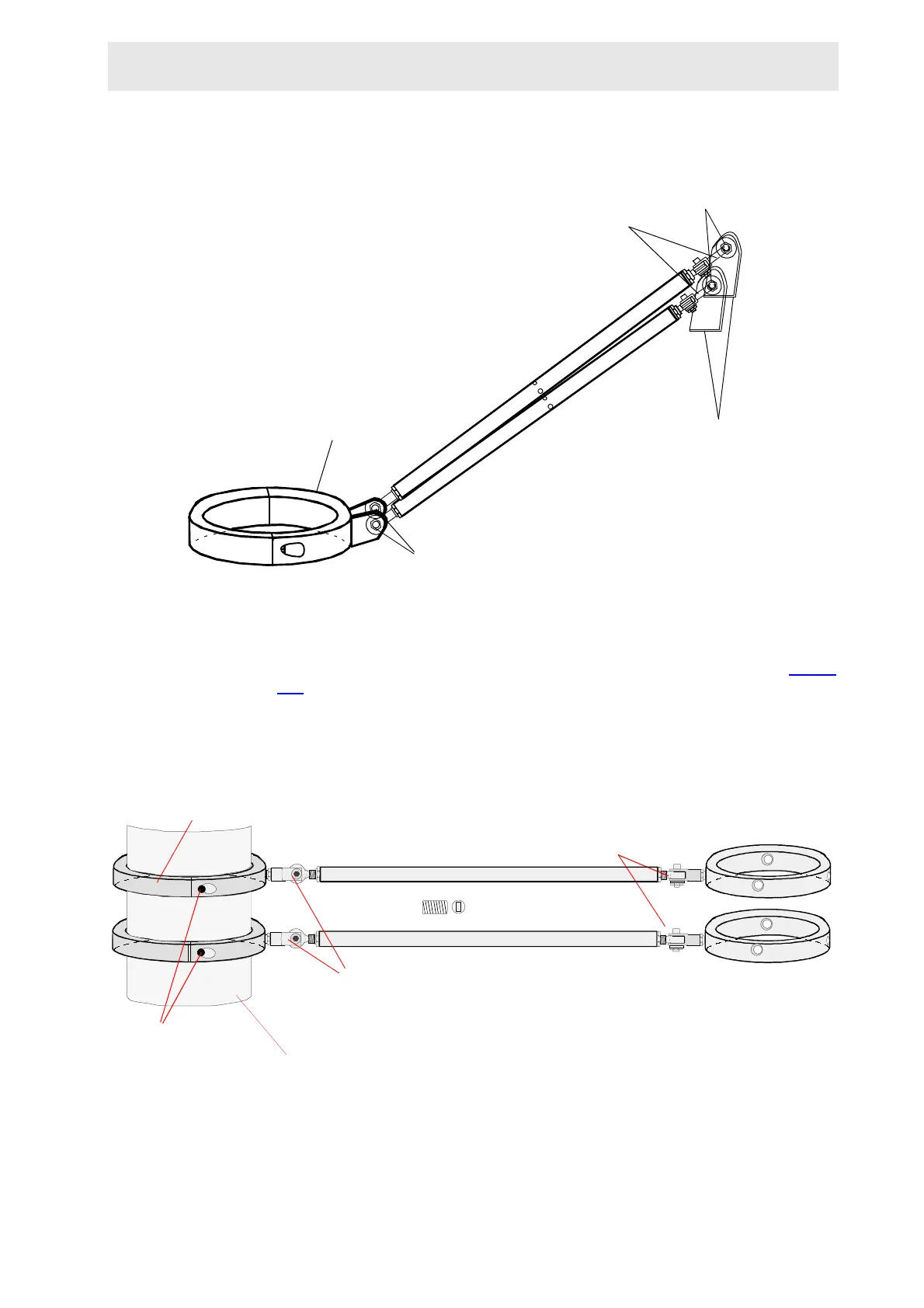

Figure 4.6. Adjustable Arm Assembly for Magnets without N2 Tower
For Magnets with N2 Towers:
Remove the screws from the adjustable arm assemblies for N2 magnets (Figure
4.7.), and move the arm assemblies and column the to the N2 towers. Place the
outer half of the fastening rings around the N2 towers and rescrew the fastening
rings together. Do not tighten the rings until you have completed the step below.
Figure 4.7. Adjustable Arm Assembly for Magnets with N2 Tower
Regardless if you have N2 tower or not, the column should be turned in such a
way that the connections at the bottom are directed towards the magnet
NUTS
AND
BOLTS
MAGNET
LIFTING
LUGS
TOP
FASTENING
RING
NUTS
AND
BOLTS
BRACKET
Top ViewSide View
Plastic Screws (6 pieces)
NUTS
AND
BOLTS
NUTS
AND
BOLTS
Screws
FASTENING RING
Column
To Next Page
