Bruker B-ACS 60 - Pneumatic Arm Adjustment; Figure 5.3. Sample in Pincher on Top of Shim System

To Next Page

To Previous Page

Mechanical Settings

Installation Manual Version 001 BRUKER 29 (167)

Pneumatic Arm Adjustment 5.2.1

For all of the following settings use a 5 mm φ dummy sample (supplied with the B-

ACS accessories). The tube should be fitted in a spinner like any normal 5 mm

sample.

Caution: Make sure the arm is in the up position before moving inwards (towards

the magazine) or outwards (towards the magnet).

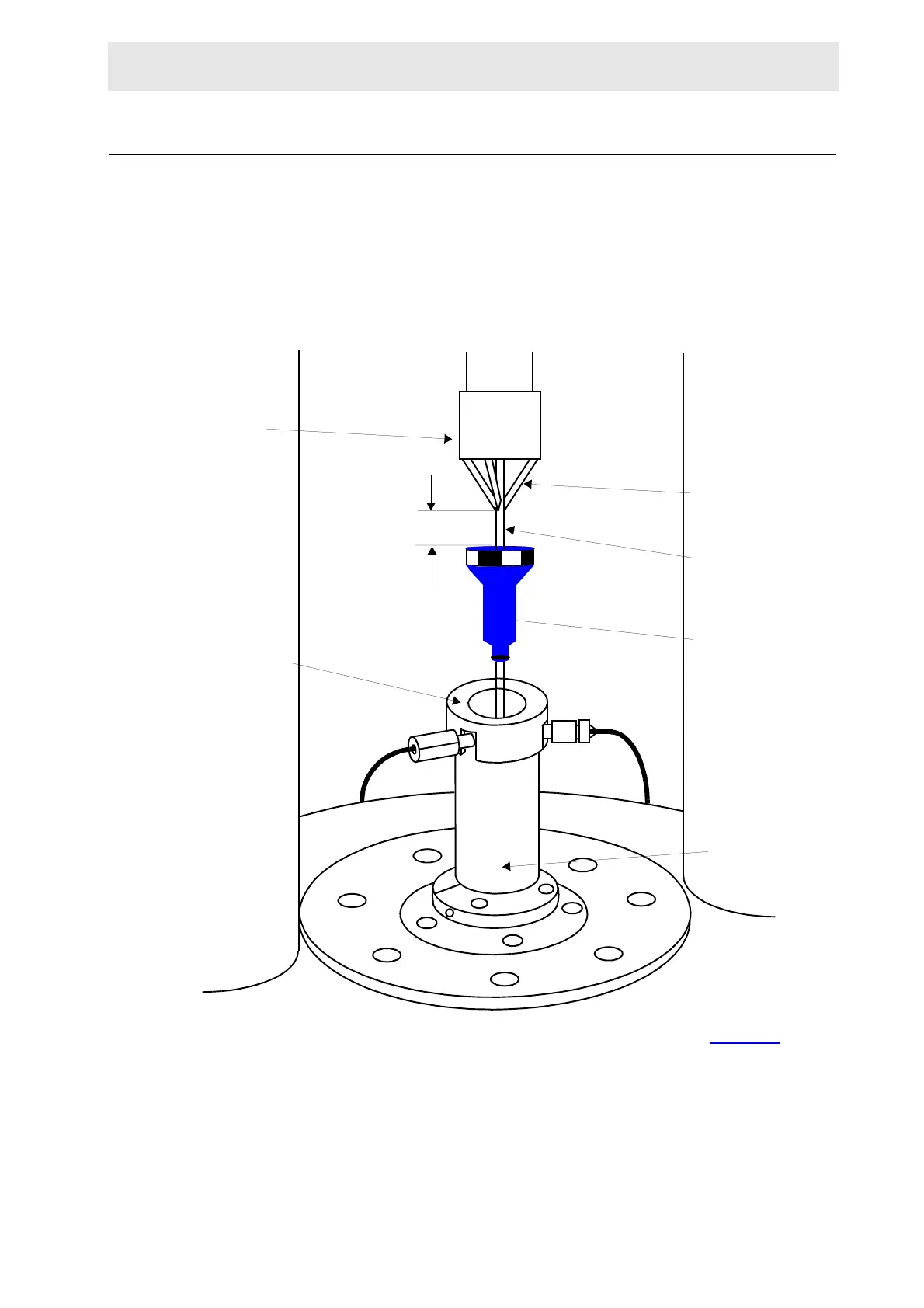

Figure 5.3. Sample in Pincher on Top of Shim System

Perform the following tasks with the manual switches shown in figure 5.1

Arm up. (ARO)

Pincher Open. (ZAUF)

Put the sample in the pincher and close it.

MAGNET

SHIM

SYSTEM

LIGHT BARRIER

CYLINDER (at the

Magnet)

SPINNER

SAMPLE

CLAW

PINCHER

25 mm
