Installation Manual Version 001 BRUKER 83 (167)
Mounting the Light Barrier Cabinet on the Magazine 11.3.3
Mounting Instructions
Remove the rear panel of the cabinet assembly. Remove the rear panel of the
light barrier cabinet. Fasten the light barrier cabinet onto the top of the Magazine
Cabinet Assembly as shown in figure 11.16.

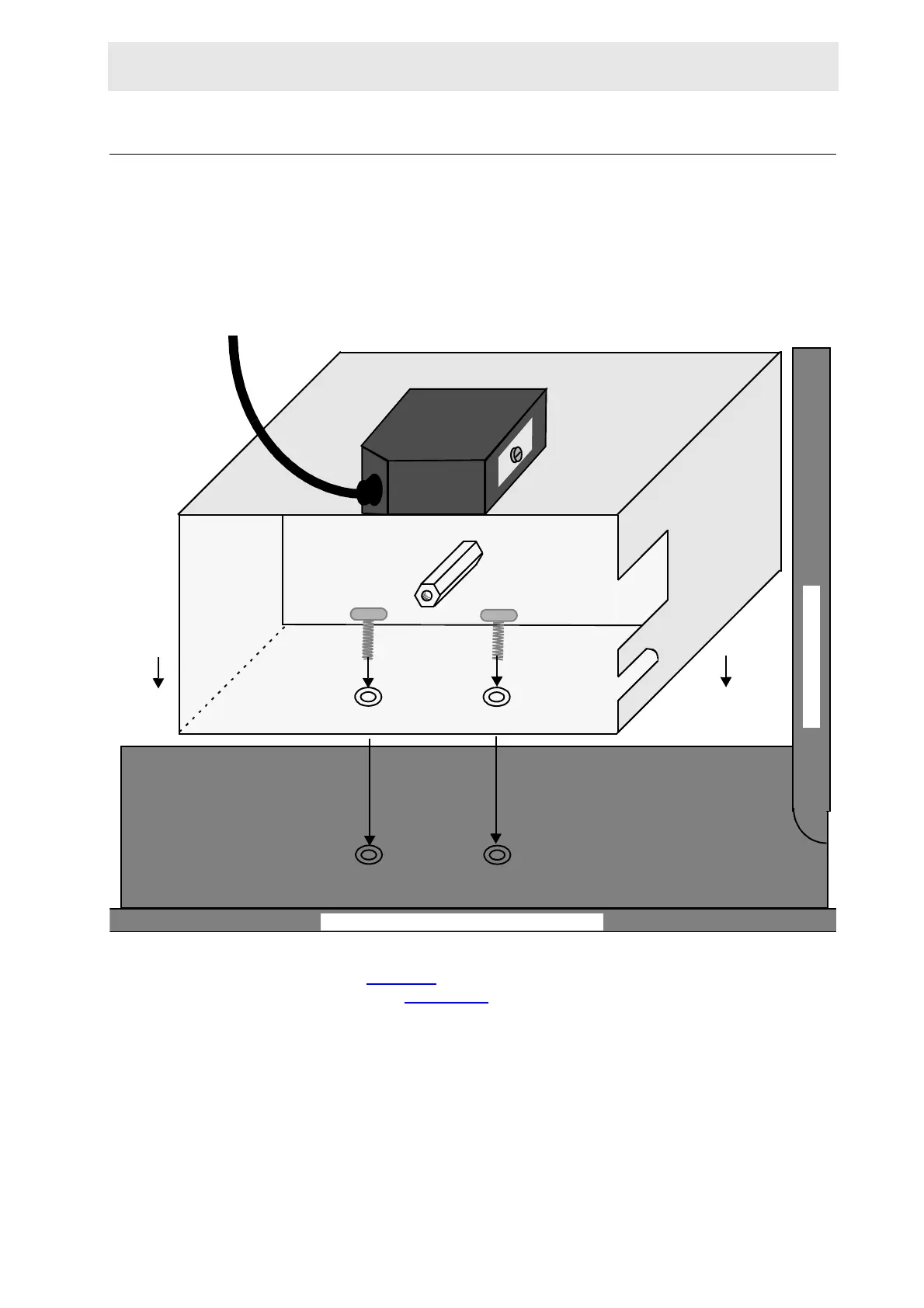

Figure 11.19.Mounting the Light Barrier Cabinet on the Cabinet Assembly
Place the position switch cables through the opening at the top of the cabinet as
illustrated in figure 4.6
. Connect the two cables (No. 4 and No. 6) to the Sensor
Connector Board (figure 11.11
) as follows:
Position Switch (cable 4)Plug No. 4POSIG
Light Barrier at Magazine (cable 6)Plug No. 6LIMA
Top of Magazine Cabinet Assembly
Column Assembly
