Installation Manual Version 001 BRUKER 15 (167)

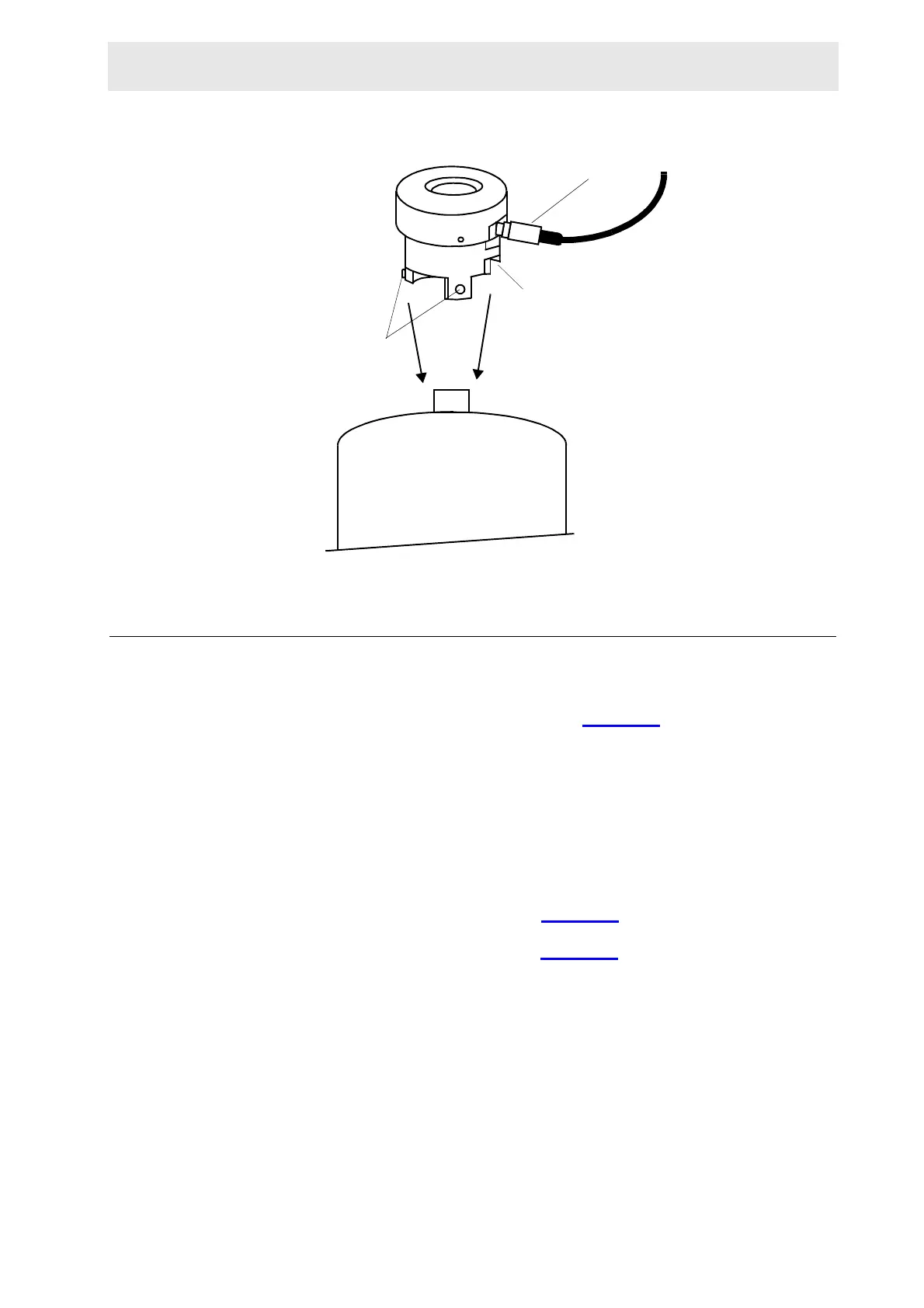

Figure 4.3. Light Barrier for the Shim System
Mounting the Cabinet 4.4
The sample changer cabinet is fitted with a display unit on the front side. The rear
side is the side that faces the magnet. Remove the two rear side panels from the
rear of the cabinet. The cabinet is fixed to the column by a cylindrical collar. Loos-
en the screws from the top cylindrical collar (Figure 4.4.
) before mounting the unit
onto the column.
Place the cabinet on its side on a soft surface such as a blanket or carpet. This
position will make it easier to slide the column through the cabinet. Open the front
panel of the cabinet by loosening the screws.
Note: The top end of the round column piece is the end with the shortest distance
from the side opening to the end of the column piece.
Insert the top end of the round column piece from the bottom side of the cabinet
into the cabinet cylindrical collar, pushing it through until the side opening on the
column disappears inside the cabinet (Figure 4.4.
). Mount the cabinet resting ring
between the side opening and the cylindrical collar. Tighten both the resting ring
and the collar in the position shown in Figure 4.4.
.
MAGNET
SIDE SCREWS
SIDE SCREW
CONNECTOR
To Next Page
