30 (167) BRUKER Installation Manual Version 001
Settings and Adjustments
The arm should now be holding the sample. Adjust the sample so that it hangs
loosely (figure 5.3, 5.4)
.

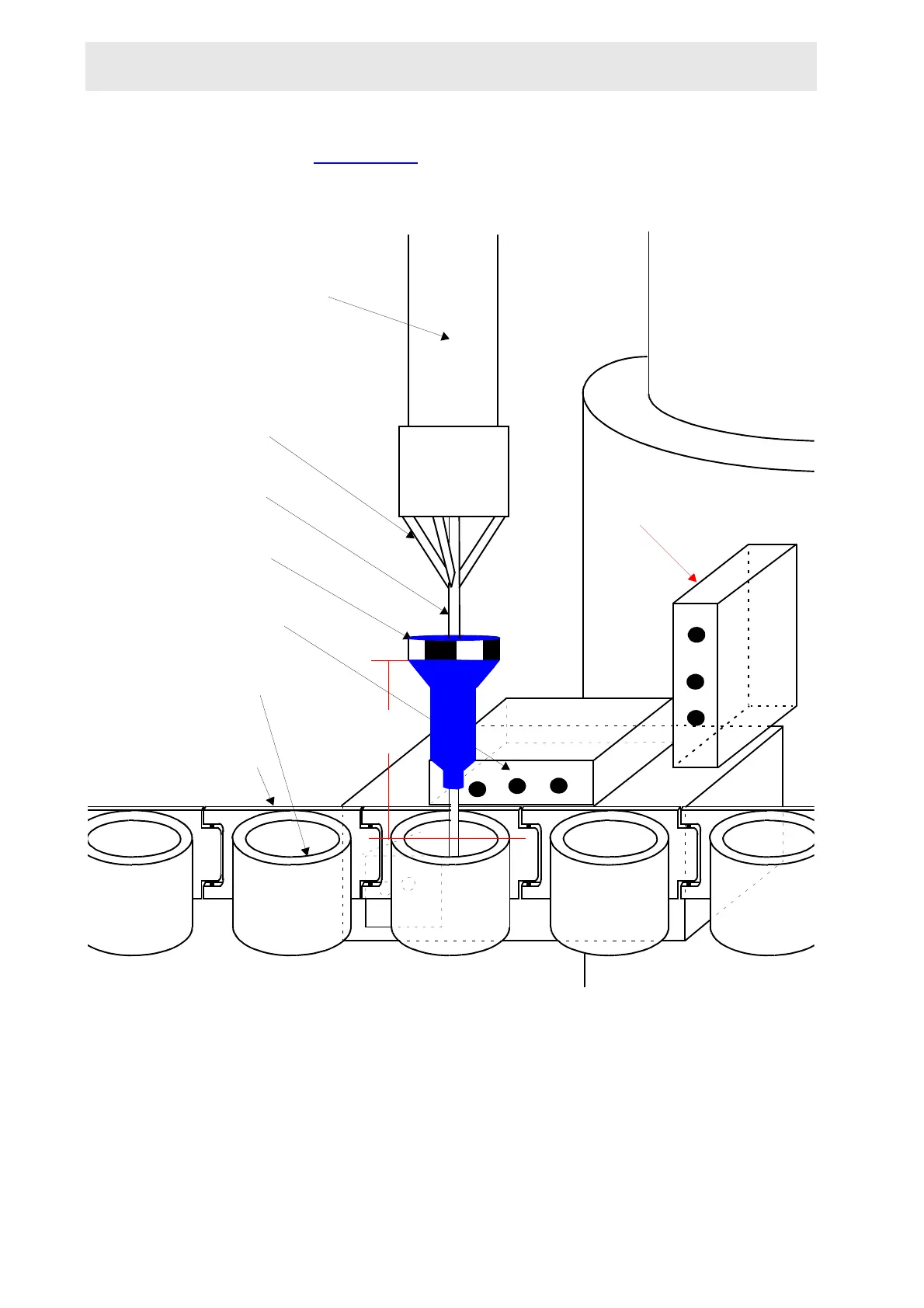

Figure 5.4. Sample in Pincher on Tip of Magazine Belt
Now move the sample to just over the light barrier cylinder:
Arm outwards. (ARSH)
Arm down slowly. (ARV)
The sample should be just over the light barrier cylinder, but probably not cen-
tered.
COLUMN
VERTICAL CYLINDER
PINCHER
SAMPLE
SPINNER
SAMPLE HOLDER
5 mm
B-ACS 120
ONLY
MAGAZINE BELT
LIGHT BARRIER
(AT THE MAGAZINE)
