3-8 2002 Buell P3: Engine
HOME
10. See Figure 3-3. Loosen and remove front isolator mount
bolt, spacer, snubber and locknut.
11. For top end service loosen, but do not remove lower front
tie bar bolts at engine and frame.
12. For engine removal, loosen and remove lower front tie
bar from engine.
13. See Figure 3-4. Remove top rear tie bar at frame.

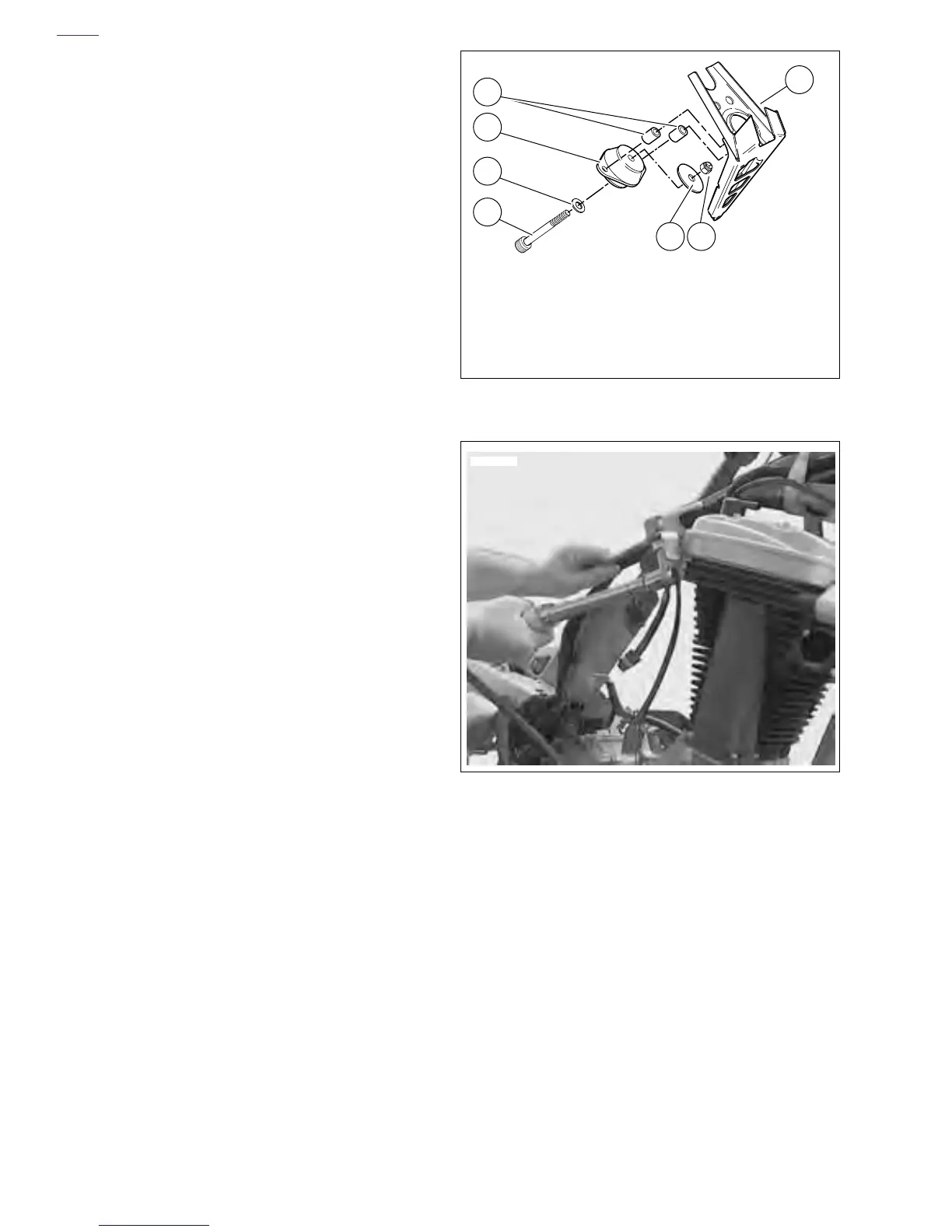

Figure 3-3. Front Isolator Mount
Figure 3-4. Remove Top Rear Tie Bar
1. Frame
2. Locknut
3. Snubber
4. Bolt
5. Spacer
6. Front Isolator
7. Standoff
1
a0162x6x
23
4
5
6
7
