14. See Figure 3-5. Remove entire air cleaner and carbure-
tor as an assembly.
a. Remove screws on both air cleaner brackets.
b. See Figure 3-6. Loosen hose clamp.
c. See Figure 3-7. Remove crankcase breather hose.
d. See Figure 3-8. Disconnect auto enrichener plug.
e. See Figure 3-8. Place air cleaner and carburetor as
an assembly on top of frame.
NOTES:
●
See 4.3 AIR CLEANER for more details about the
air cleaner.
●
See 3.5 CYLINDER HEAD. The steps mentioned
previously complete disassembly preparation for top
end servicing. You may now proceed with TOP END
DISASSEMLY PROCEDURES.
●
If continuing engine removal proceed to step 16.

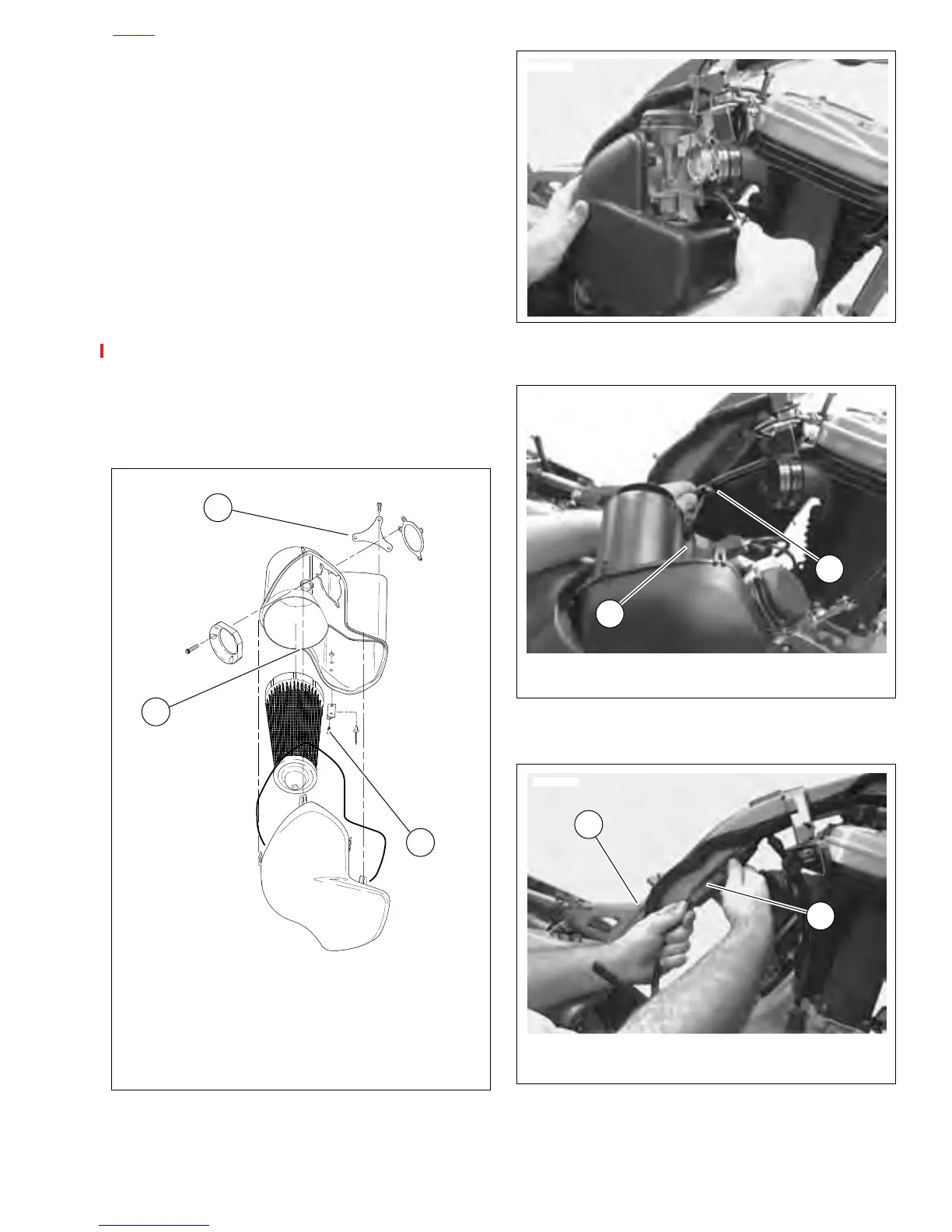

Figure 3-5. Air Cleaner Assembly
1
2
a0074x3x
1. Air cleaner bracket (left front)
2. Air cleaner bracket (right rear)
3. Air cleaner screw
3
Figure 3-6. Hose Clamp
Figure 3-7. Crankcase Breather Hose
Figure 3-8. Auto Enrichener Plug
7648
7649
1. Breather Hose
2. Three-way Connector
1
2
1. Auto enrichener plug
2. Frame
2
1
7631
