27. See Figure 3-13. Disconnect feed, return, transmission
and crankcase vent lines.
28. See Figure 3-14. Remove rear motor mount bolts.
29. Remove chassis from engine by performing the steps
below.
a. Lower chassis.
b. Disconnect hoist from chassis.
c. Lower lift.
d. See Figure 3-15. Lift chassis and roll away from
engine.

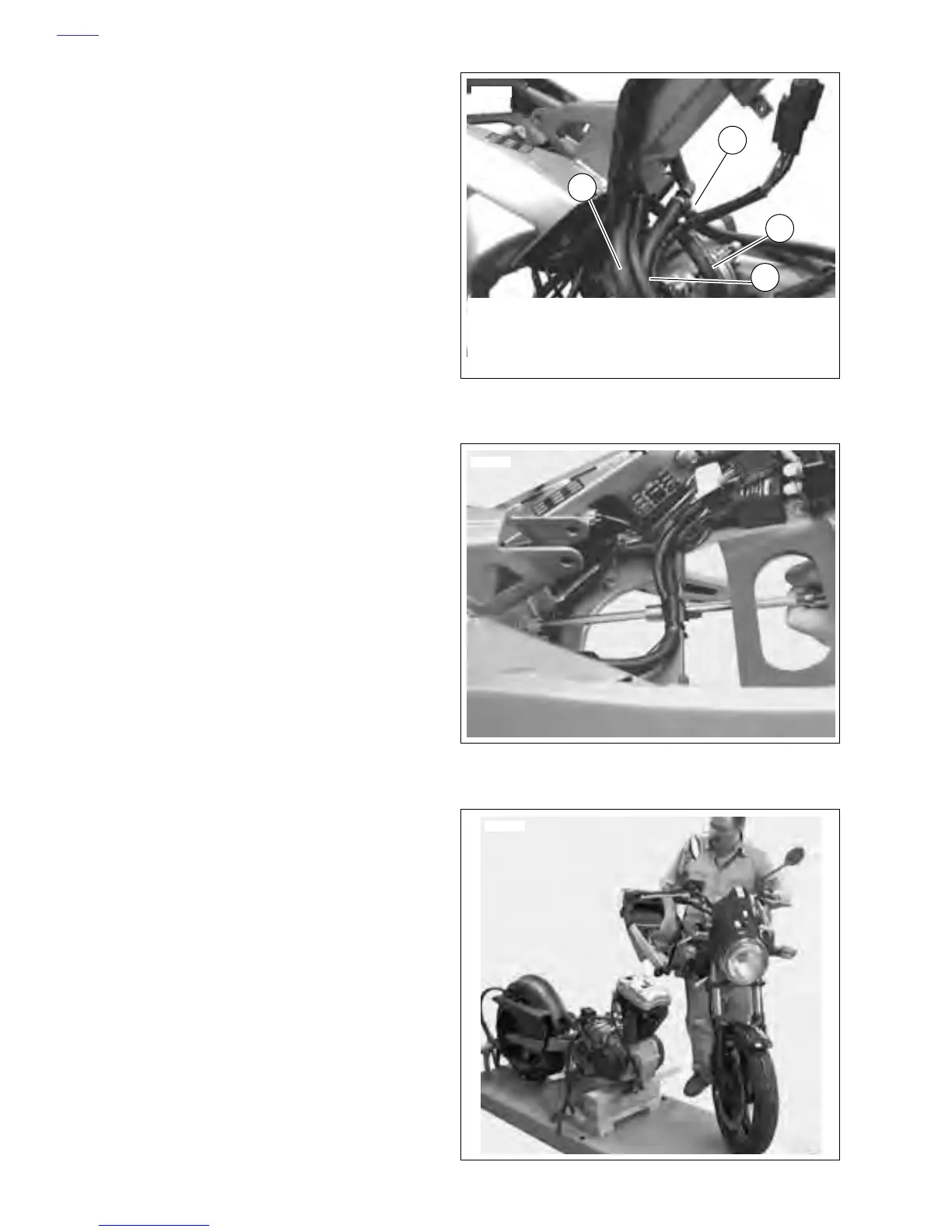

Figure 3-13. Disconnect Lines
Figure 3-14. Removing Rear Motor Mount Bolts
Figure 3-15. Move Chassis From Engine
7634
1. Oil Return
2. Transmission Vent
3. Crankcase Vent
4. Oil Feed
4
2
1
3
7623
7651
