3-20 2002 Buell P3: Engine
HOME
20. See Figure 3-34. Connect auto enrichener plug.
21. See Figure 3-36. Install entire air cleaner assembly. See
4.3 AIR CLEANER.
c. See Figure 3-35. Connect crankcase breather hose
to three-way connector.
d. See Figure 3-37.Install hose clamp.
e. See Figure 3-36. Install and tighten screws on both
air cleaner brackets.
f. Install screw on air cleaner cover.
NOTE
See 4.3 AIR CLEANER for more details on the air cleaner.

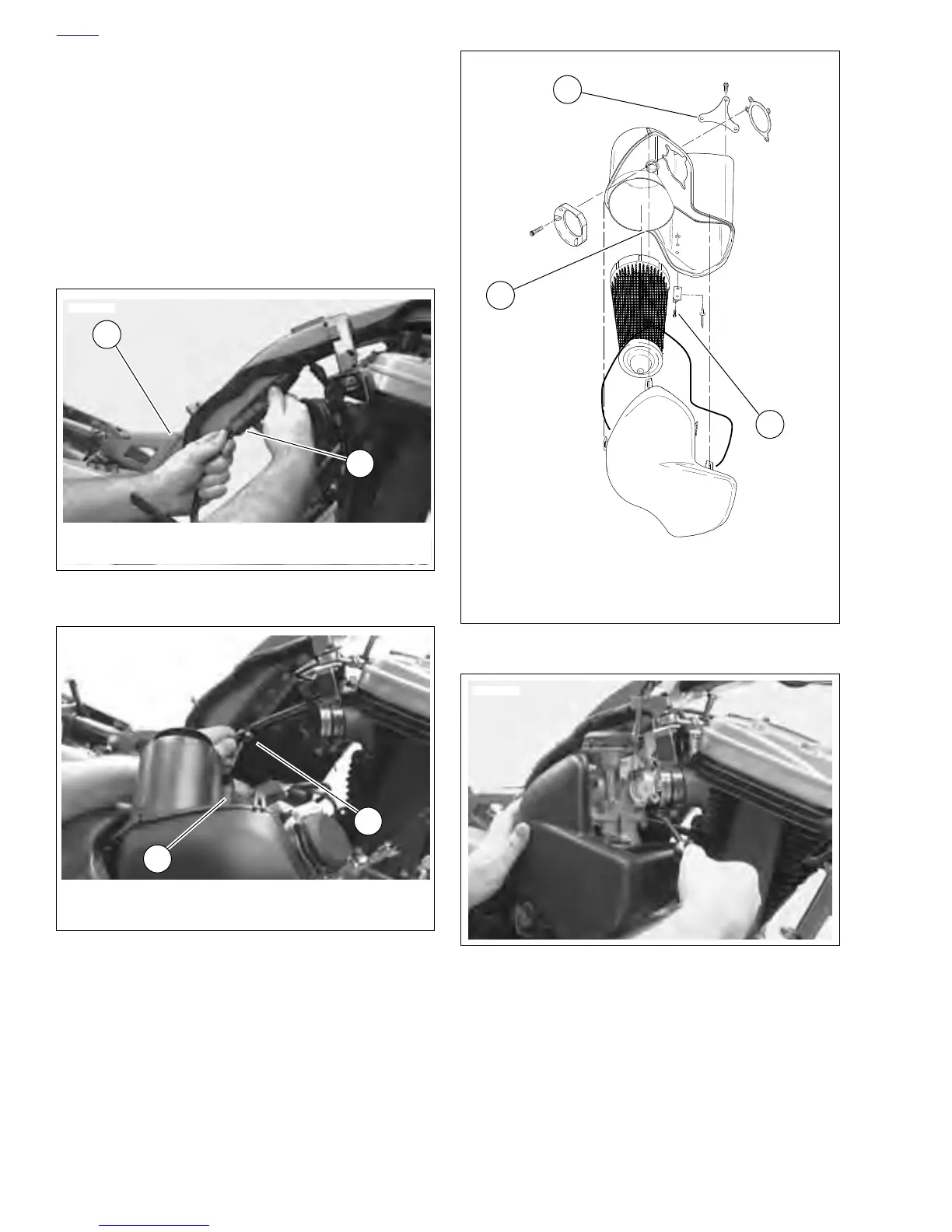

Figure 3-34. Auto Enrichener Plug
Figure 3-35. Crankcase Breather Hose
1. Auto Enrichener Plug
2. Frame
2
1
7631
7649
1. Breather Hose
2. Three-way Connector
1
2
Figure 3-36. Air Cleaner Assembly
Figure 3-37. Hose Clamp
1. Air Cleaner Bracket (left front)
2. Air Cleaner Bracket (right rear)
3. Air Cleaner Screw
1
2
a0074x3x
3
7648
