2002 Buell P3: Engine 3-57
HOME

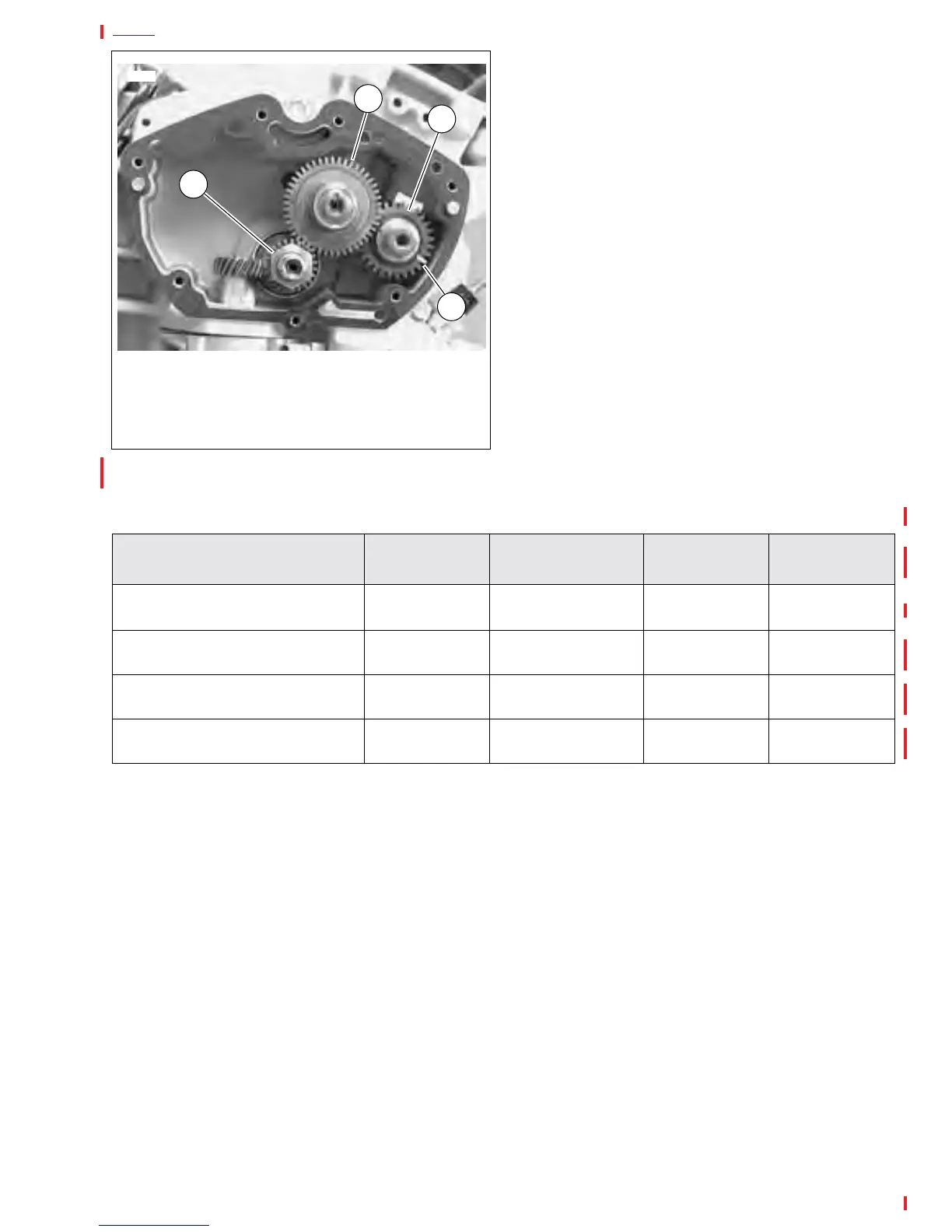

Figure 3-101. Cam and Pinion Gear Color Code Location
and Timing Mark Indexing
1. Exhaust Cam Gear (1W)
2. Intake Cam Gear (2W)
3. Pinion Gear
4. Color Code
1
2
3
4
7687
Table 3-12. Cam and Pinion Gear Color Code and Diameter
GEAR NO. & POSITION
2
INBOARD
2
OUTBOARD
1 3
COLOR CODE
(1 paint dot)
Intake Intake Exhaust Pinion
RED 1.9025-1.9029
(48.323-48.333)
1.9025-1.9029
(48.323-48.333)
WHITE 1.9020-1.9024
(48.310-48.321)
1.9020-1.9024
(48.310-48.321)
GREEN 1.9015-1.9019
(48.298-48.308)
1.9015-1.9019
(48.298-48.308)
