Buell 2002 P3 - Page 214

2002 Buell P3: Engine 3-67
HOME
TIMKIN BEARING REMOVER (Part No. HD-44404) and
BEARING RACE REMOVER/INSTALLER (Part No. HD-
34902B).
12. See Figure 3-119. Use CRANKSHAFT BEARING TOOL
(Part No. HD-94547-101) to remove sprocket shaft outer
races.
13. See Figure 3-120. To remove pinion shaft inner race, use
WEDGE ATTACHMENT for CLAW PULLER (Part No.
HD-95637-46A) with BEARING RACE REMOVER/
INSTALLER (Part No. HD-34902B) and END CAP (Part
No. HD-34902-7). Apply heat to race to aid removal.
Four sizes of pinion bearings are available. Pinion bear-
ing selection at the factory, during engine rebuild, or
replacement of crankcase set or flywheel assembly is
based on the largest measured outside diameter (OD) of
the inner race and the smallest measured inside diame-
ter (ID) of the outer race (crankcase bushing). A running
clearance of 0.0002-0.0008 in. (0.0051-0.0203 mm) is
established during crankcase set or flywheel assembly
replacement and engine rebuild.

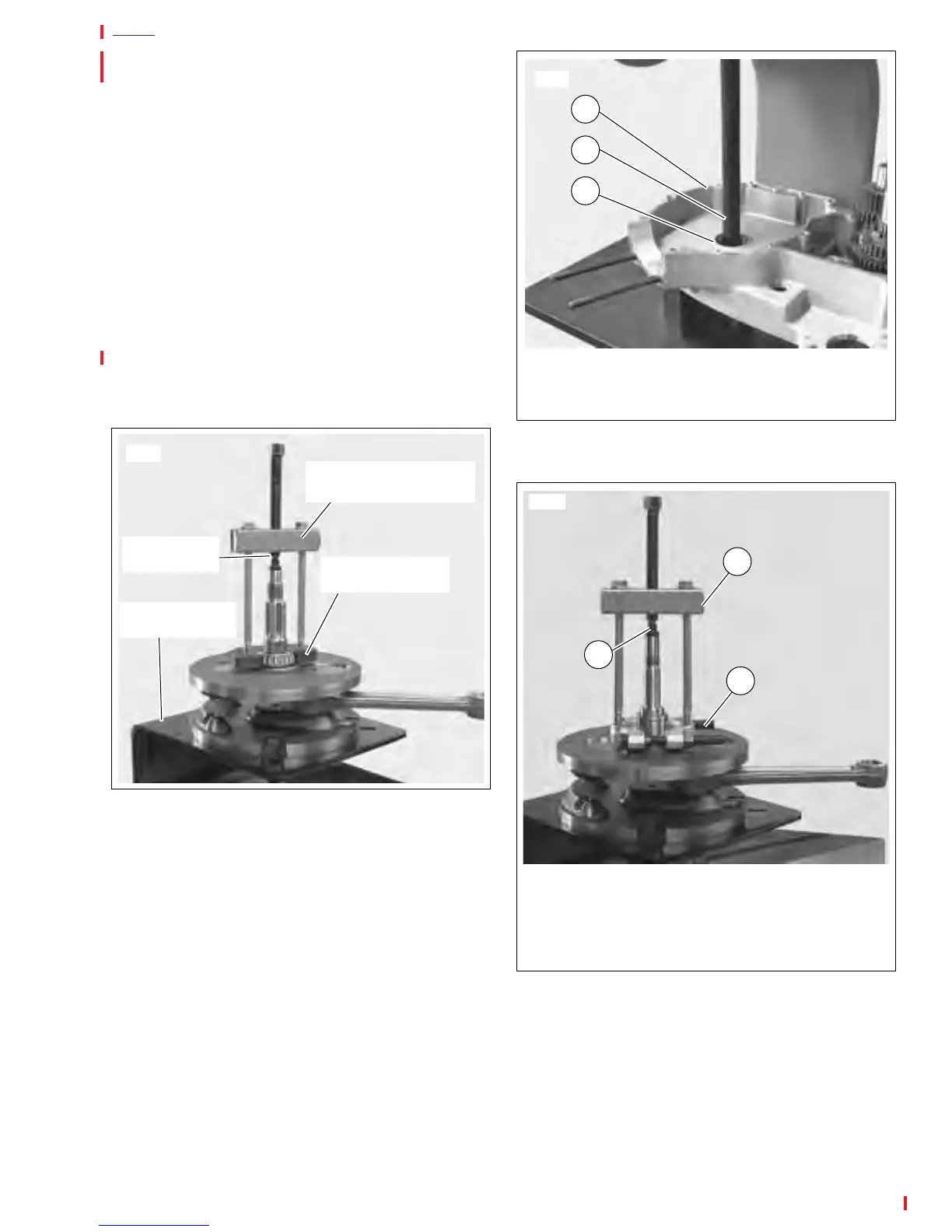

Figure 3-118. Removing Sprocket Shaft Roller Bearing
7671
Bearing Race Remover/
Installer (HD-34902B)
Bearing Remover
(HD-44404)
Flywheel Fixture
(HD-44385)
End Cap
(HD-34902-7)
Figure 3-119. Sprocket Outer Shaft Race Removal
Figure 3-120. Pulling Pinion Shaft Inner Race
1. Left Crankcase Half
2. Universal Driver (Part No. HD-33416)
3. Crankshaft Bearing Tool (Part No. HD-94547-101)
1
2
3
7709
1. Bearing Race Remover/Installer (Part no. HD-
34902B
2. End Cap (Part No. HD-34902-7)
3. Wedge Attachment for Claw Puller (Part No. HD-
95637-46A)
1
7671
3
2
