5-18 2002 Buell P3: Electric Starter
HOME
INSTALLATION
1. Install starter and starter gasket from the right side.
2. See Figure 5-28. Connect wiring to starter.
a. Connect solenoid wire (3).
b. Attach positive battery cable ring terminal (2).
c. Install nut with washer (1) (metric). Tighten to 80-
100 in-lbs (9-11 Nm).
d. Replace protective boot.
3. See Figure 5-29. Install both starter mounting bolts and
washers. Tighten to 13-20 ft-lbs (18-27 Nm).
4. Position oil hoses in clamp and install clamp to through
bolt with new locknut. Make sure hoses are not kinked or
restricted.
5. Install primary cover. See 6.2 PRIMARY CHAIN.
6. Fill transmission to proper level with fresh lubricant. See
1.10 TRANSMISSION/PRIMARY FLUID.
7. Install left side footrest support assembly. See 2.21
FOOTPEGS AND FOOTPEG SUPPORT BRACKETS.
8. Install air cleaner. See 4.3 AIR CLEANER.
1WARNING1WARNING
Always connect positive battery cable first. If the positive
cable should contact ground with the negative cable
installed, the resulting sparks could cause a battery
explosion which could result in death or serious injury.
9. Connect battery cables, positive cable first. TIghten ter-
minal hardware to 60-96 in-lbs (7-11 Nm).
10. Install seat. See 2.28 SEAT.

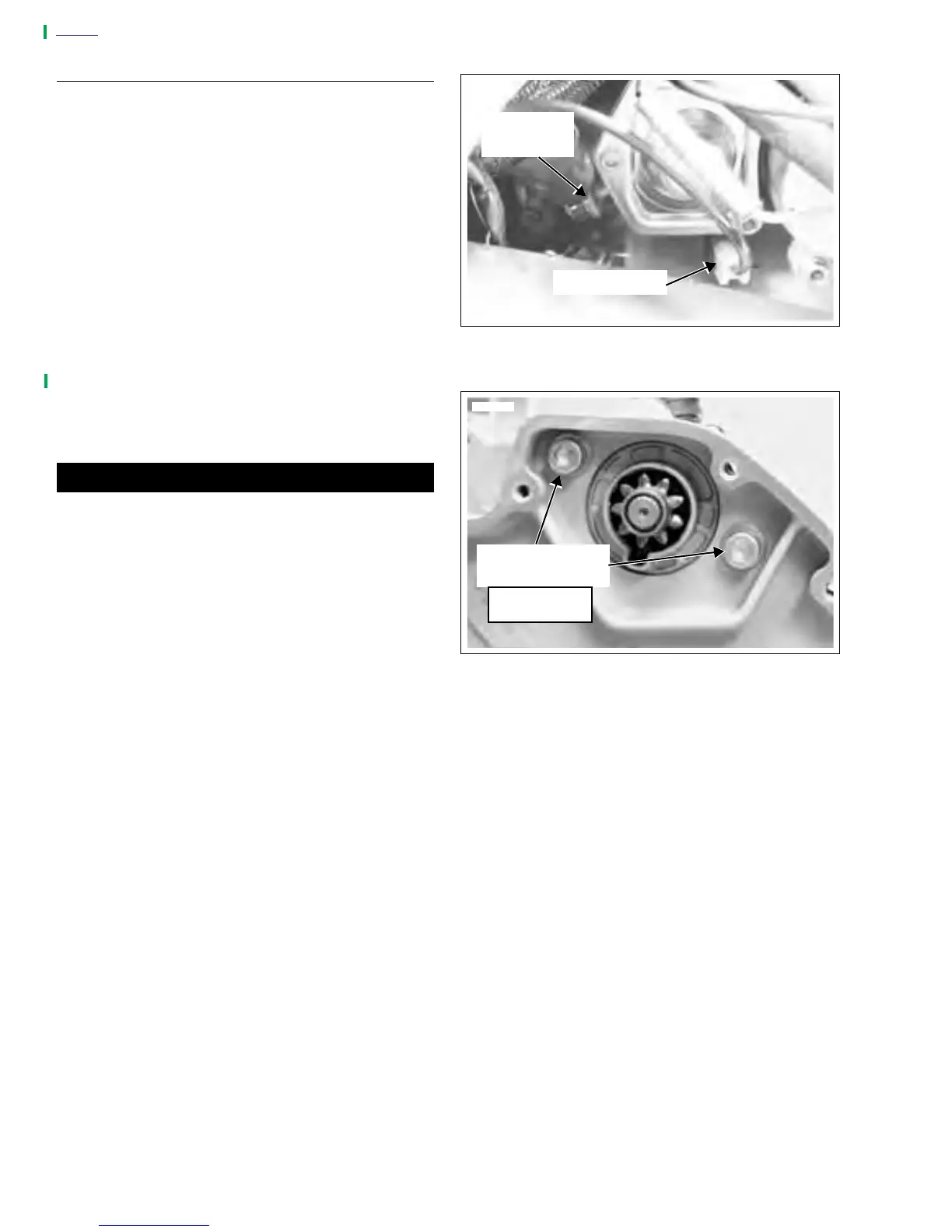

Figure 5-28. Starter Wires
Figure 5-29. Starter Mounting (Primary Side)
7768
Connector [128]
Positive
Battery Ring
Terminal
7766
Starter Mounting
Bolts and Washers
13-20 ft-lbs
(17.6-27.1 Nm)
