6-26 2002 Buell P3: Drive/Transmission
HOME
DISASSEMBLY
NOTE
As the transmission runs, each part develops a certain wear
pattern and a kind of “set” with its mating parts. For this rea-
son, it is important that each component be reinstalled in its
original location and facing its original direction.

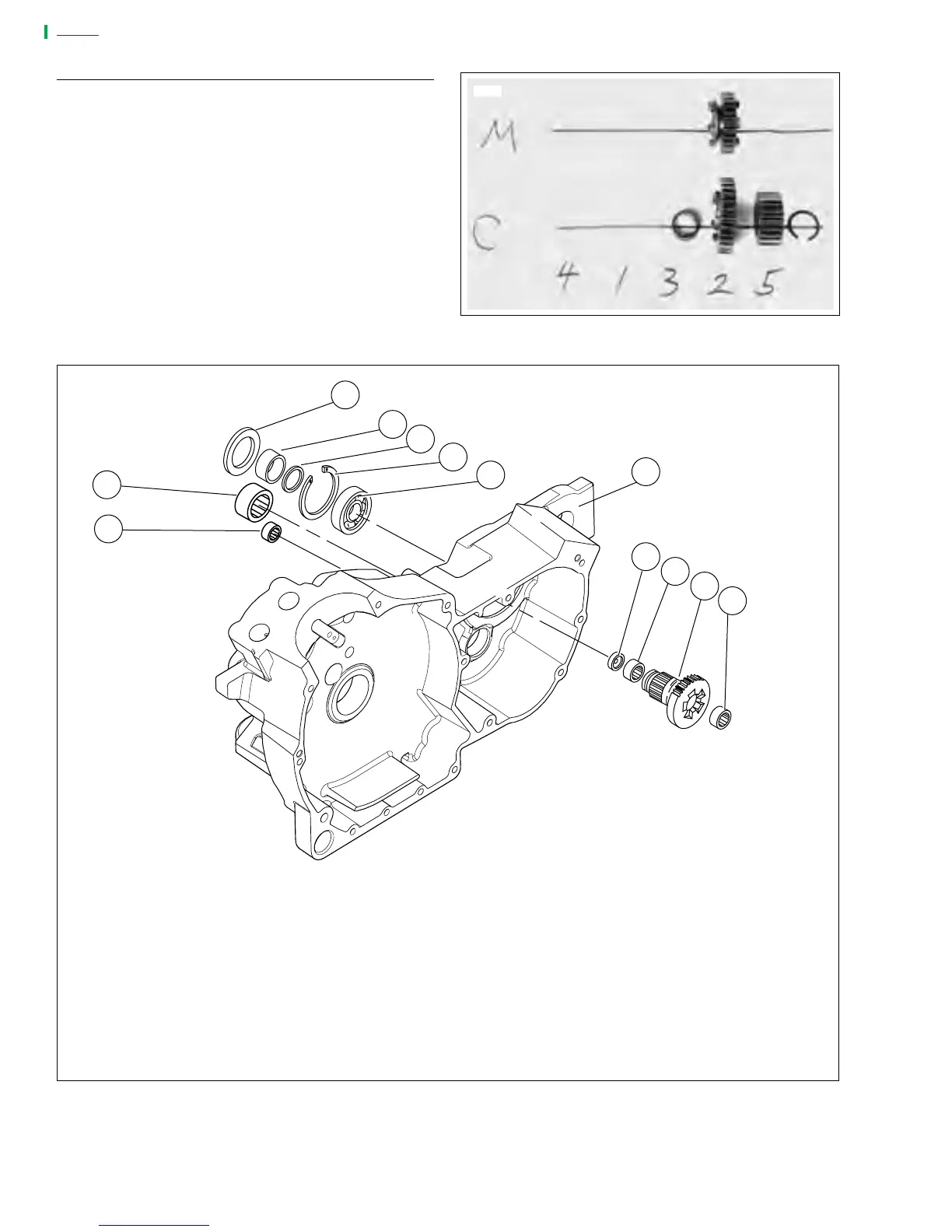

1. See Figure 6-39. As each component is removed, place
it on a clean surface in the exact order of removal.
Figure 6-39.
3559
Figure 6-40. Transmission Assembly Right Crankcase Half
1. Bearing (Inner)
2. Fifth Gear Mainshaft
3. Bearing (Outer)
4. Oil Seal
5. Right Crankcase Half
6. Ball Bearing
7. Retaining Ring
8. Quad Seal
9. Spacer
10. Oil Seal
11. Bearing (closed end) Shifter Drum
12. Bearing (closed end) Countershaft
a0127x6x
5
9
8
7
6
4
3
2
1
10
11
12
